Polar 30 Single Glazed Office Partitioning

Komfort Brochure Download
Technical Downloads

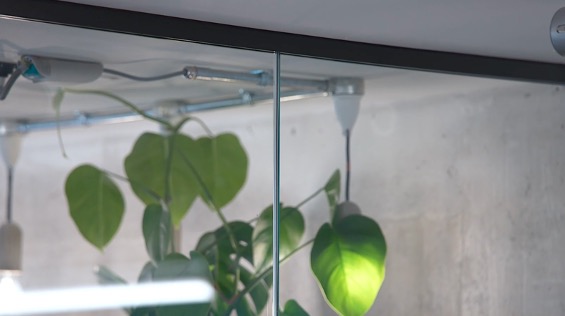

Polar 30 is Komfort’s slim 30mm wide single glazed office partitioning system. Available in either straight lines or faceted, this system can be used with a wide range of flexible glass configurations to enhance any design. The frameless bubble jointed glazing and slim trackwork creates the appearance of floating glass, allowing an abundance of light to fill the space to naturally brighten any room.

For any busy office environment, this partitioning system allows designers to get imaginative with space by creating private meeting rooms, boardrooms, quiet areas and so on. Increase flexibility and create the perfect working environment with Polar 30.


Achieving up to 40dB (Rw), Polar 30 offers impressive performance credentials with a discreet structure and accommodates up to 14.8mm glass. This single glazed office partition system can be integrated with a stud partition with Komfire 75 and 100 wrap around reducers, wrap around door frame and head detail or a 100mm drywall tape and joint adaptor for a seamless finish.

Polar 30 is also compatible with Komfort’s Sonik, single glazed and timber door options. There is also an optional deflection head channel with a built-in tolerance of +/-25mm available. Kross Glaze applied bars can create an industrial appearance to suit the desired aesthetics. In addition, all aluminium components are powder coated using our standard colour options with special colour options available in any RAL or BS colour code.

Download our Polar 30 Design Guide for more information.

0dB (Rw)
Acoustic rating
Maximum height
Maximum module width

Polar 30 Glass Partitioning at a Glance

Technical Downloads

Height – up to 3000mm

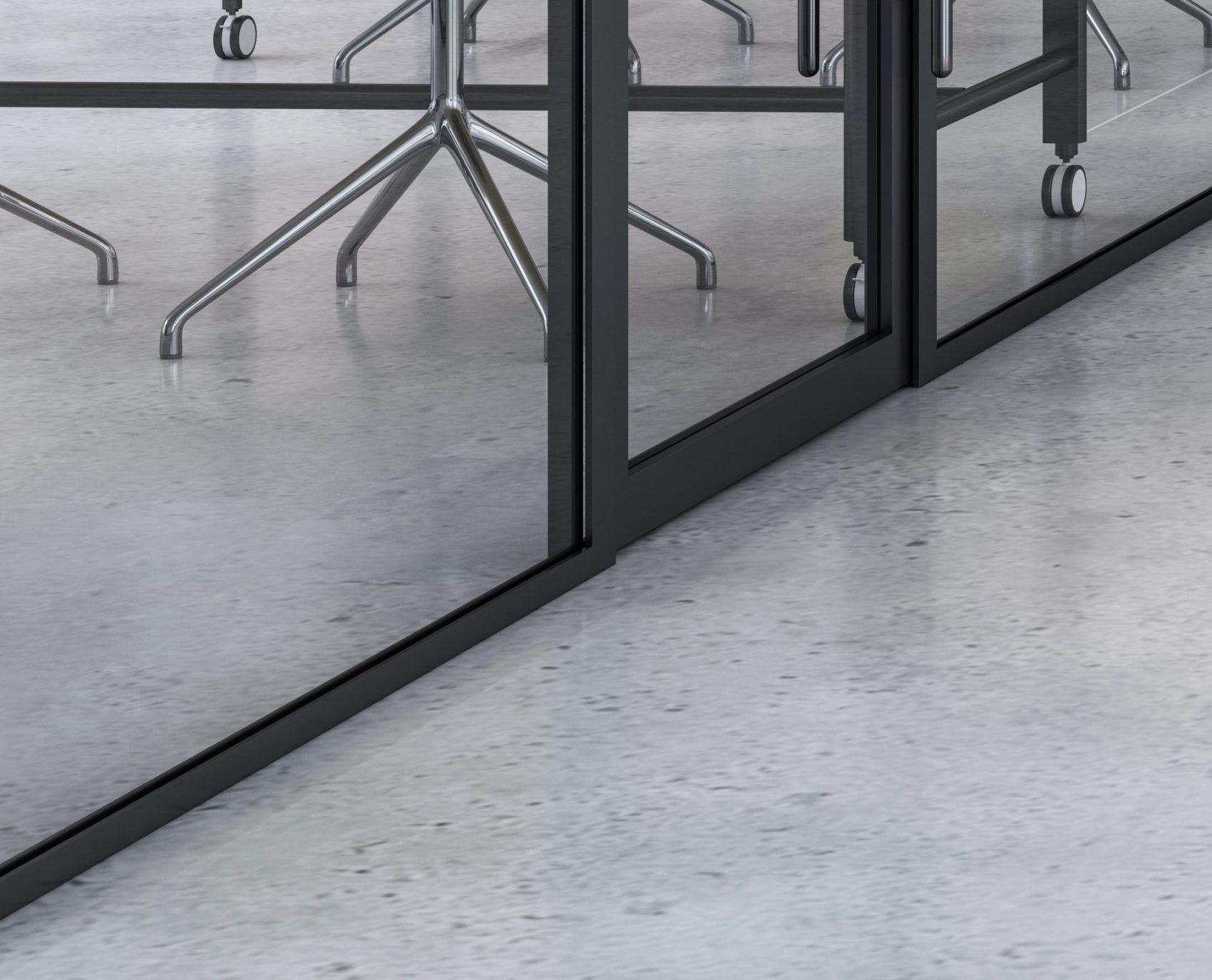

Track width – 30mm
Track height – 32mm

Fire ratings:

Up to 40dB (Rw)

Up to BS 6180 – 0.74kN /BS 5234 – Severe Duty

Deflection head:

Door options:
Timber doors
Single glazed doors
Sonik doors

Doorframe options:
Aluminium doorframe

Glass type options:
Toughened – 10, 12mm
Toughened Lam. – 13.5mm
Acoustic Lam. – 10.8, 12.8, 14.8mm

(exc. nominal head & base)*:

Toughened glass:
10mm = 25kg/m2
12mm = 30kg/m2

Toughened Lam.:
13.5mm = 34kg/m2

Acoustic lam. glass:
10.8mm = 27kg/m2
12.8mm = 32kg/m2
14.8mm = 37kg/m2

Compatible with:

  • Blinds

  • Manifestations

  • Graphics

  • SwitchGlass

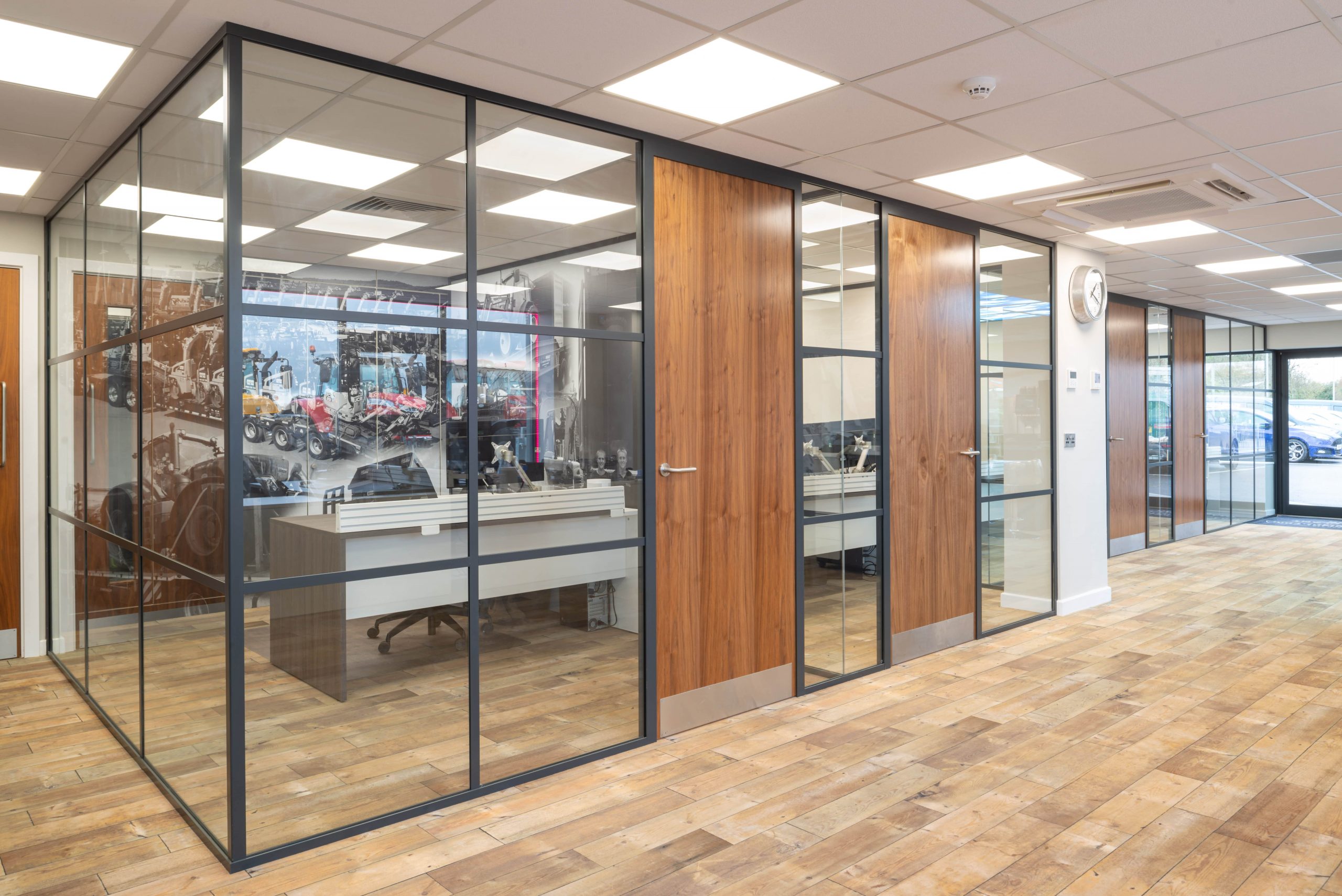

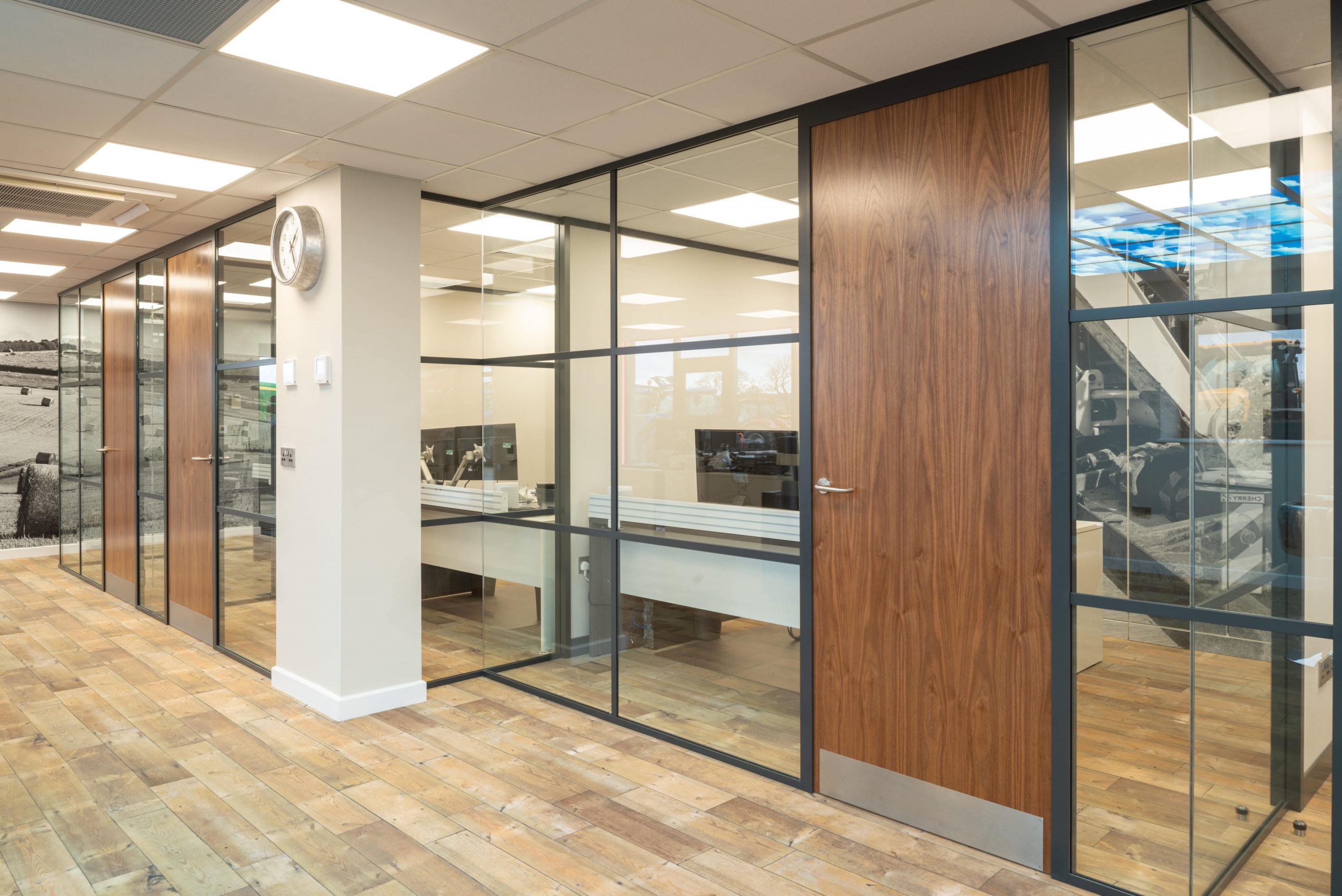

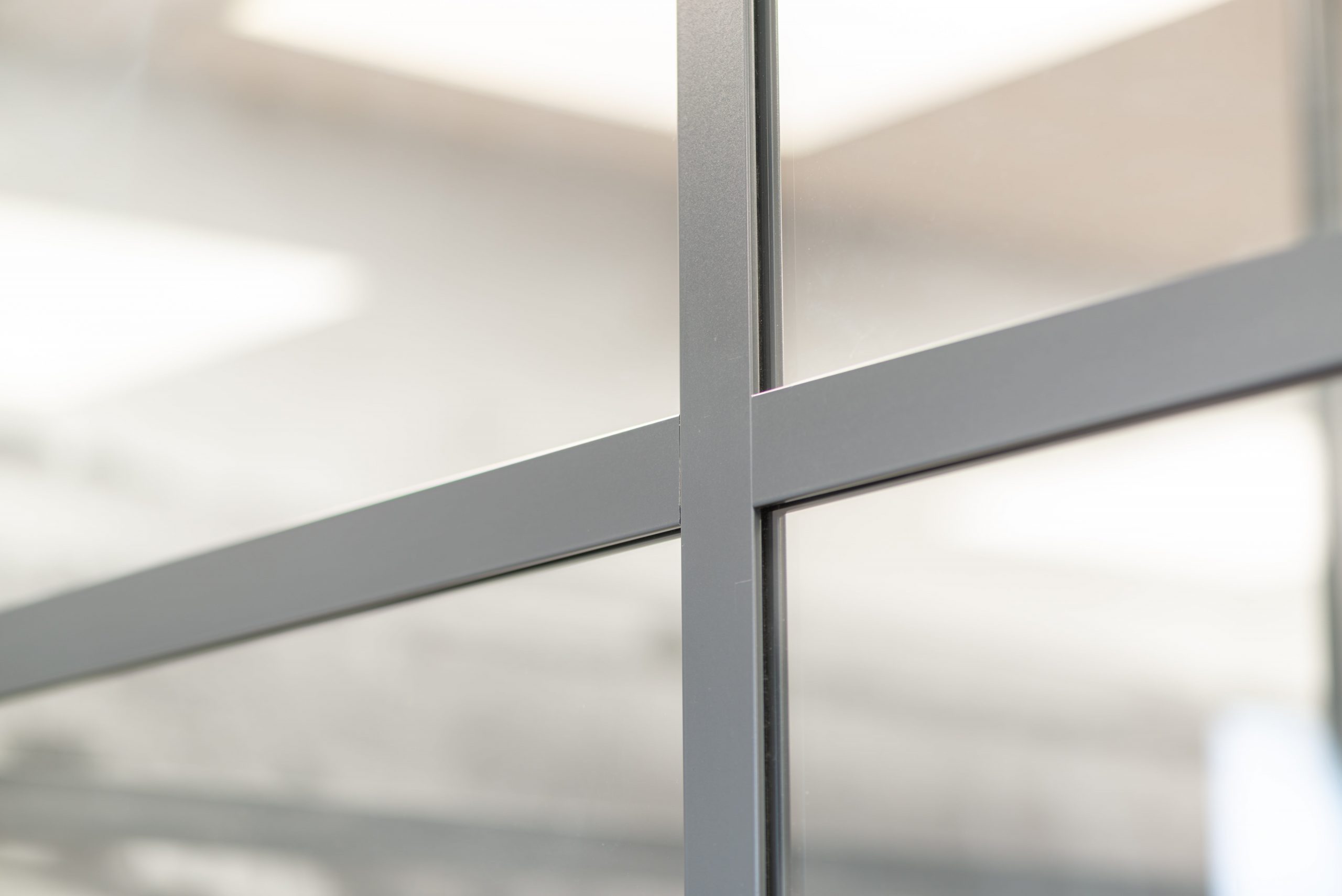

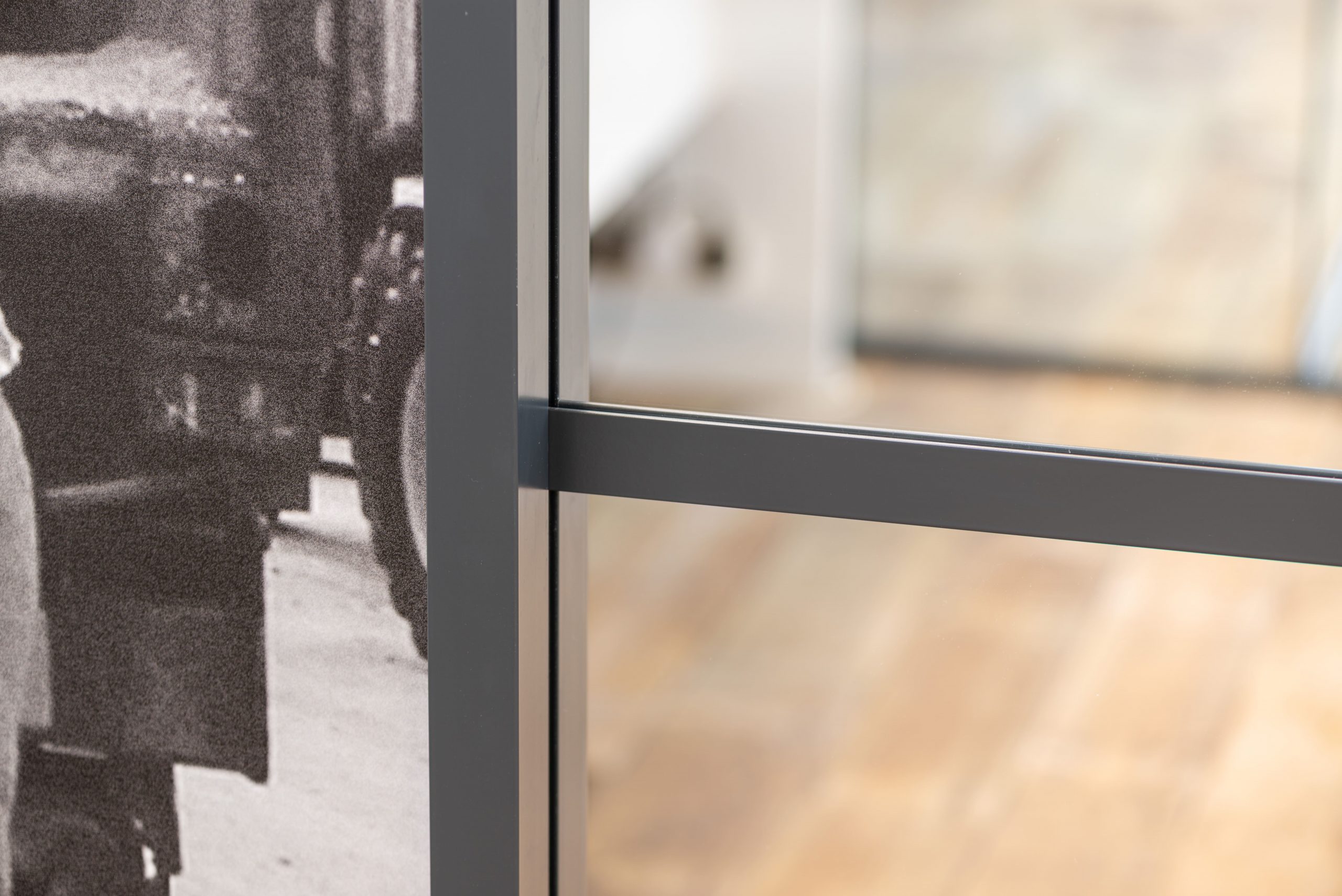

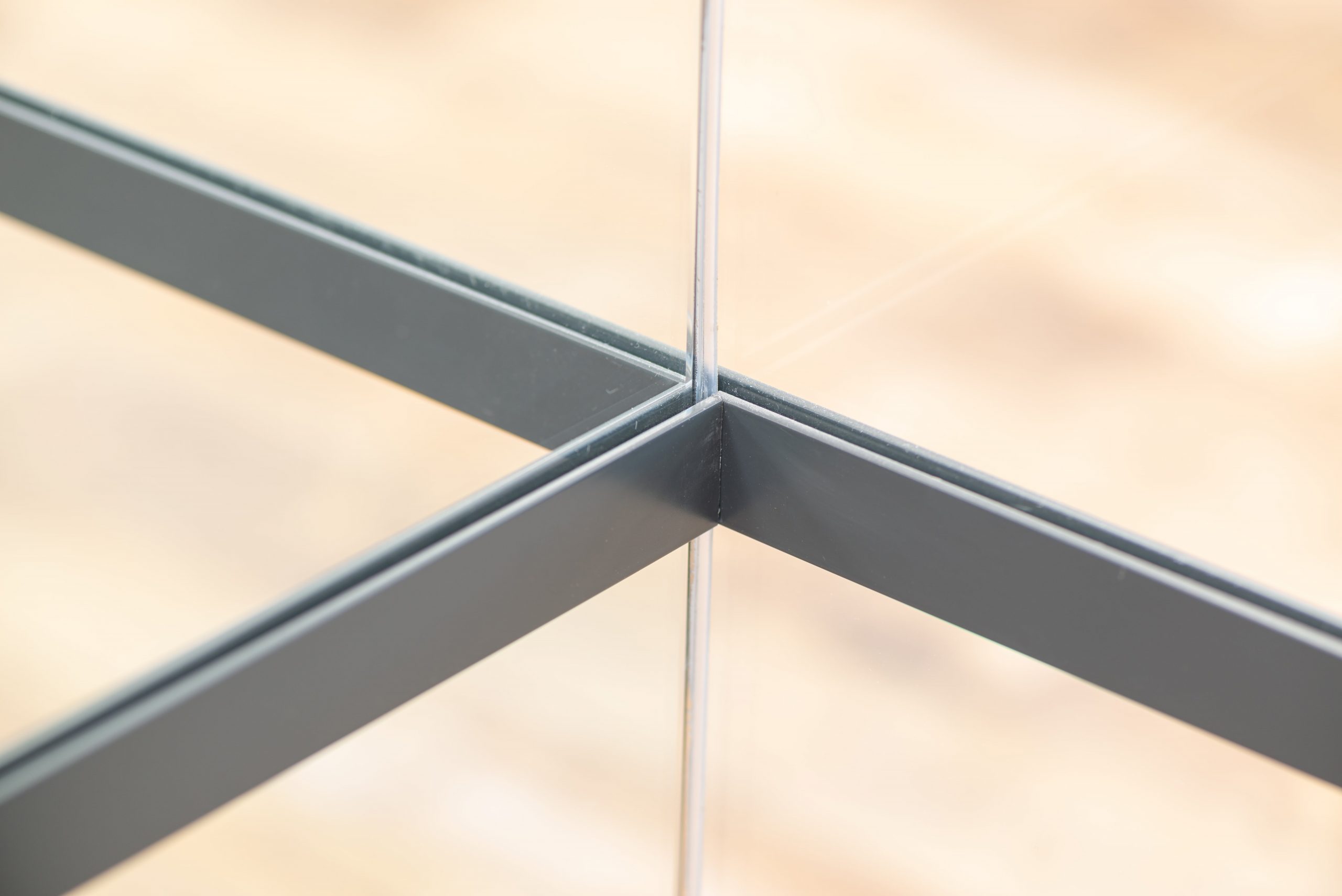

  • Kross Glaze

Paint / finishes:

  • Polyester powder coat

  • Satin anodised aluminium

  • Special anodised finish

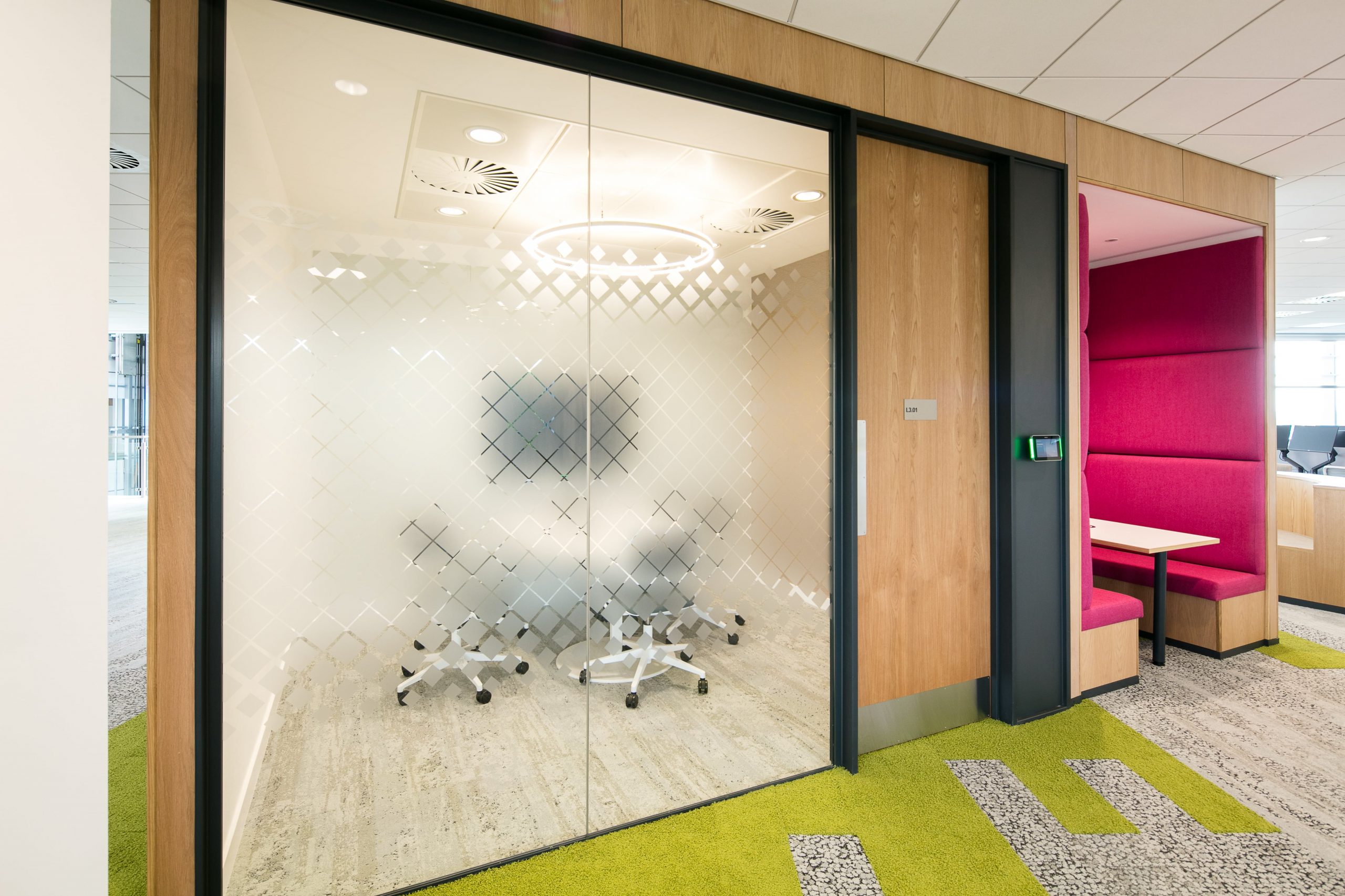

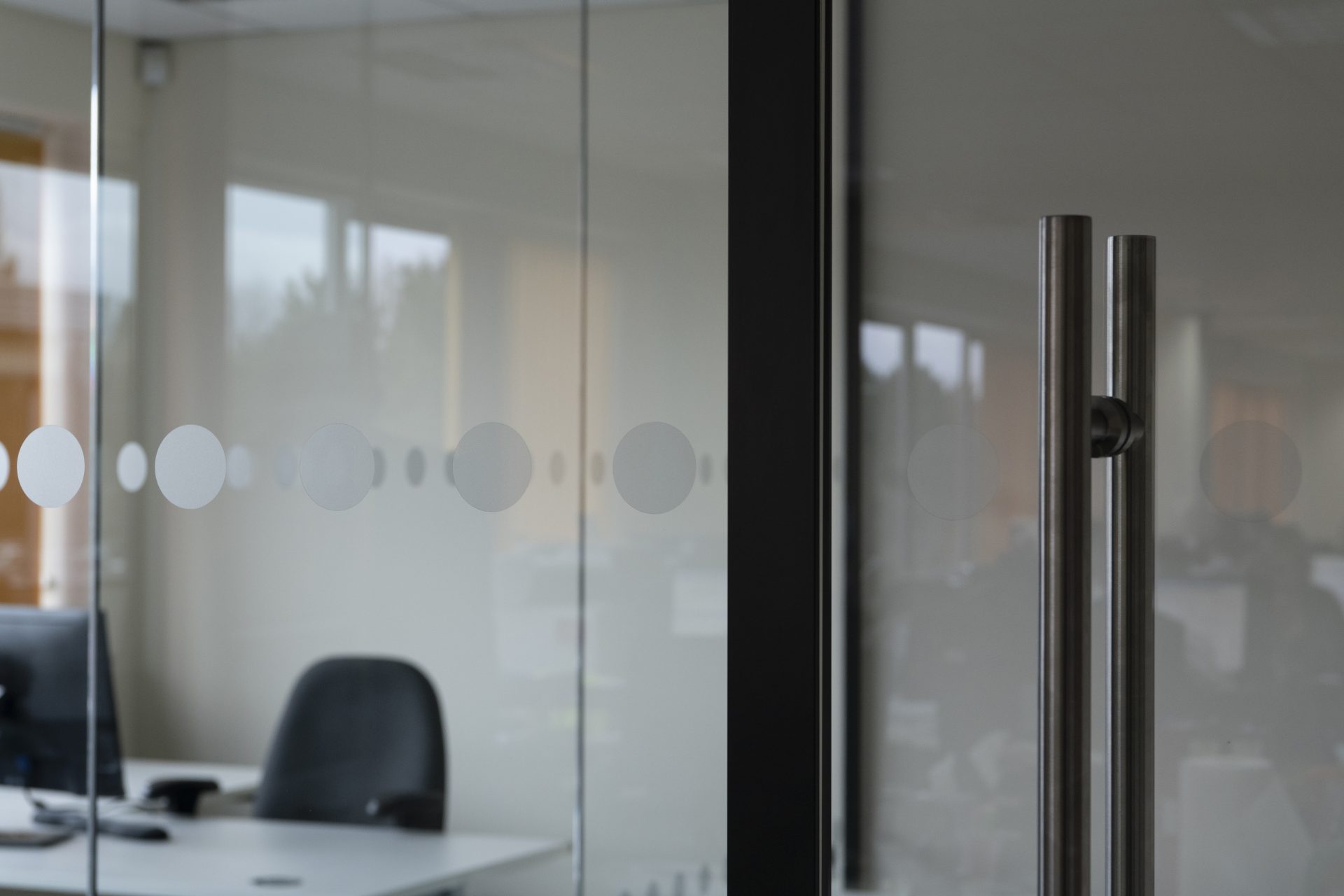

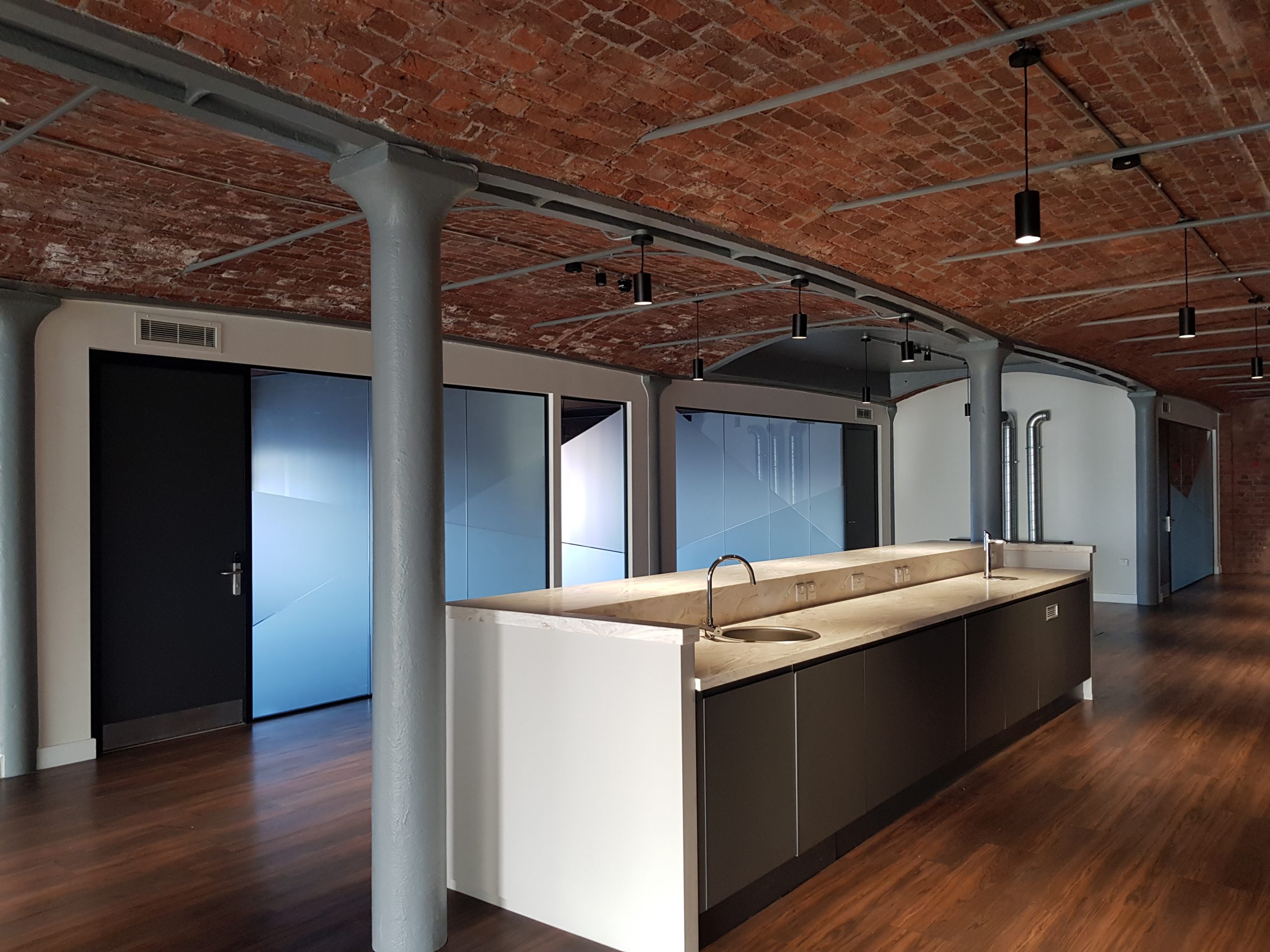

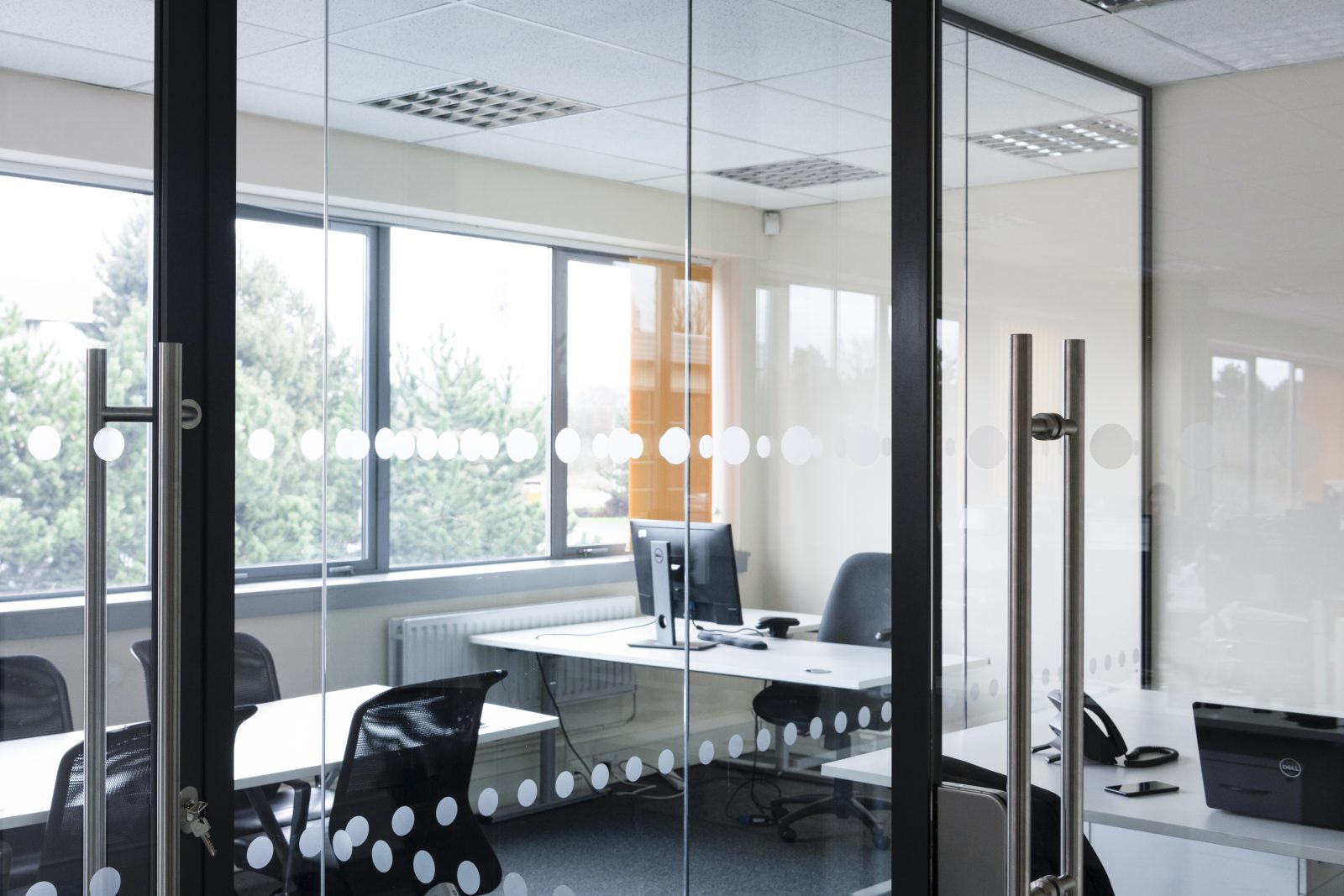

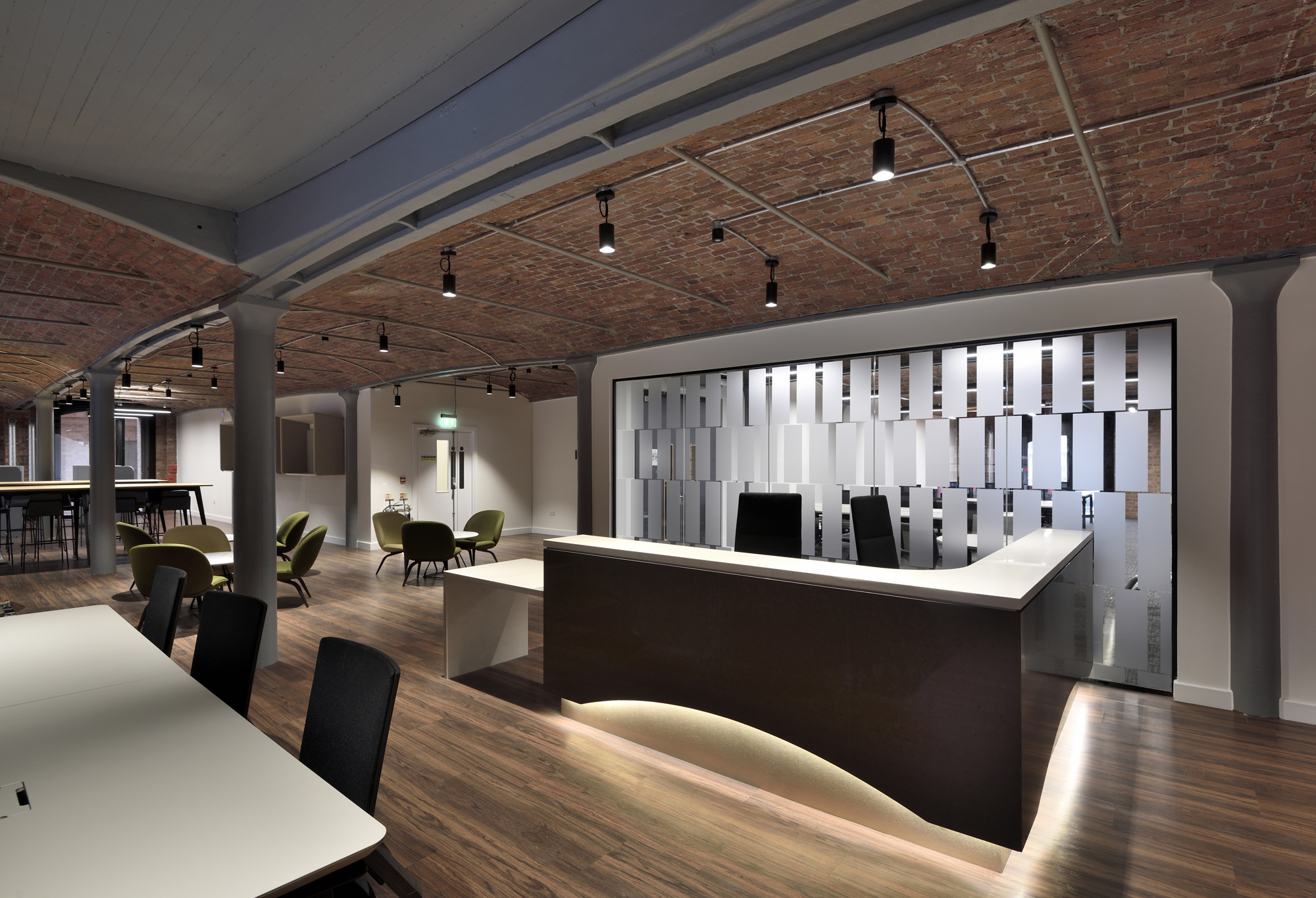

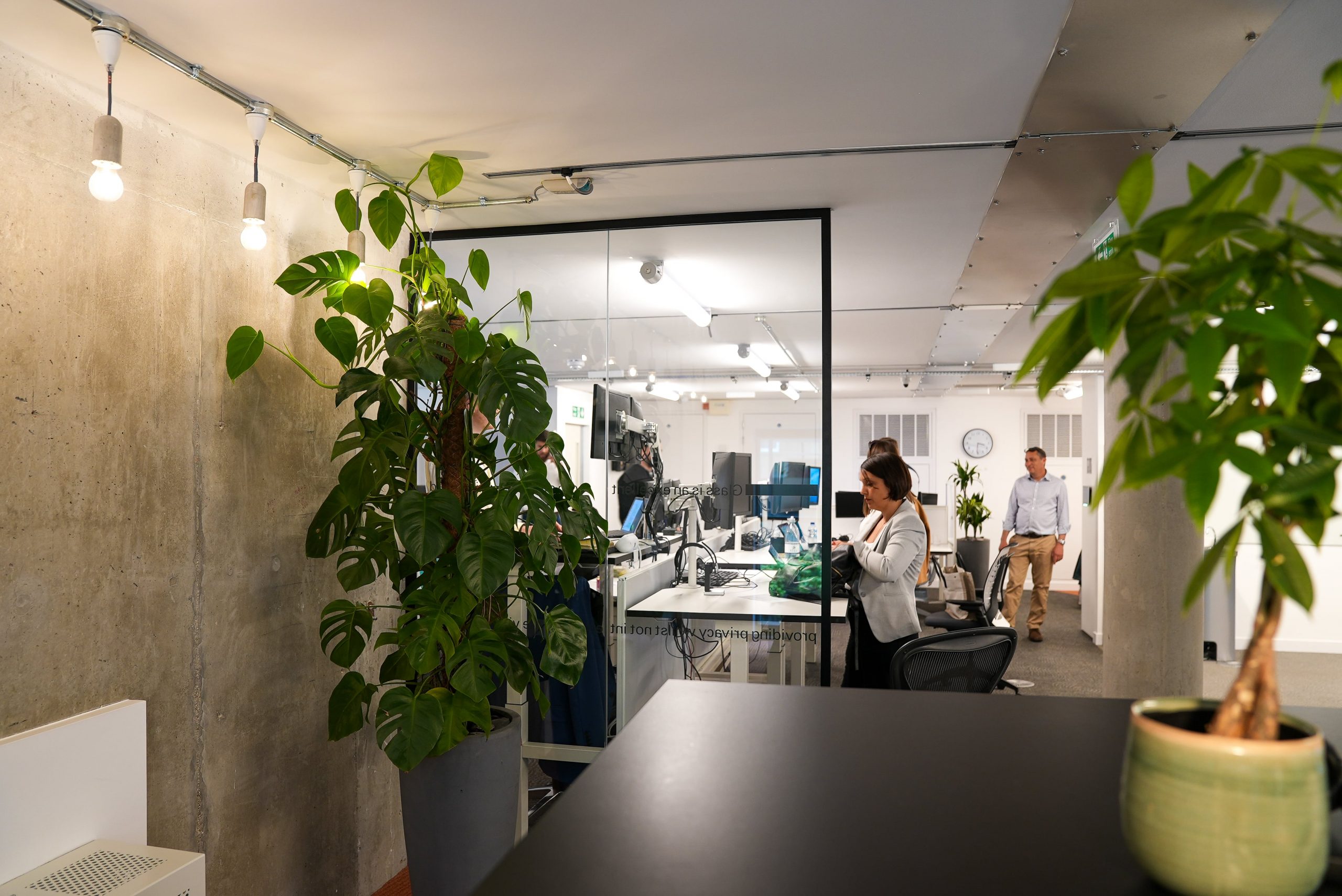

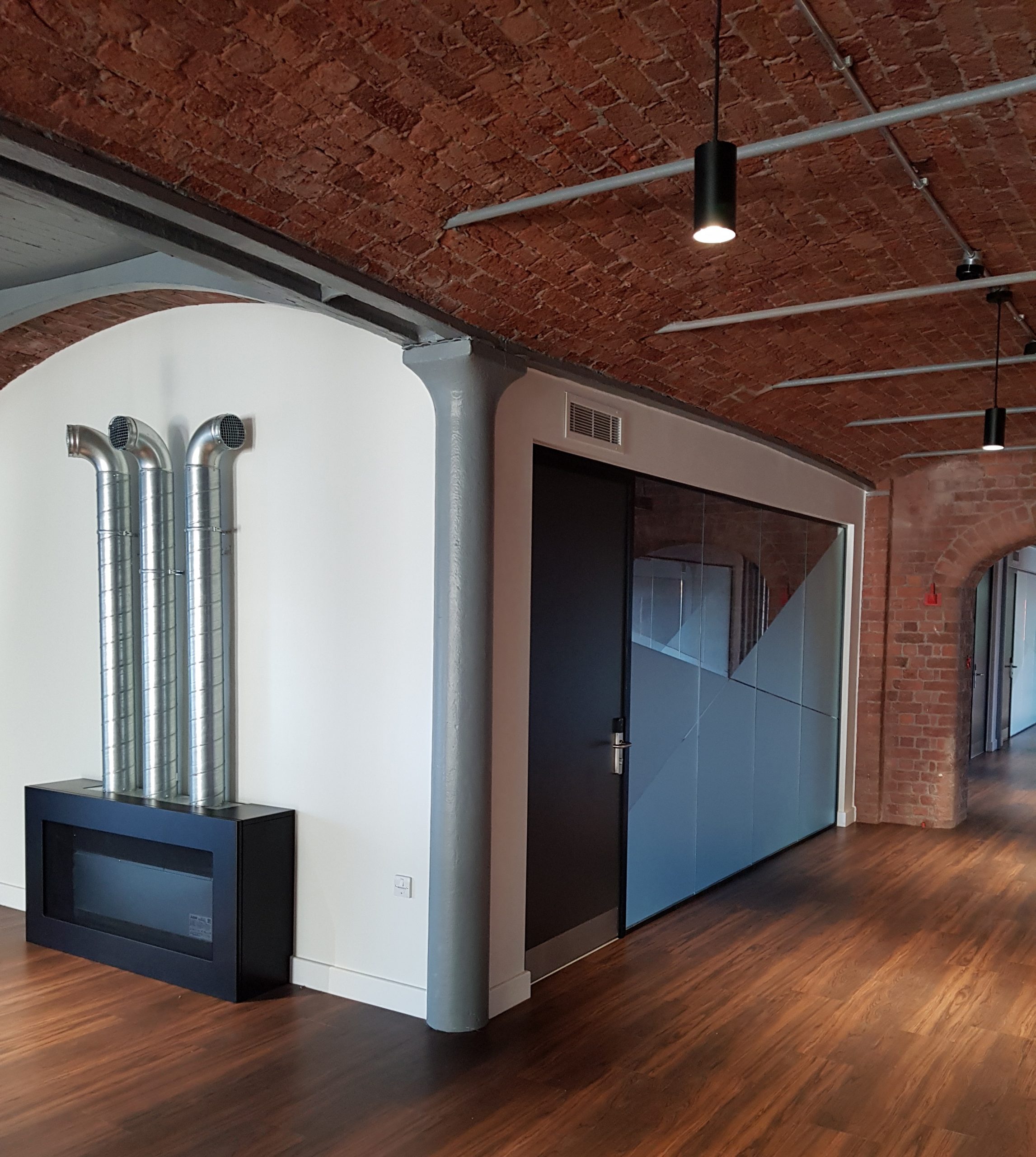

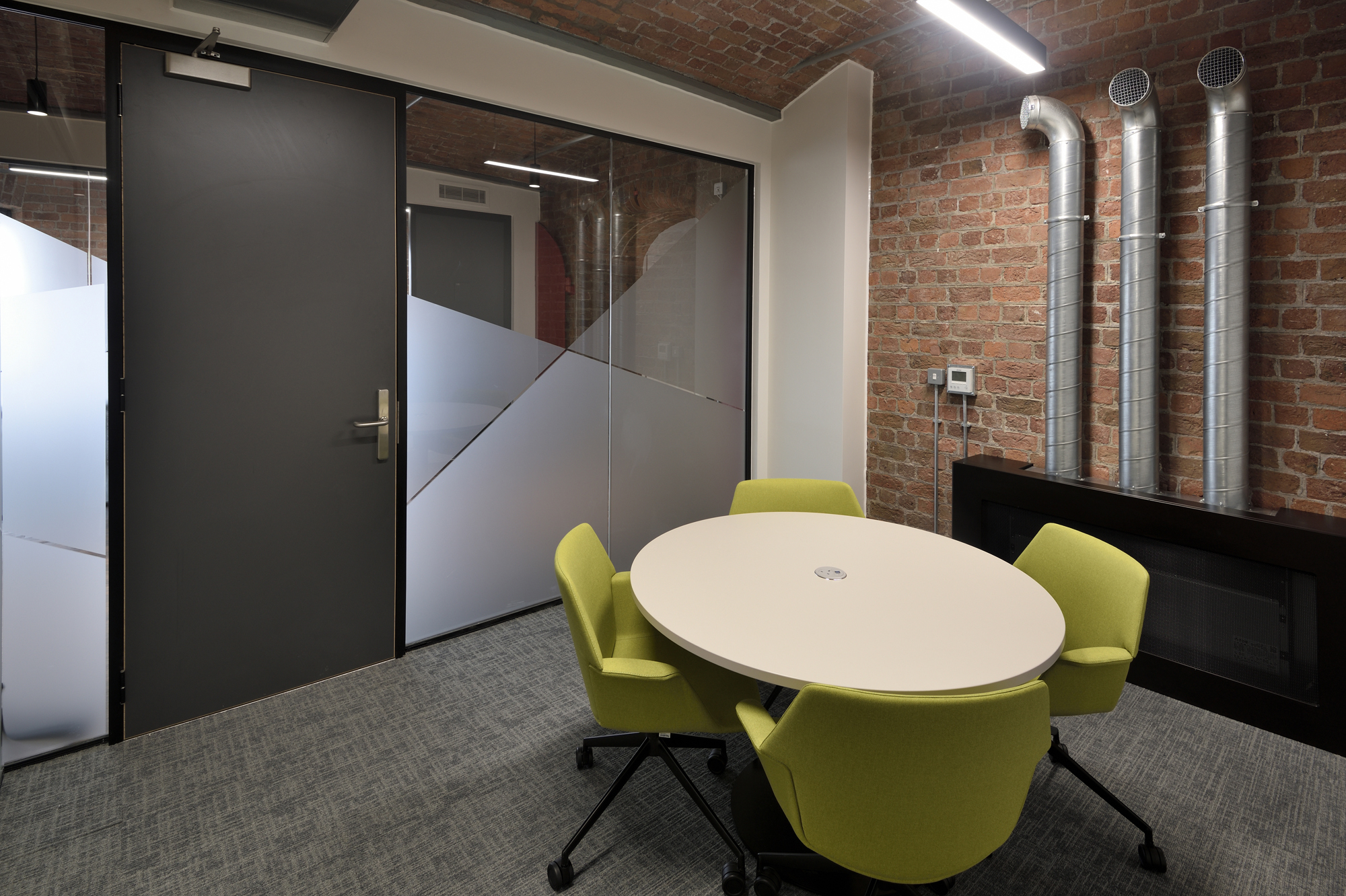

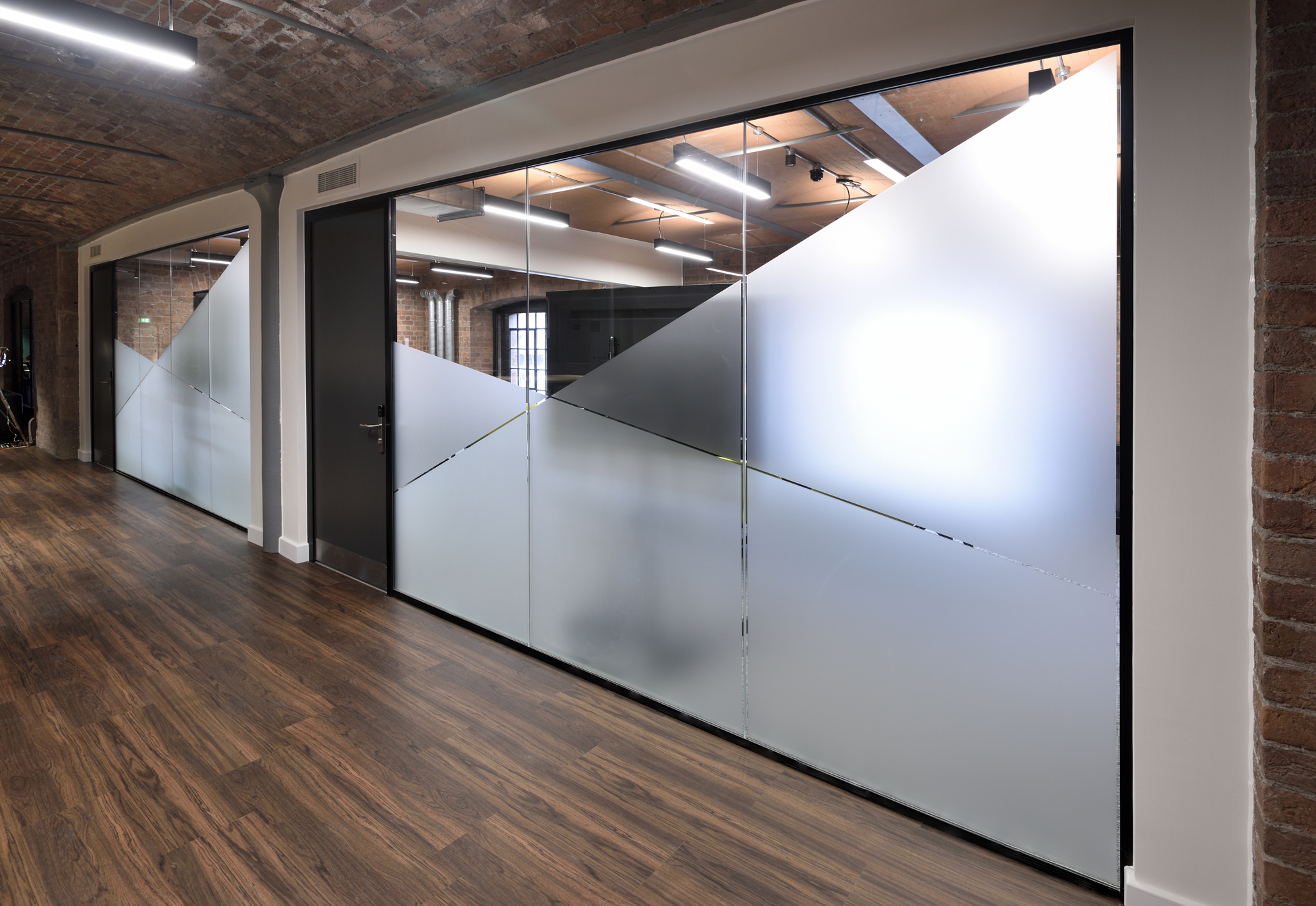

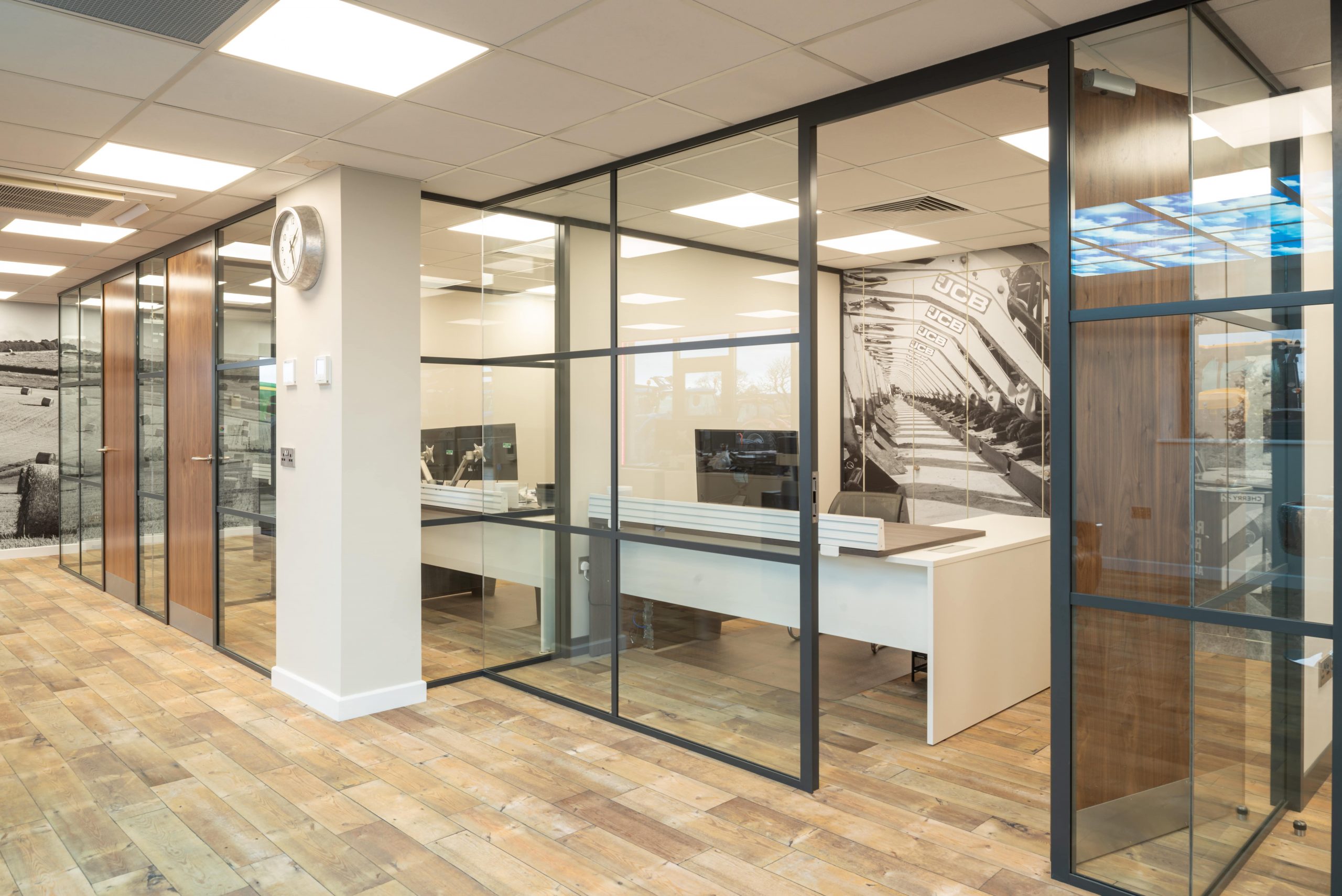

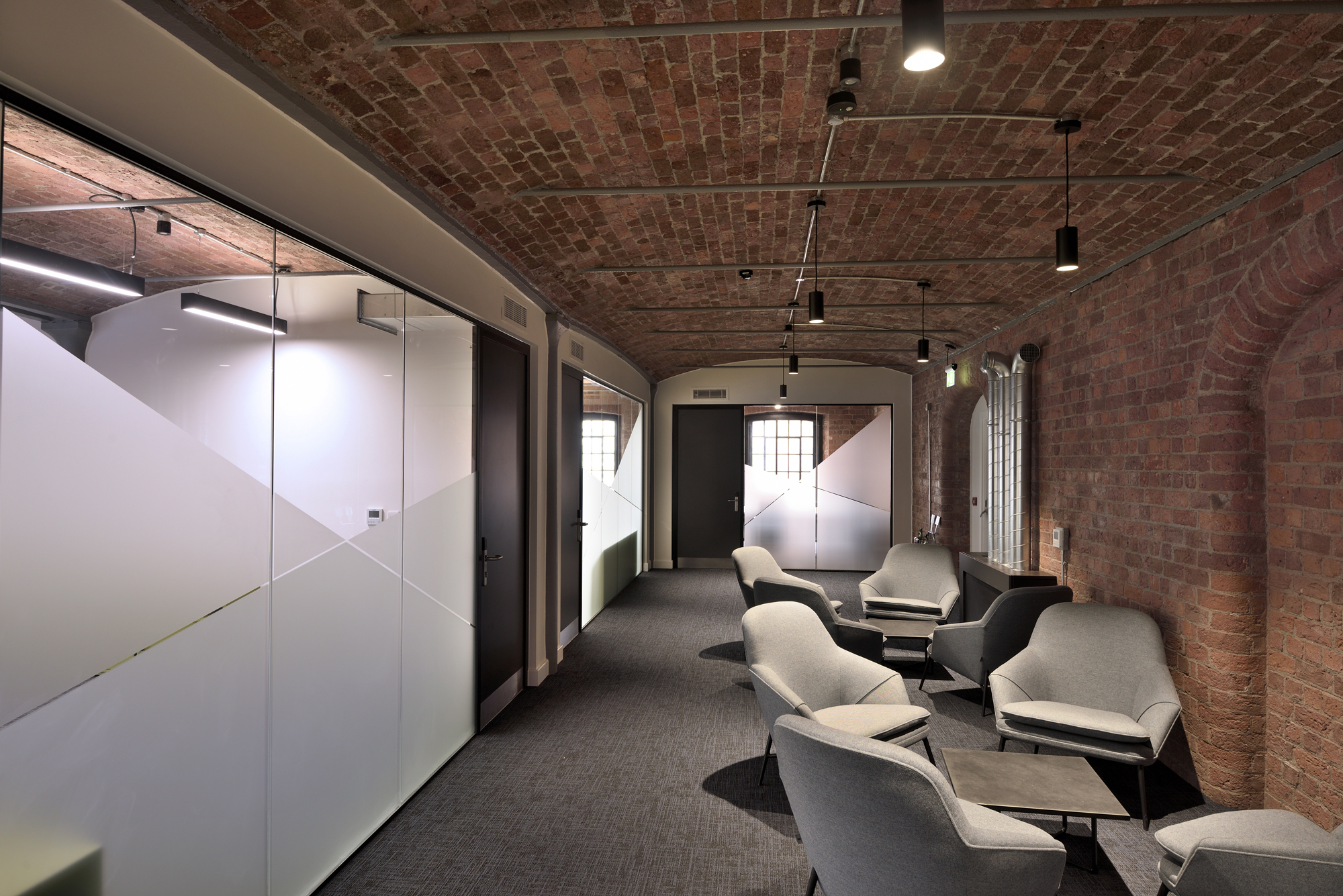

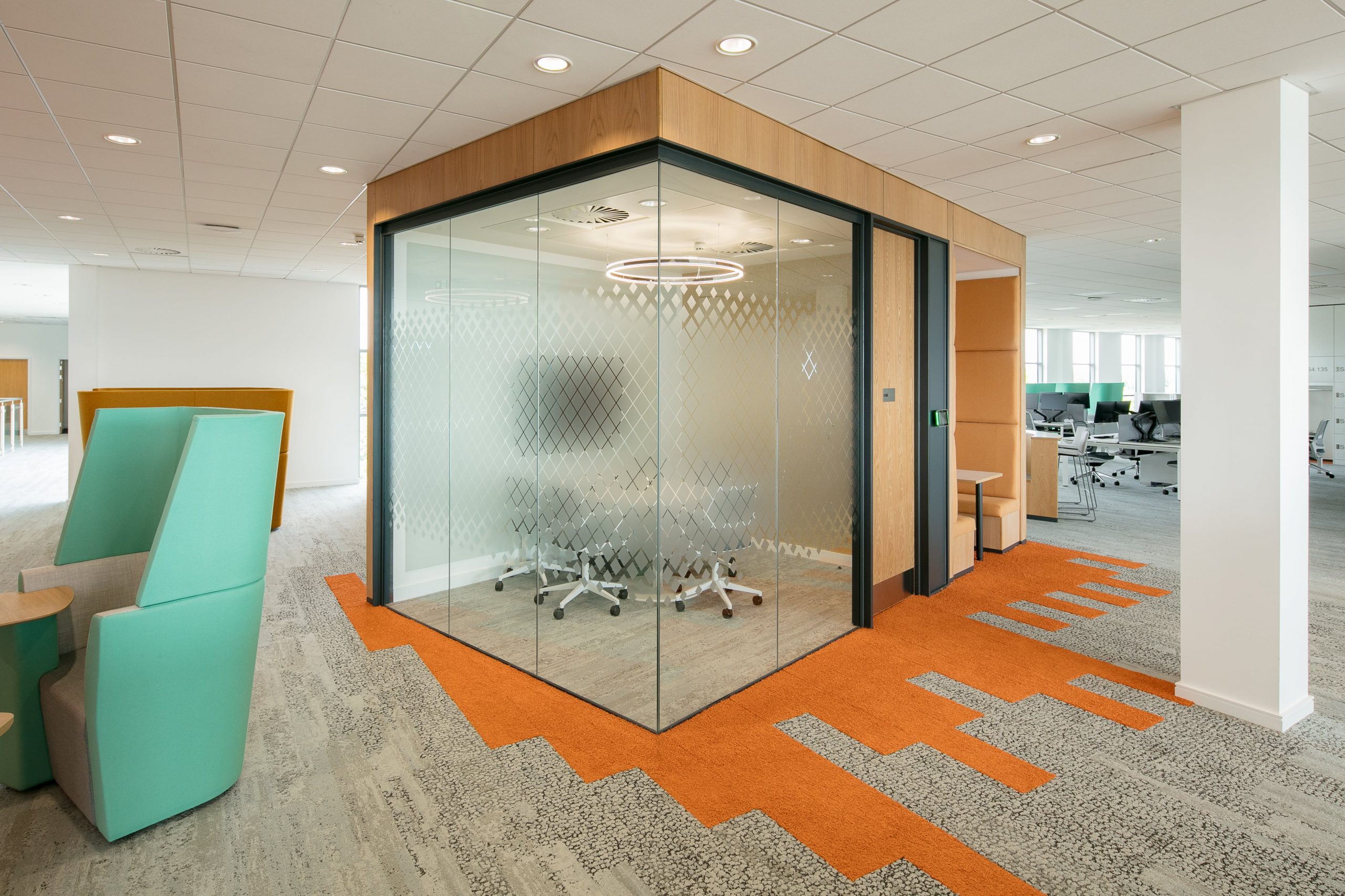

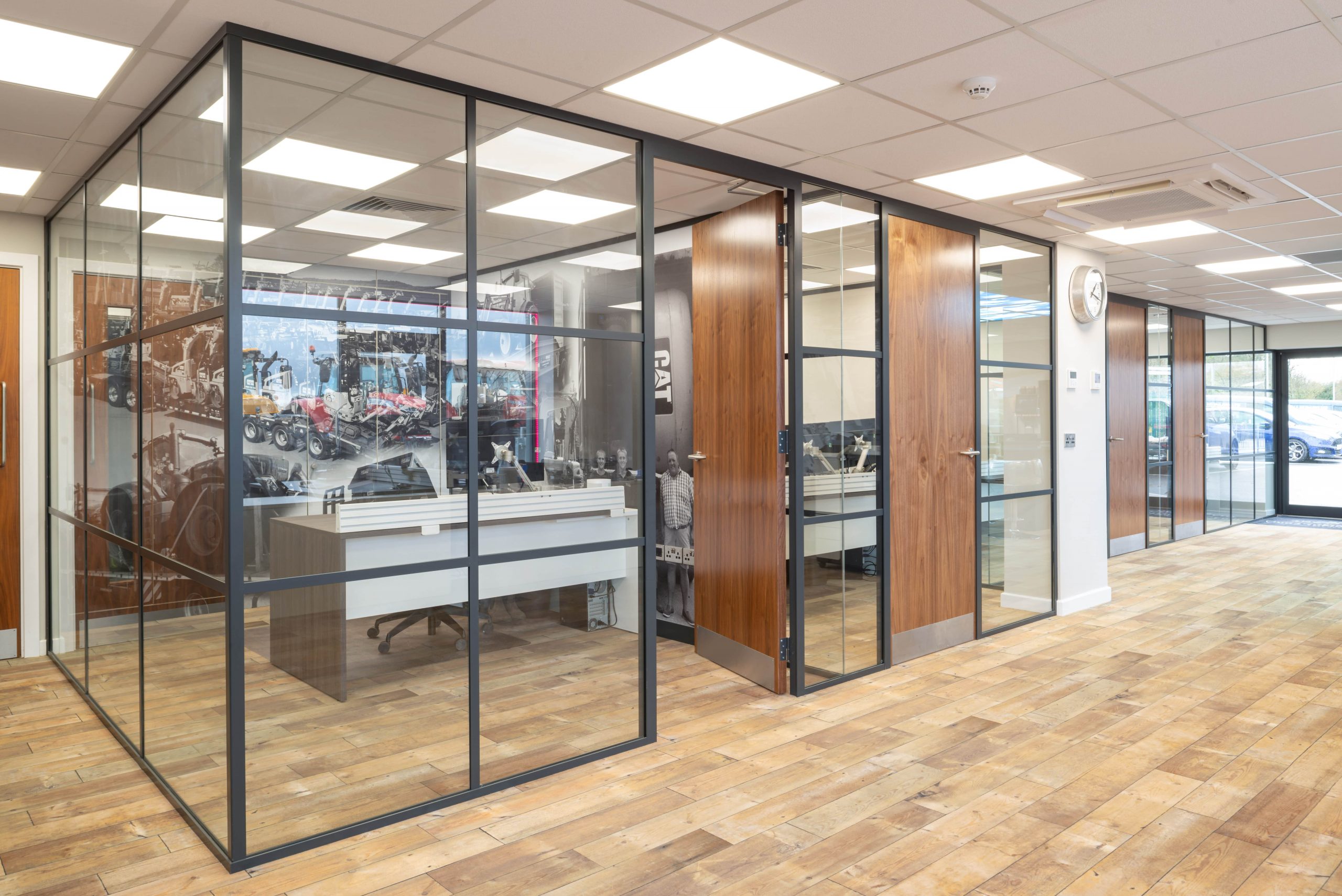

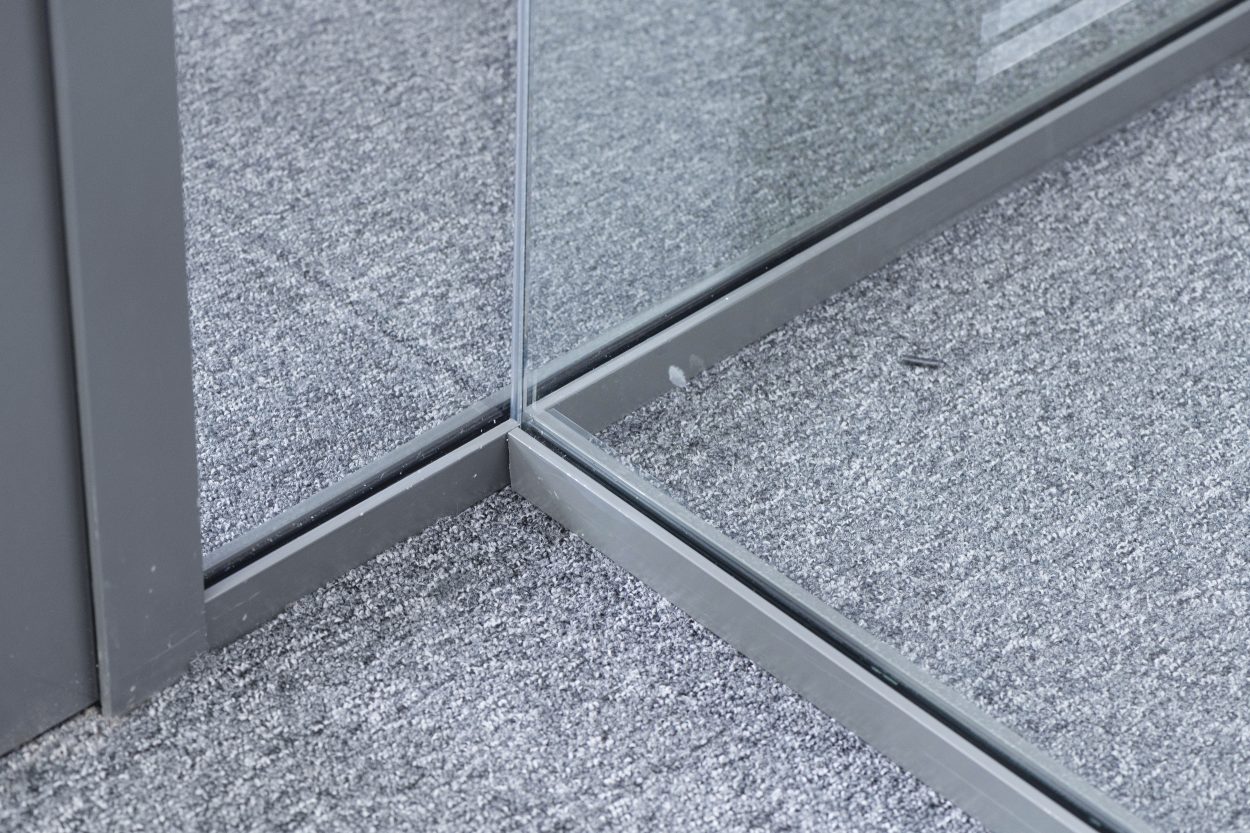

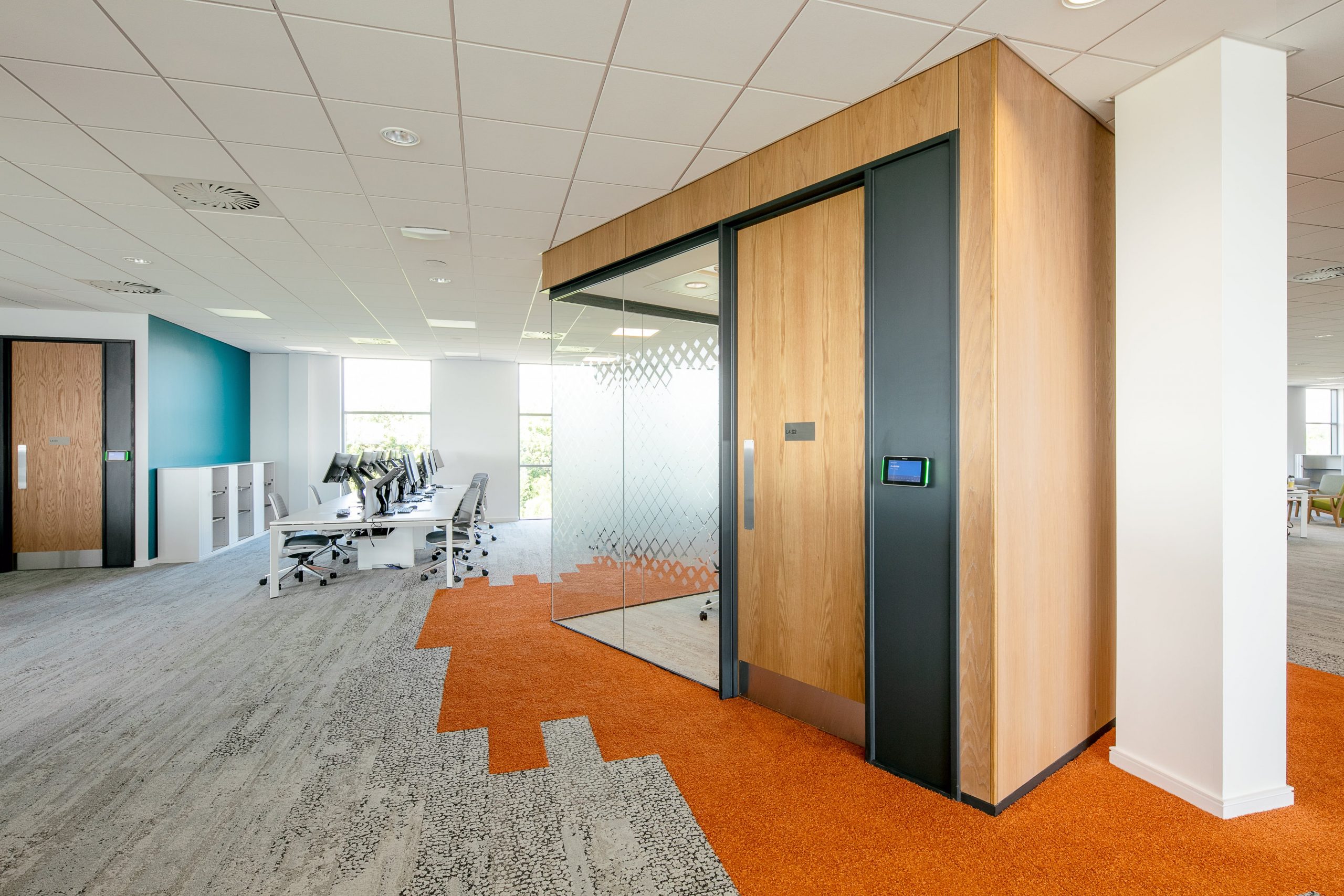

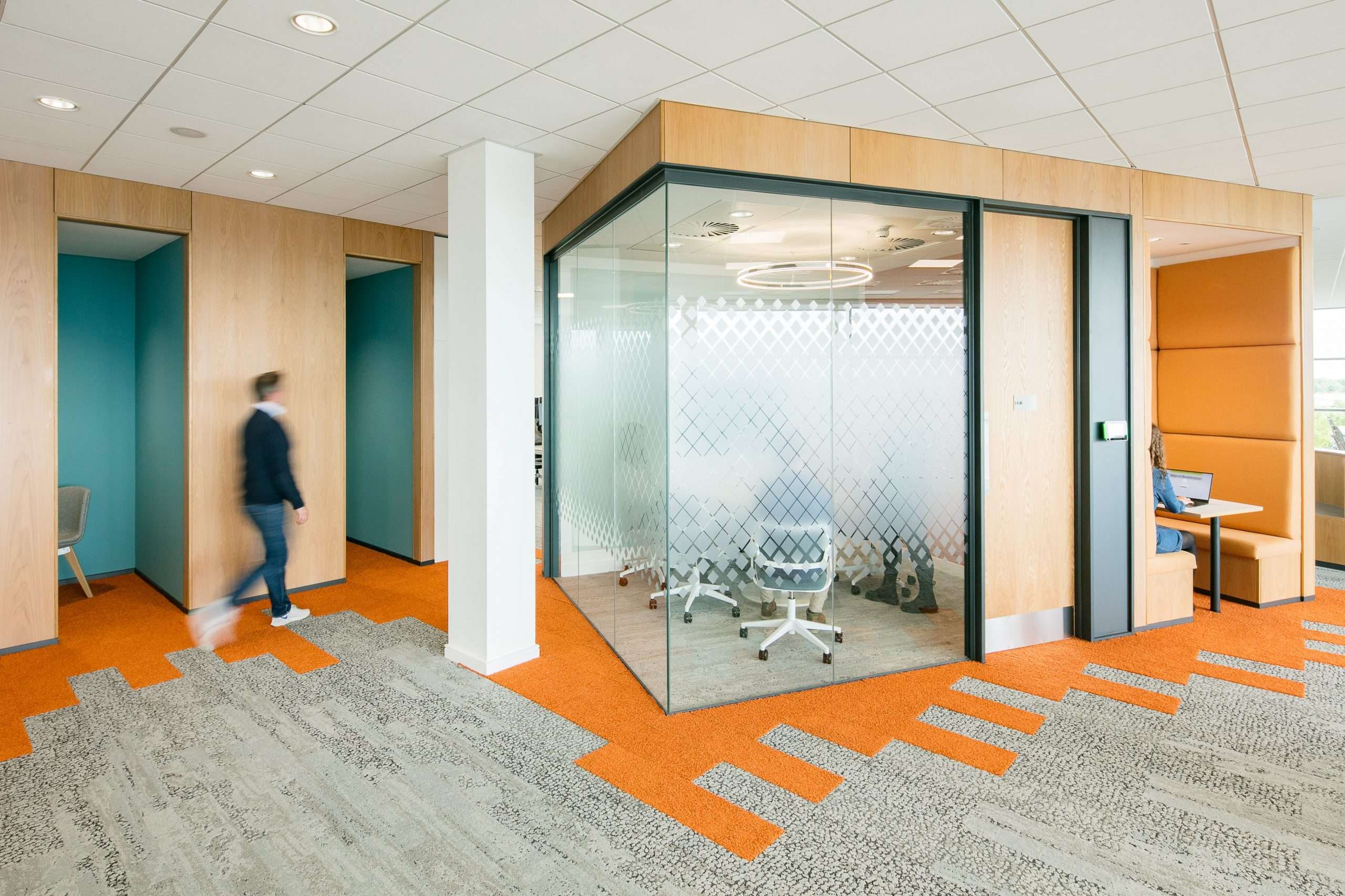

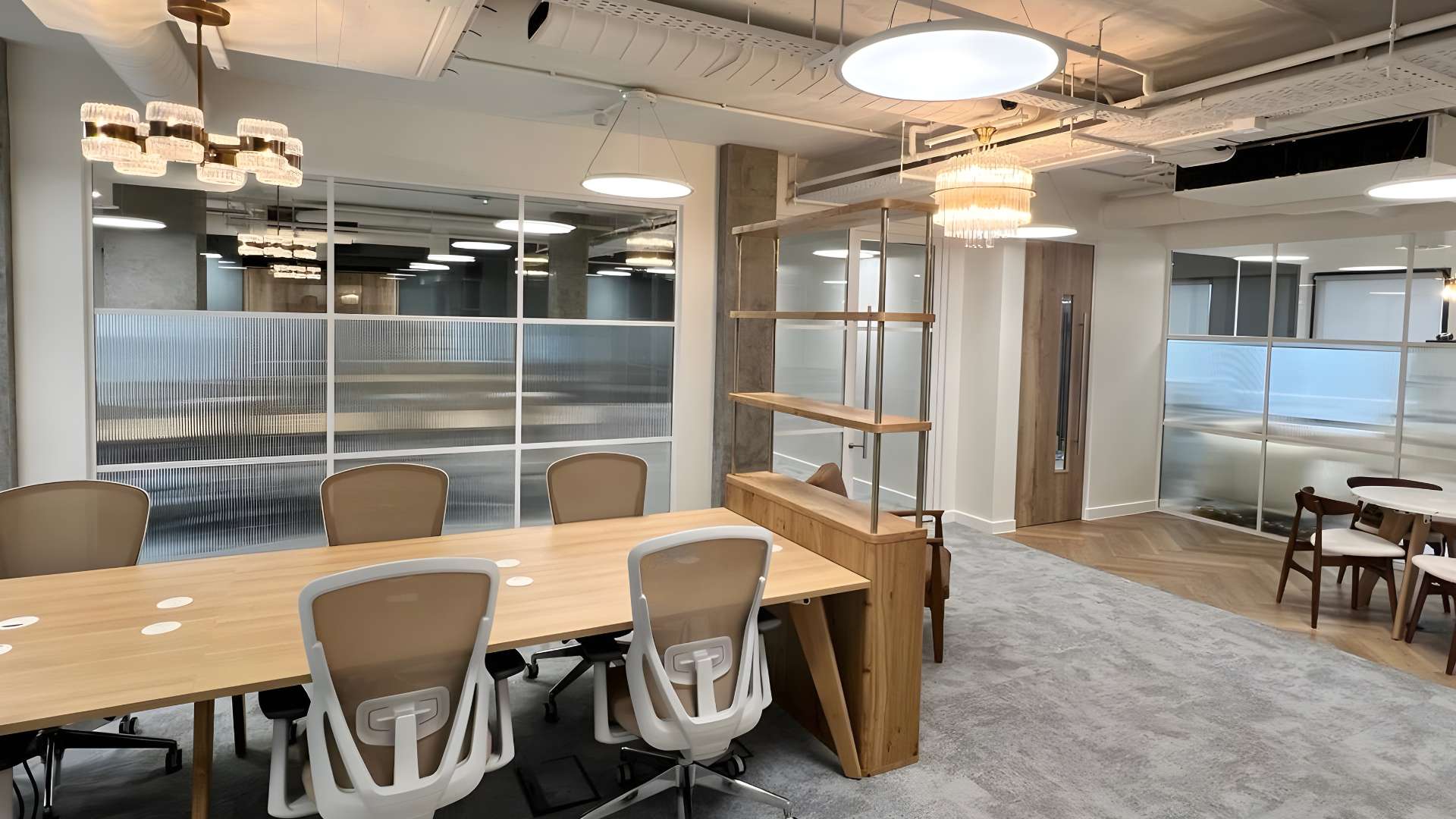

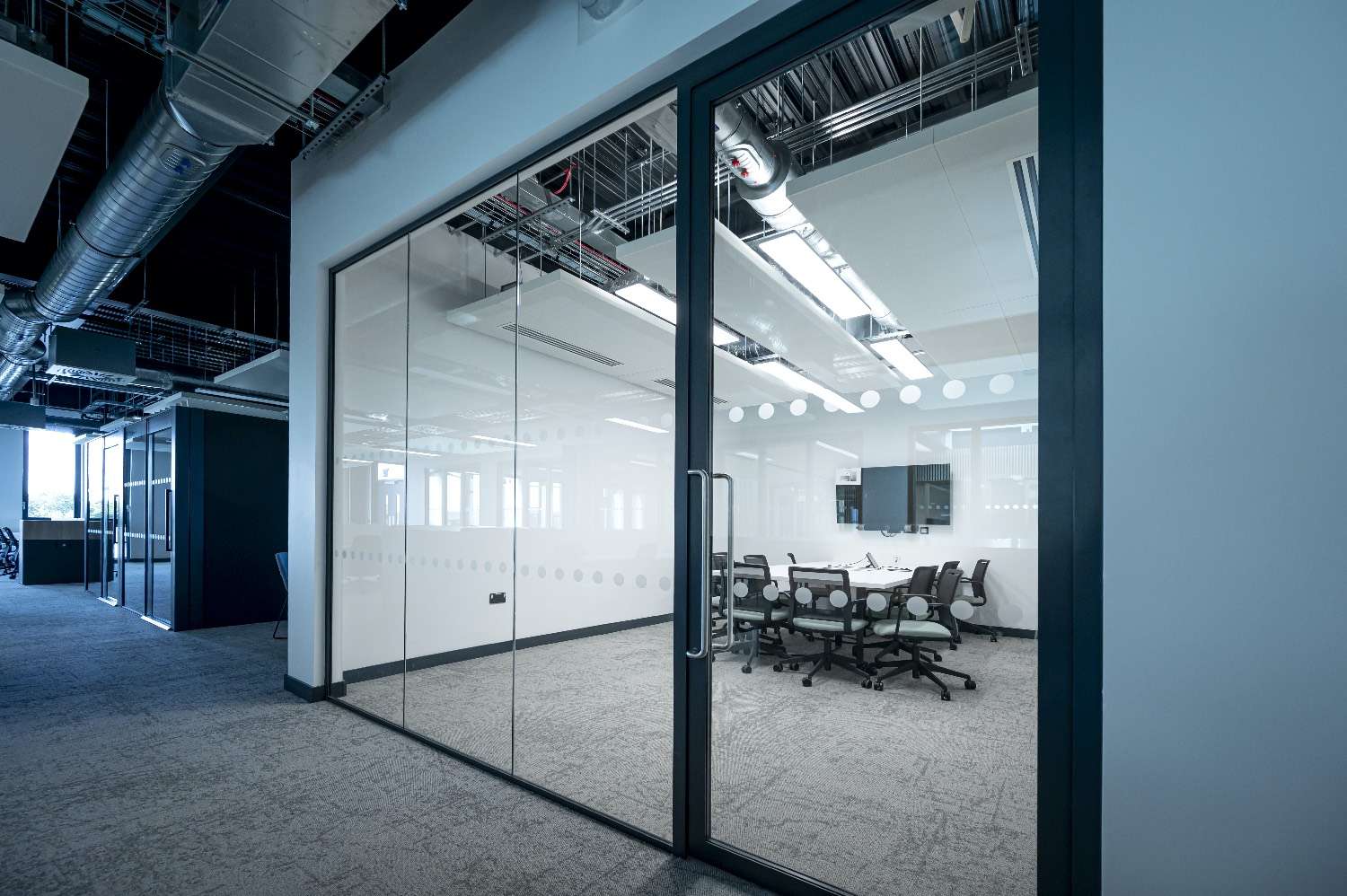

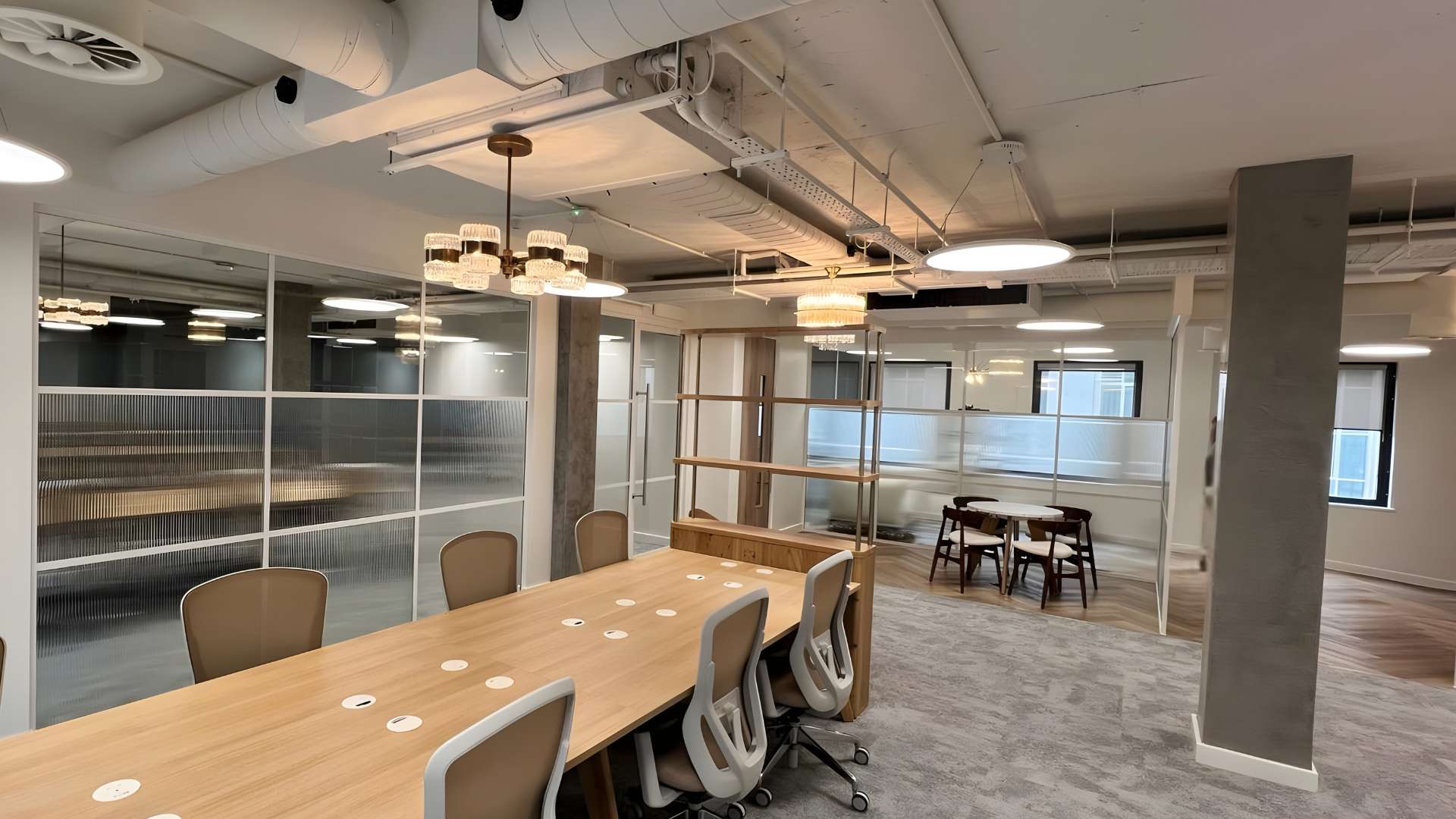

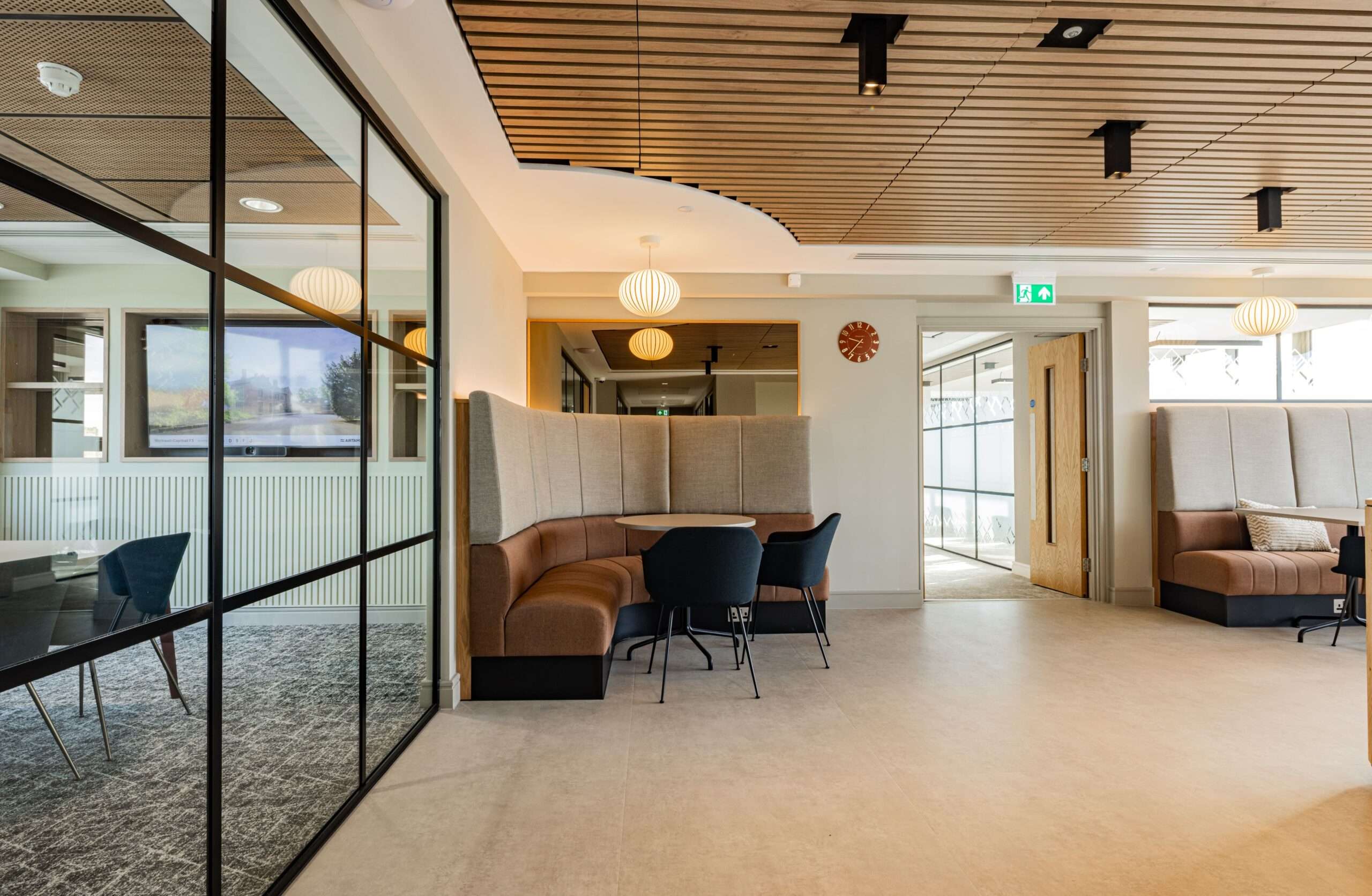

Polar 30 Gallery
