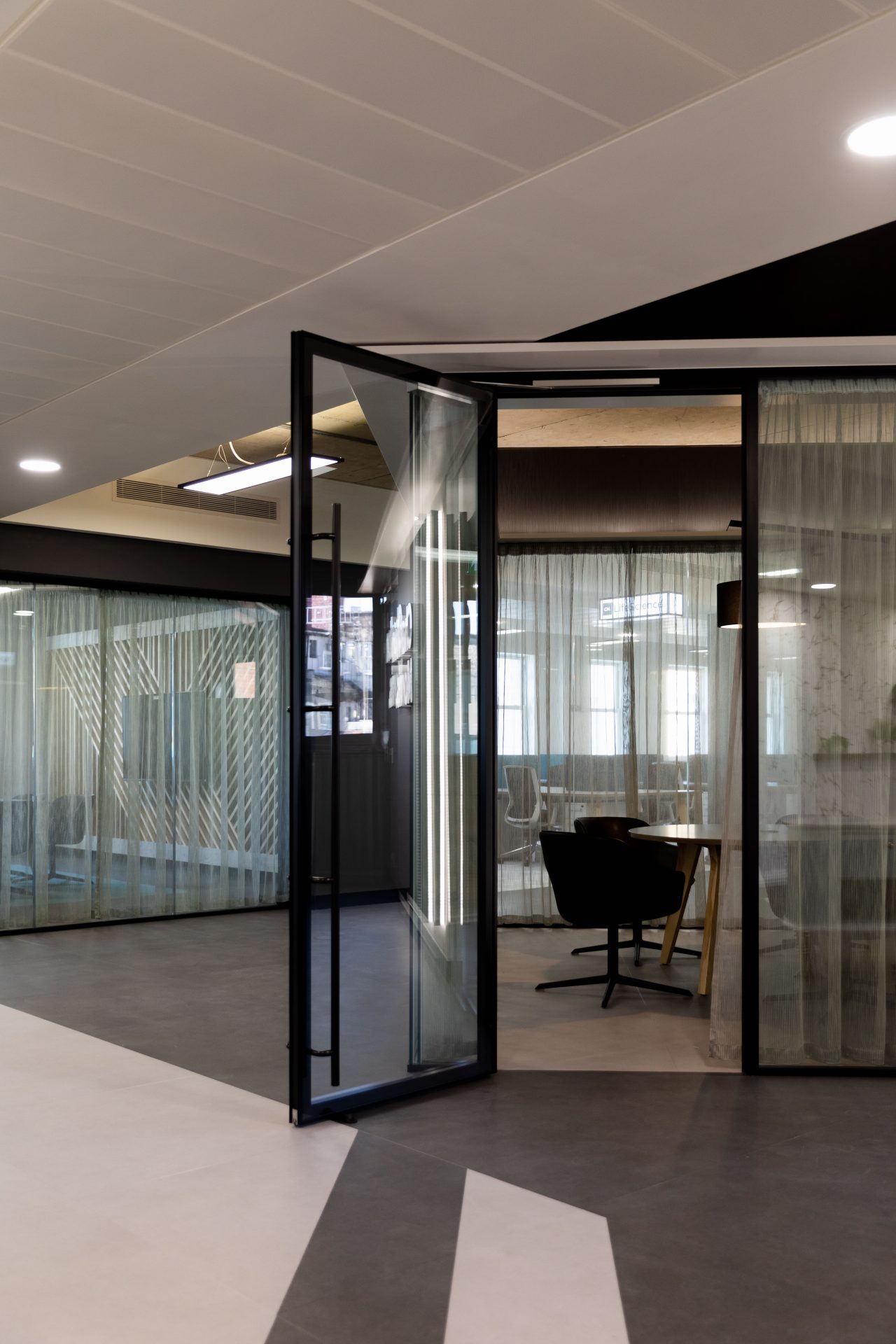

Sonik 70 44mm Swing Door
The Sonik 70 is Komfort’s versatile 44mm acoustic glazed door range, featuring a 70mm frame depth for enhanced presence and performance.
Designed to integrate seamlessly with all Komfort partitioning systems, the Sonik 70 combines high-end acoustic control with a commitment to straightforward installation and long-term maintenance.

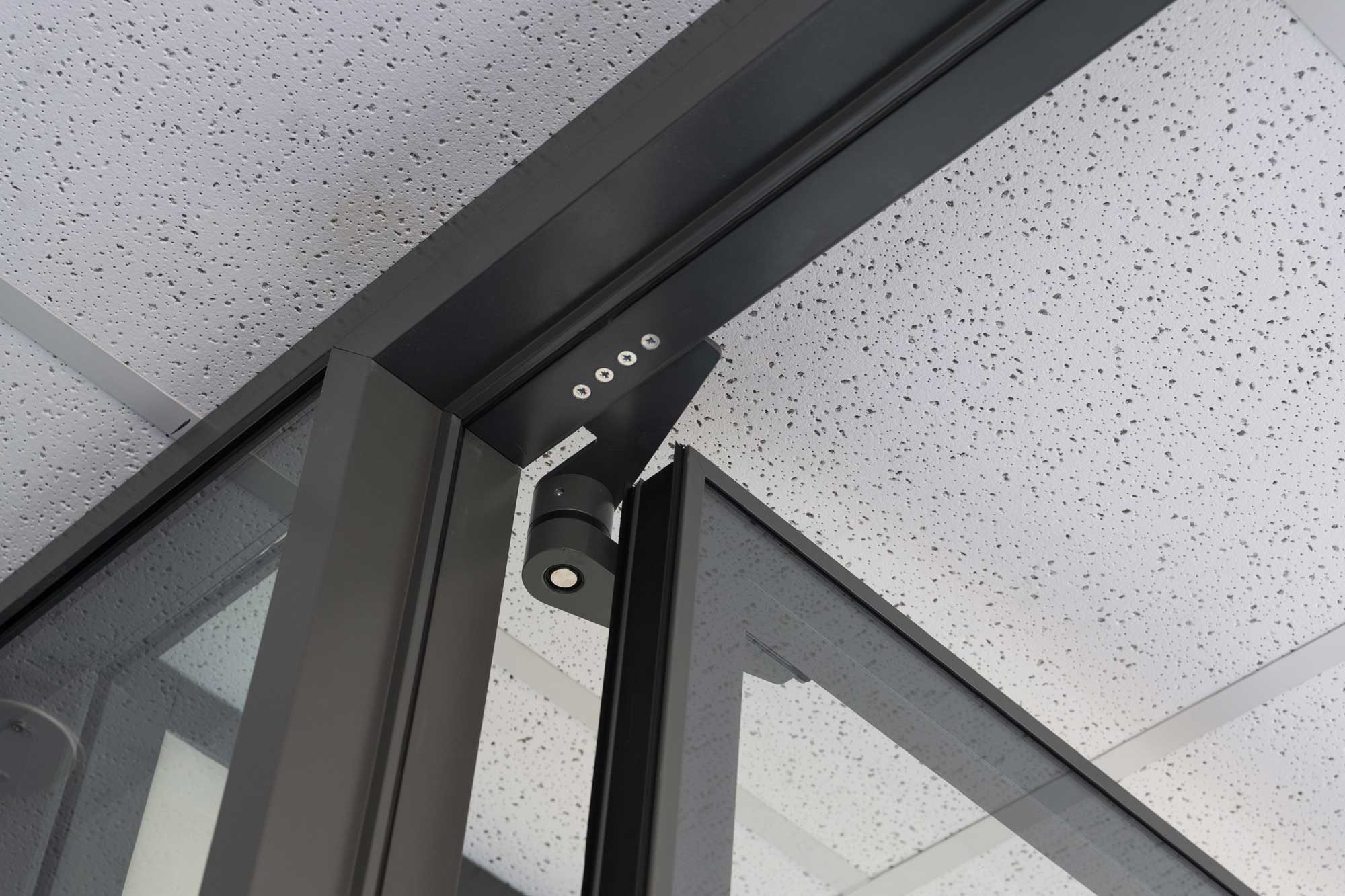

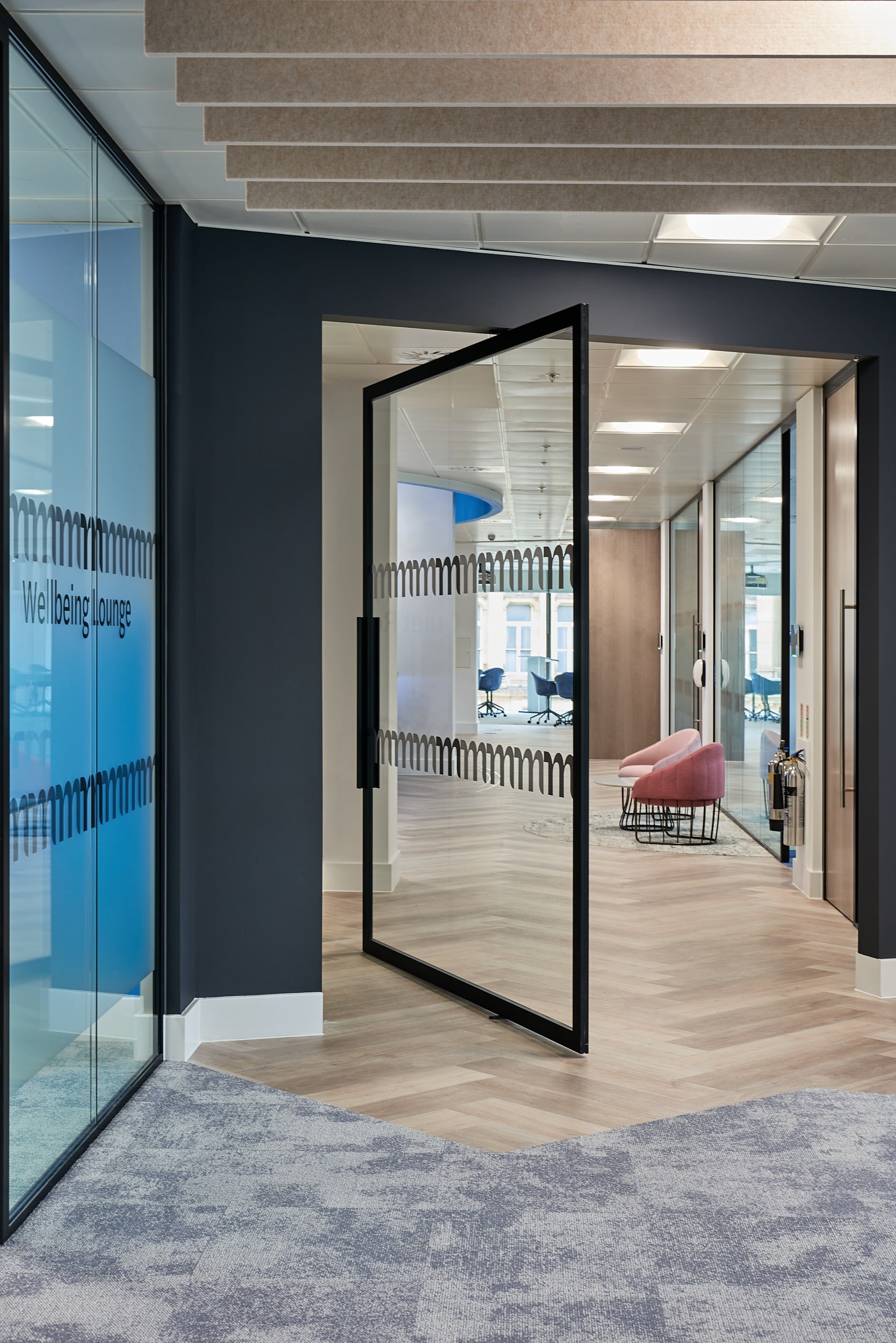

Available in single, hospital, or double configurations, the manufactured doorset offers complete design flexibility. Whether specified with lift-off hinges or an offset pivot and floor spring, the Sonik 70 provides a high-performance acoustic barrier that meets the rigorous demands of modern commercial environments.
Key Features.
01.
Acoustics up to 40dB (Rw) – UKAS accredited laboratory in accordance with BS EN ISO 10140
02.
70mm frame for design preferences and enhanced performance
03.
Fully compatible with our Polar partitioning range
04.
Maximum height of 3000mm and maximum width of 1100mm
05.
Compatible with electronic access options
06.
Allows for deflection heads
Compatibility
- Kross Glazed Bars
- Automated Door Systems
- Access Control
- Blinds
- Switch Glass
Technical Information
Complete Range
Explore and compare our Sonik door range to identify the specialist system that seamlessly aligns with your creative vision, while meeting your specific acoustic and structural compliance responsibilities.
Current Product
Sonik 70
44mm Acoustic glazed door range, featuring a 70mm frame depth for enhanced presence and performance.
ACOUSTICS
up to 40 dB (Rw)
PROFILE DIMENSIONS
70x44mm
DIMENSIONS (WxH)
1100x3000mm
Current Product
Sonik 52
44mm Acoustic glazed door, meticulously designed for a minimalist aesthetic and effortless integration.
ACOUSTICS
up to 37 dB (Rw)
PROFILE DIMENSIONS
52x44mm
DIMENSIONS (WxH)
1100x3000mm
Current Product
Sonik 70R
Enhanced sound attenuation, featuring Komfort’s 54mm rebated acoustic glazed door.
ACOUSTICS
up to 42 dB (Rw)
PROFILE DIMENSIONS
70x54mm
DIMENSIONS (WxH)
1100x3000mm
Current Product
Sonik 70S
28mm Sliding acoustic glazed door, available in both offset and pocket configurations.
ACOUSTICS
up to 35 dB (Rw)
PROFILE DIMENSIONS
70x28mm
DIMENSIONS (WxH)
1300x3000mm
