Polar, a design legacy reimagined
Introducing Komfort’s most competitive and completely reimagined Polar range; including five stunning, frameless glass partitioning systems each with their own unique merits; from leading acoustic ratings and enhanced structural performance to flexibility in configuration and inspired, minimalist design.
Polar 30 | Polar 35 | Polar 54 | Polar 100 | Polar 101 | |
Acoustic Performance | Up to 40dB (Rw) | Up to 41dB (Rw) | Up to 47dB (Rw) | Up to 53dB (Rw) | Up to 54dB (Rw) |
Structure | Up to severe duty | Up to severe duty | Up to severe duty | Up to severe duty | Up to severe duty |
Nominal Width | 30mm | 35mm | 54mm | 100mm | 100mm |
Maximum Height | 3000mm | 3500mm | 3000mm | 3000mm | 3600mm |
Maximum Glass Thickness | 14.8mm | 17.5mm | 14.8mm | 14.8mm | 17.5mm |
Sightline | 32mm | 32mm | 32mm | 32mm | 32mm |
Single Glazed | Y | Y | Y | ||
Double Glazed | Y (slimline) | Y | Y | ||
Triple Glazed | Y | Y | |||
Kross Glaze Applied Bars | Y | Y | Y | Y (and internal) | Y (and internal) |
*Please note that our previous Polar Single Glazed and Polar Double Glazed partition systems are still available when being used alongside our Fire Rated systems. All technical details and contact information for these systems can be found in our Registered User Downloads area.*
Frameless Partition Technical Specifications
We have a range of frameless glass partition options with different technical specifications for different applications, requirements, and budgets.

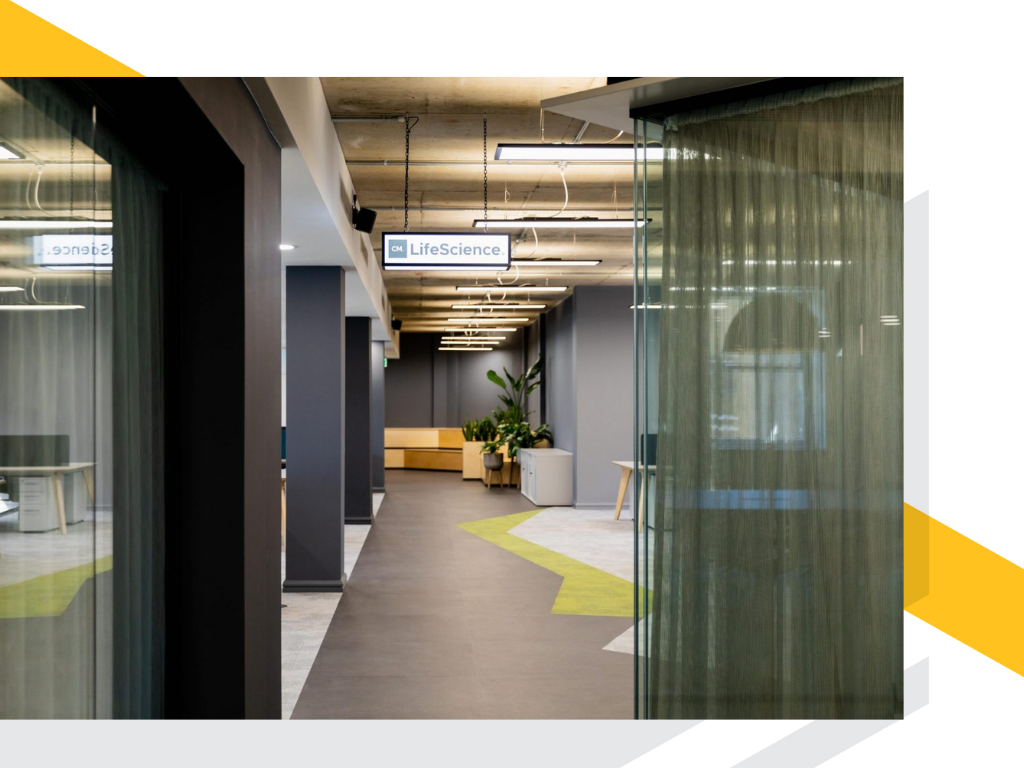

Polar 54 Partitioning System – Spec Sheet
Acoustic rating – up to 47dB in a slimline frame.
Polar 54 can accommodate 10-14.8mm glass – single or double glazed.
Suitable for manifestations and graphics.

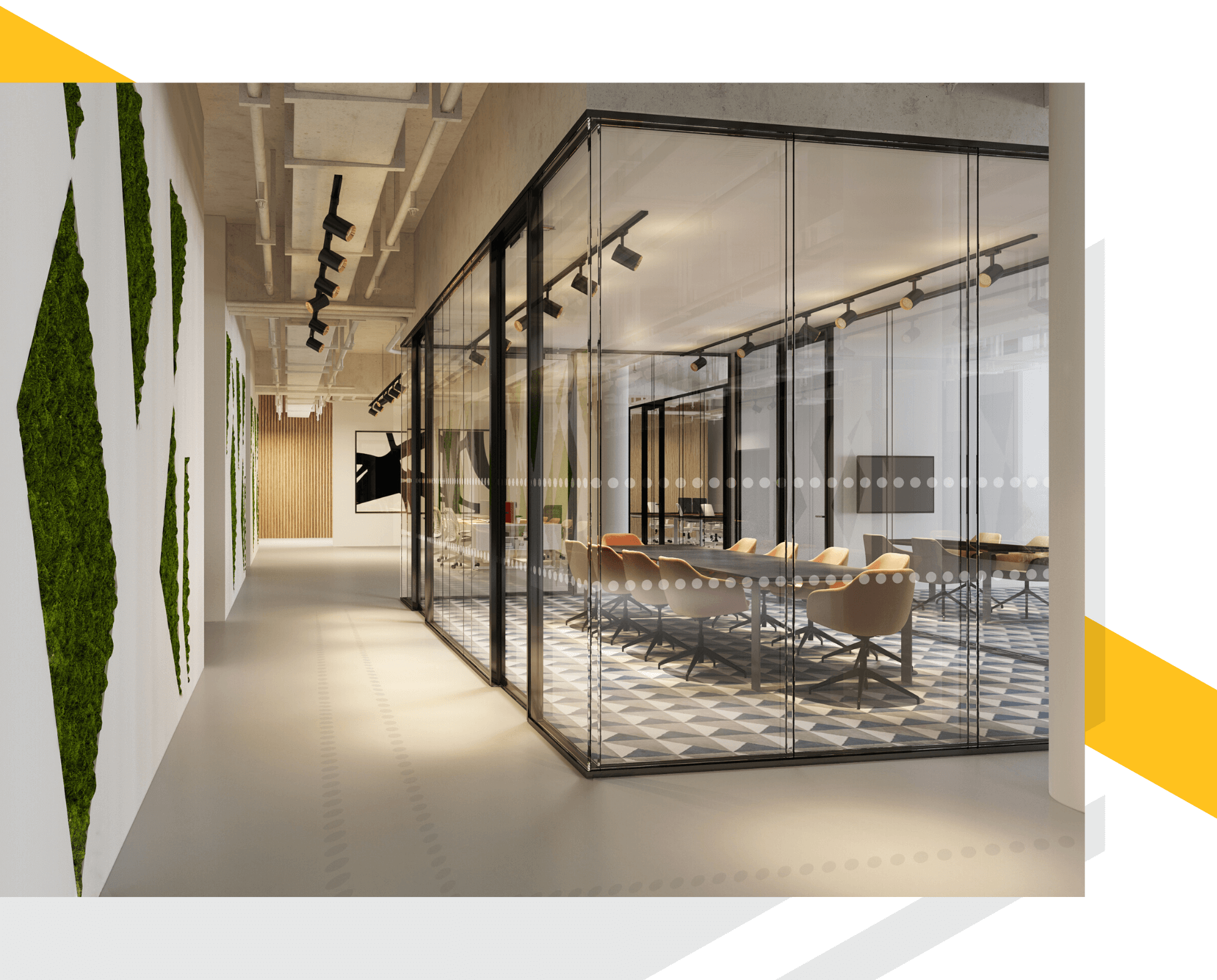

Polar 101 Double Glazed Partitioning System – Spec Sheet
Acoustic Rating – up to 54dB.
Suitable for manifestations and graphics, powder coat and anodised finish available.
The offset profile takes 16.8mm-17.5mm glass on one side and 10-14.8mm on the other.
Strong structural performance.
Polar 35 Single Glazed Partitioning System – Spec Sheet
Acoustic Rating – up to 41dB.
Accommodates glass up to 17.5mm, achieving increased line load performance and higher acoustic ratings.
Suitable for manifestations and graphics, powder coat and anodised finish available.
Strong structural performance.
