Project Description

Komfire 100 & 100+ Fire Rated Partitioning Systems

Komfire is a steel stud and plasterboard construction surrounded by an aluminium framework, which offers a distinct angular style and incorporates acoustic performance. This fire rated office partition system has three variations: Komfire 75, 100 and 100+.

System specifications

Komfire 100
This is Komfort’s 100mm square edge framed system which is renowned for its impressive performance credentials and application possibilities. Available in a solid, single and double glazed construction this system is compatible with Komfort’s Sonik, glazed and timber doors and pre-assembled window frames. Komfire 100 achieves acoustic ratings of up to 52dB (Rw) and a fire rating of up to 60/60.

Komfire 100+ currently under review
Similar to the Komfire 100 system, Komfire 100+ is Komfort’s glazed module but with enhanced fire performance ratings of up to 60/60, so the perfect choice for buildings when stringent fire regulations apply. With Komfire 100+ it is possible to butt joint the glass with Pyrobel 16 and 25. This system is currently under review, contact the specification team for current product details.

Komfire 100 Datasheet
Login for Design Guide & Technical Documents
Komfort Brochure Download
NBS Specification 100 Non-Fire Rated
NBS Specification 100 Fire Rated

Komfire 100 Partitioning at a Glance

Dimensions:
Solid height – up to 4800mm
Glazed height – up to 3000mm

Fire ratings:
Up to 60/60 (solid)
Up to 30/0 (glazed)

Acoustics:
Solid – up to 52dB (Rw)
Single glazed – up to 36dB (Rw)
Double glazed – up to 41dB (Rw)

Door options:
Timber doors
Sonik glazed doors
Single glazed doors

Doorframe options:
Aluminium doorframe
Timber doorframe

Structure:
Solid – up to severe duty
Glazed – up to severe duty

Glass type options:
Toughened – 6mm
Laminated – 6.4mm
Acoustic – 6.8mm
Fire – 6mm

Weight
(inc. nominal head & base)*:

Solid – up to 46 kg/m2
Glazed – up to 39 kg/m2

Compatible with:

  • Blinds

  • Manifestations

  • Graphics

  • SwitchGlass

Paint / finishes:

  • Polyester powder coat

  • Satin anodised aluminium

  • Special anodised finish

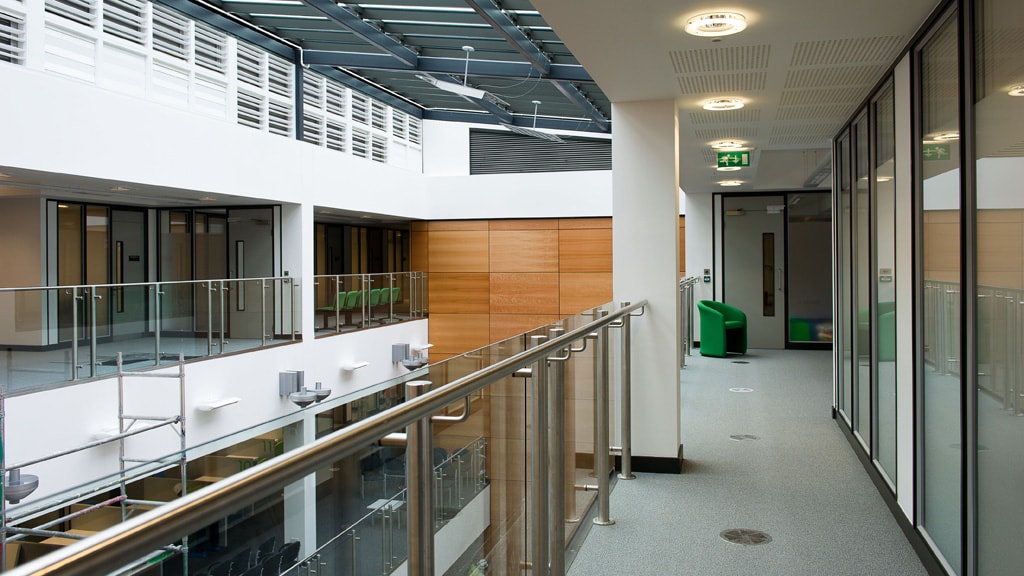

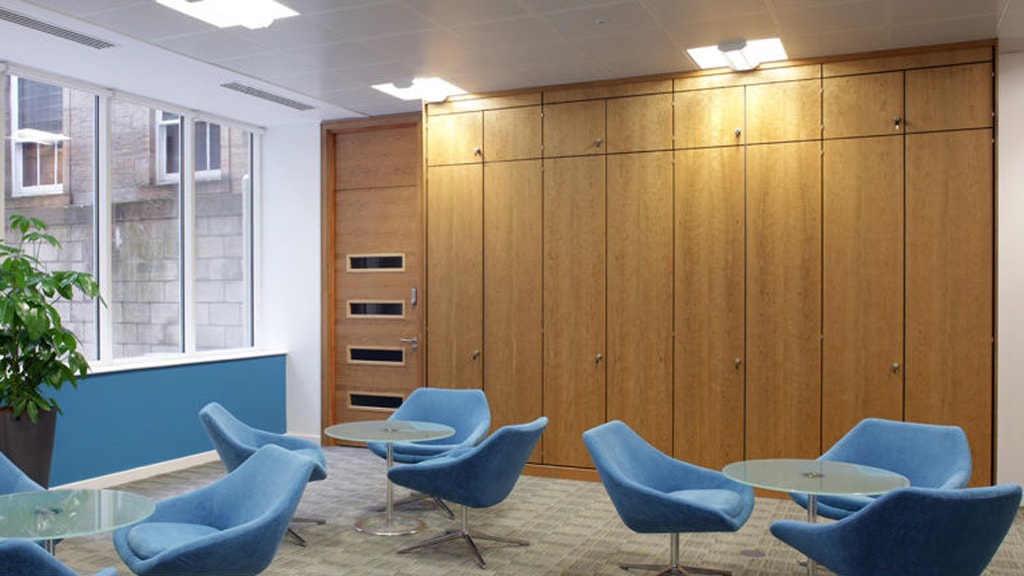

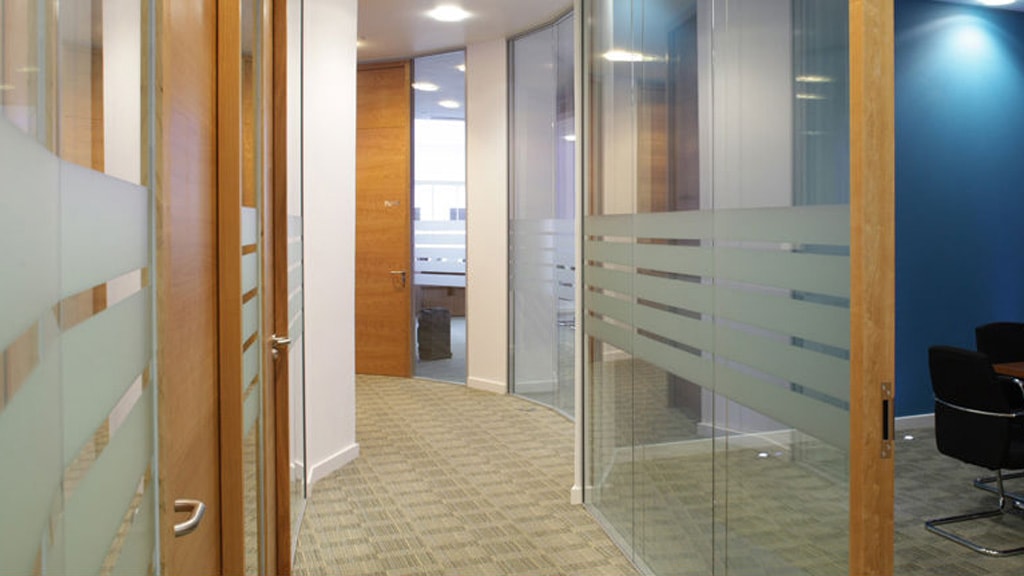

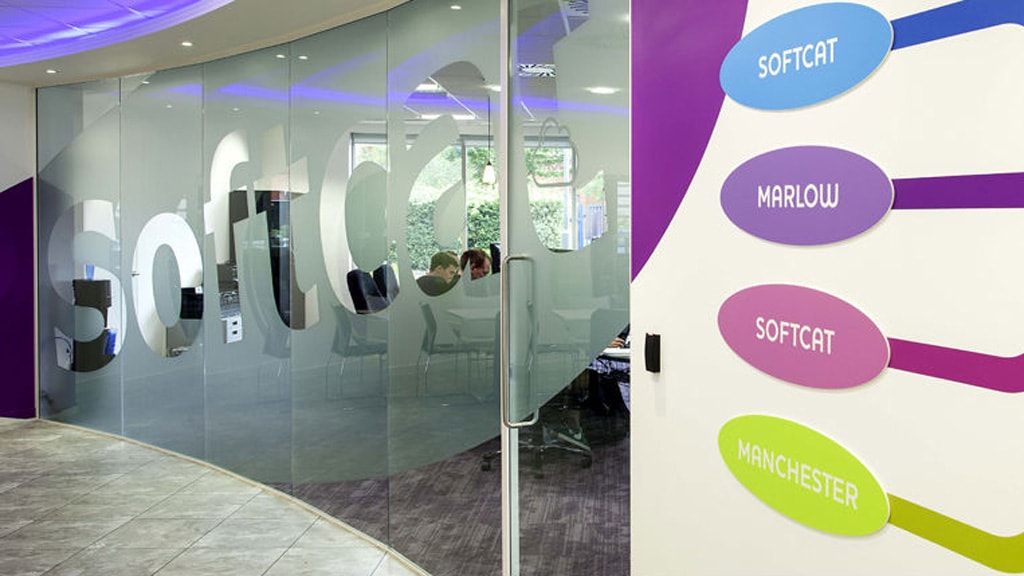

Komfire 100 Gallery

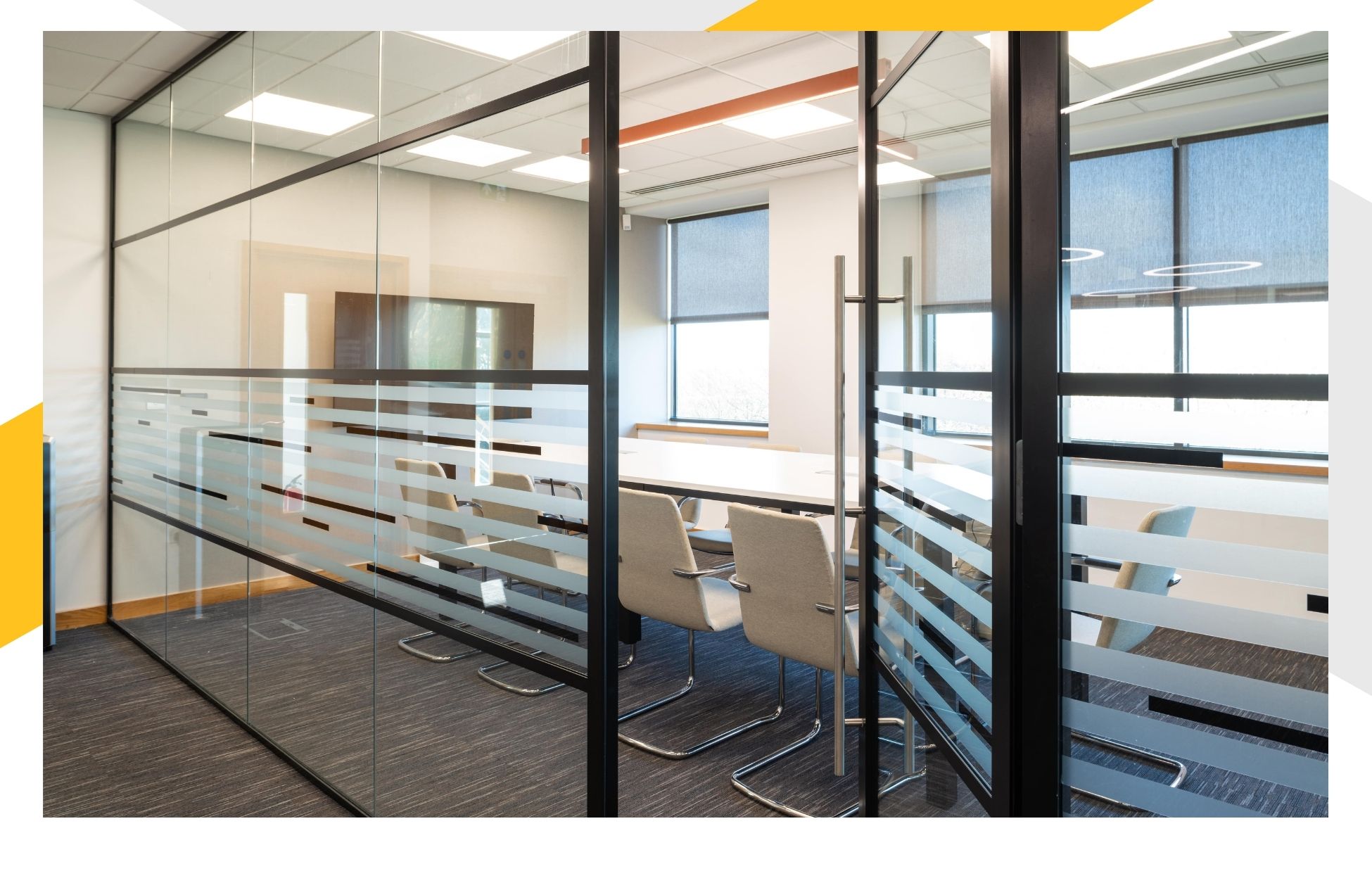

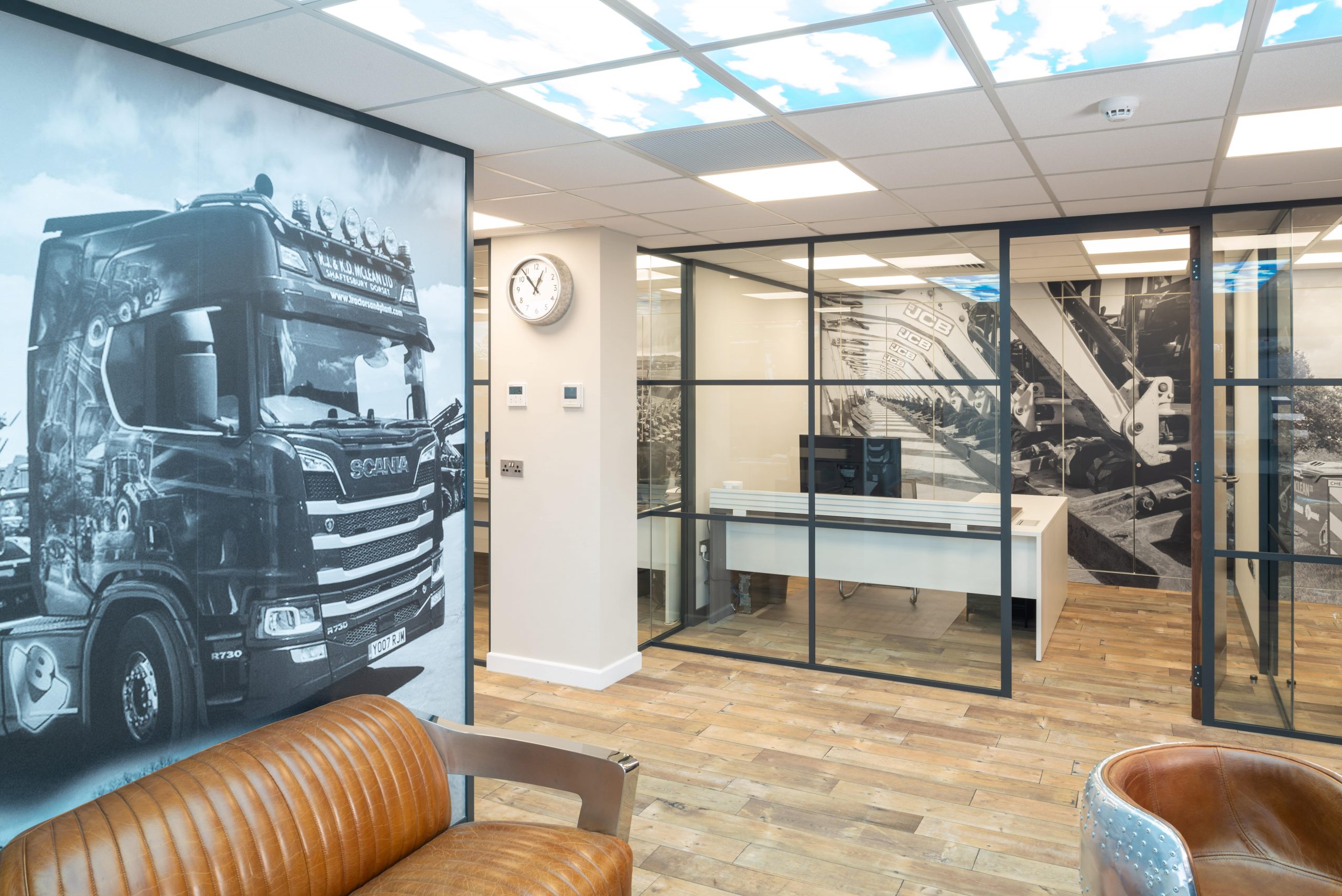

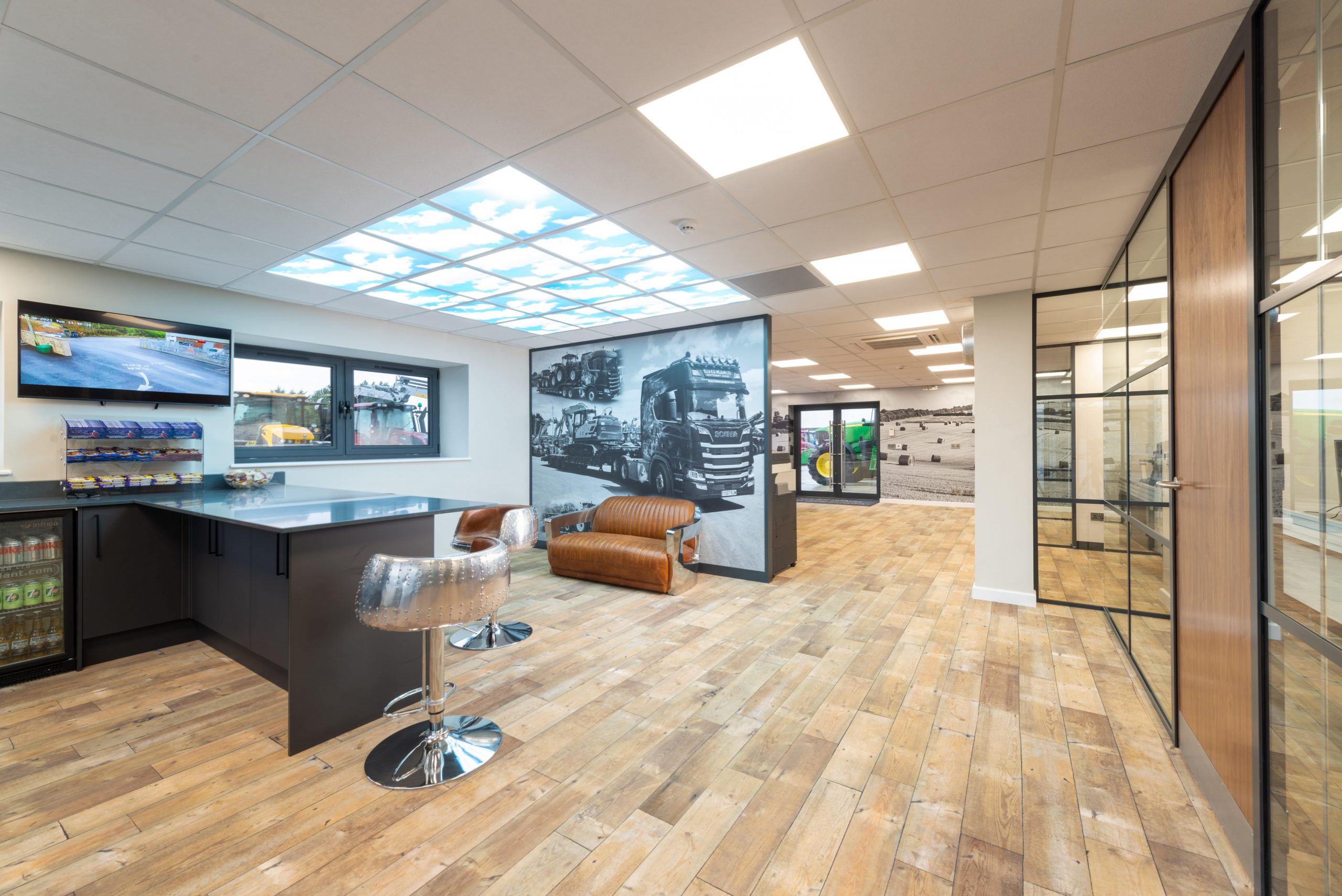

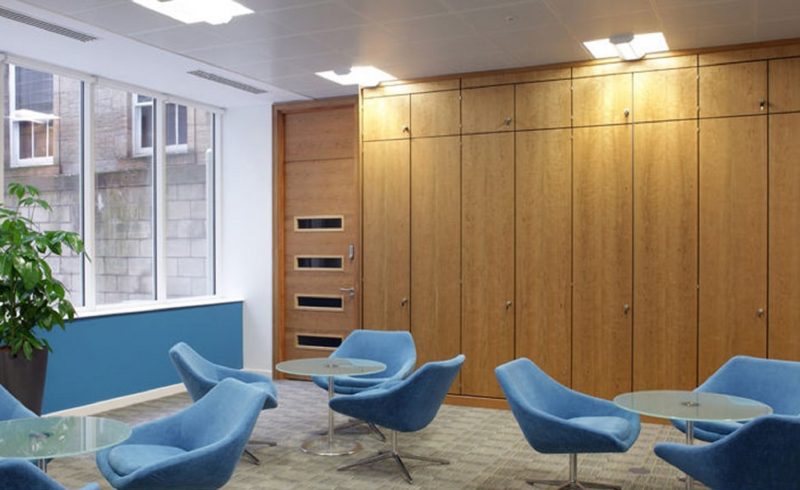

Case Studies Using Komfire 100 Partitioning
