Polar 54 Single & Double Glazed Partitioning

Polar 54 is Komfort’s 54mm wide glass partitioning system available with a range of configurations, including a slimline double glazed option. Polar 54 system provides flexible design solutions for the recent architectural trend of narrow-gauge glazed partitioning, without compromising on strength and performance. The frameless bubble jointed glazing and minimal trackwork creates a stunning environment for any interior.

This slim glazed office partitioning system offers the perfect solution for designers to create the impression of space, whilst helping businesses best utilise their office planning. The structure of Polar 54 blends functionality, performance and high-end design.

SYSTEM SPECIFICATION

The Polar 54 system achieves an impressive acoustic performance of to 47dB (Rw) in a slimline frame. The system can accommodate 10mm to 14.8mm glass in either a single or double-glazed format. There are options for +/-25mm deflection channels, as well as 100mm drywall tape and joint adaptor and Komfire 75 and 100 wrap around reducers.

This system is compatible with Kross Glaze applied bars with the option of an internal Kross Glaze bar for the double glazed version. Polar 54 can be installed alongside Komfort’s Sonik, single glazed and timber door options. To create an elegant and stylish design, all aluminium sections are powder coated any RAL or BS colour code.

Download our Design Guide for more information.

0dB (Rw)
Acoustic rating
0mm
Maximum height
0mm
Maximum module width

Polar 54 at a Glance

Dimensions:
Height – up to 3000mm
Track width – 54mm
Track height – 32mm

Fire ratings:
N/A

Acoustics:
Up to 47dB (Rw)

Structure:
Up to BS 6180 – 0.74kN

Deflection head:
+/-25mm

Door options:
Timber doors
Single glazed doors
Sonik doors

Glass type options:
Toughened – 10,12mm
Toughened Lam. – 13.5mm
Acoustic Lam. – 10.8, 12.8, 14.8mm

Weight
(inc. nominal head & base)*:

Toughened glass:
10mm = 25 kg/m2
12mm = 30 kg/m2

Toughened Lam. glass:
13.5mm = 34 kg/m2

Acoustic Lam. glass:
10.8mm = 27 kg/m2
12.8mm = 32 kg/m2
14.8mm = 37kg/m2

Compatible with:

  • Blinds

  • Manifestations

  • Graphics

  • SwitchGlass

  • Kross Glaze

Paint / finishes:

  • Polyester powder coat

  • Satin anodised aluminium

  • Special anodised finish

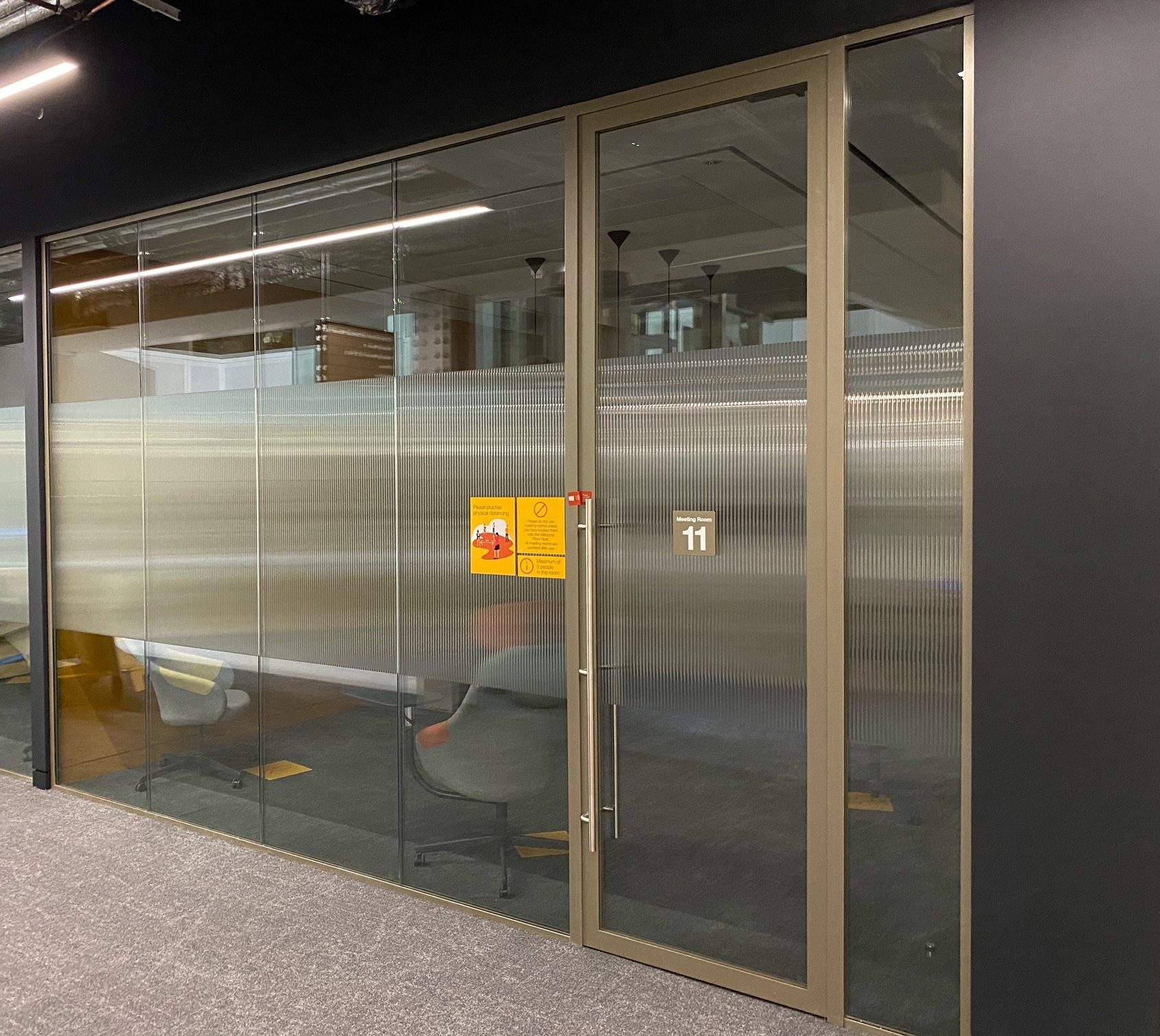

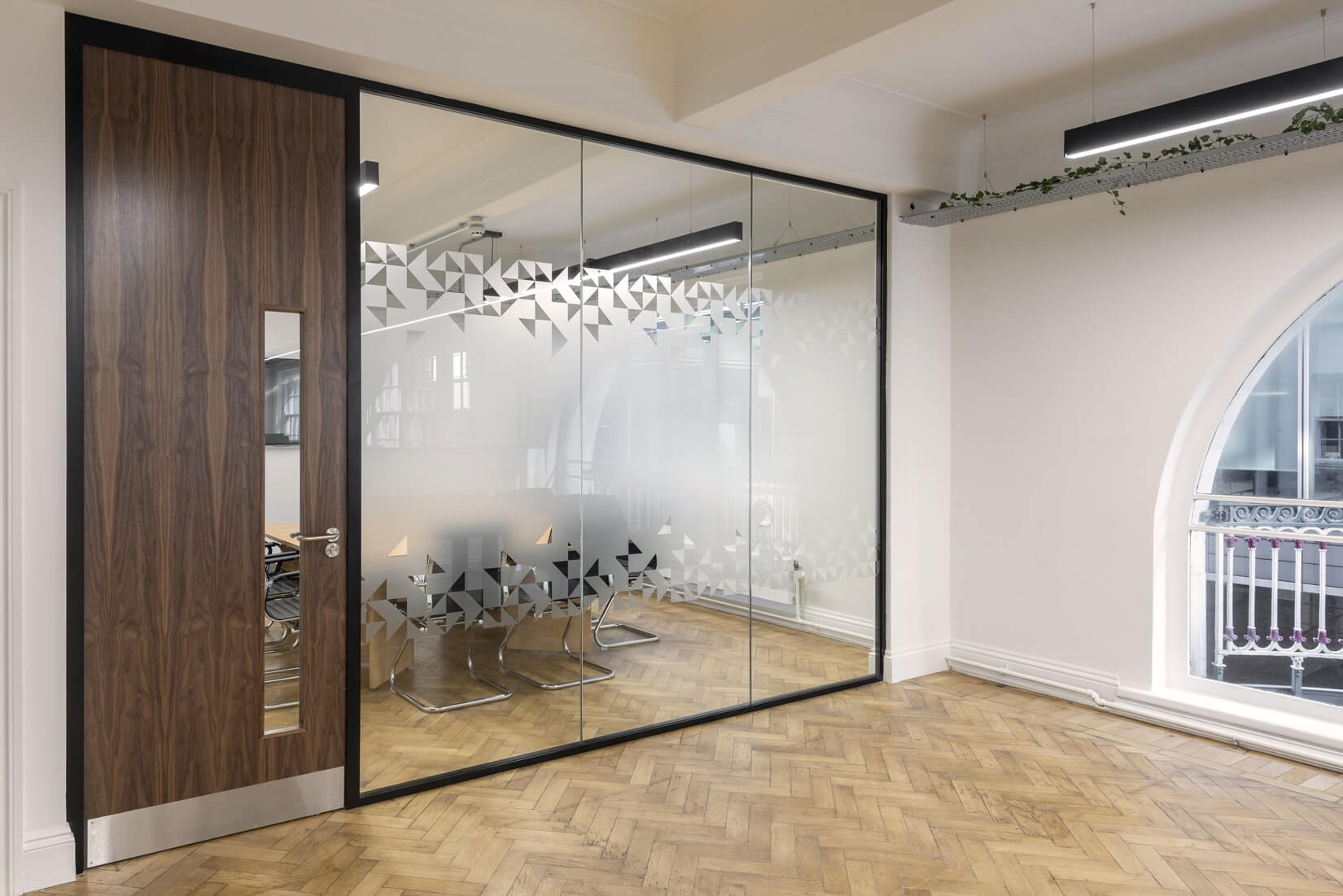

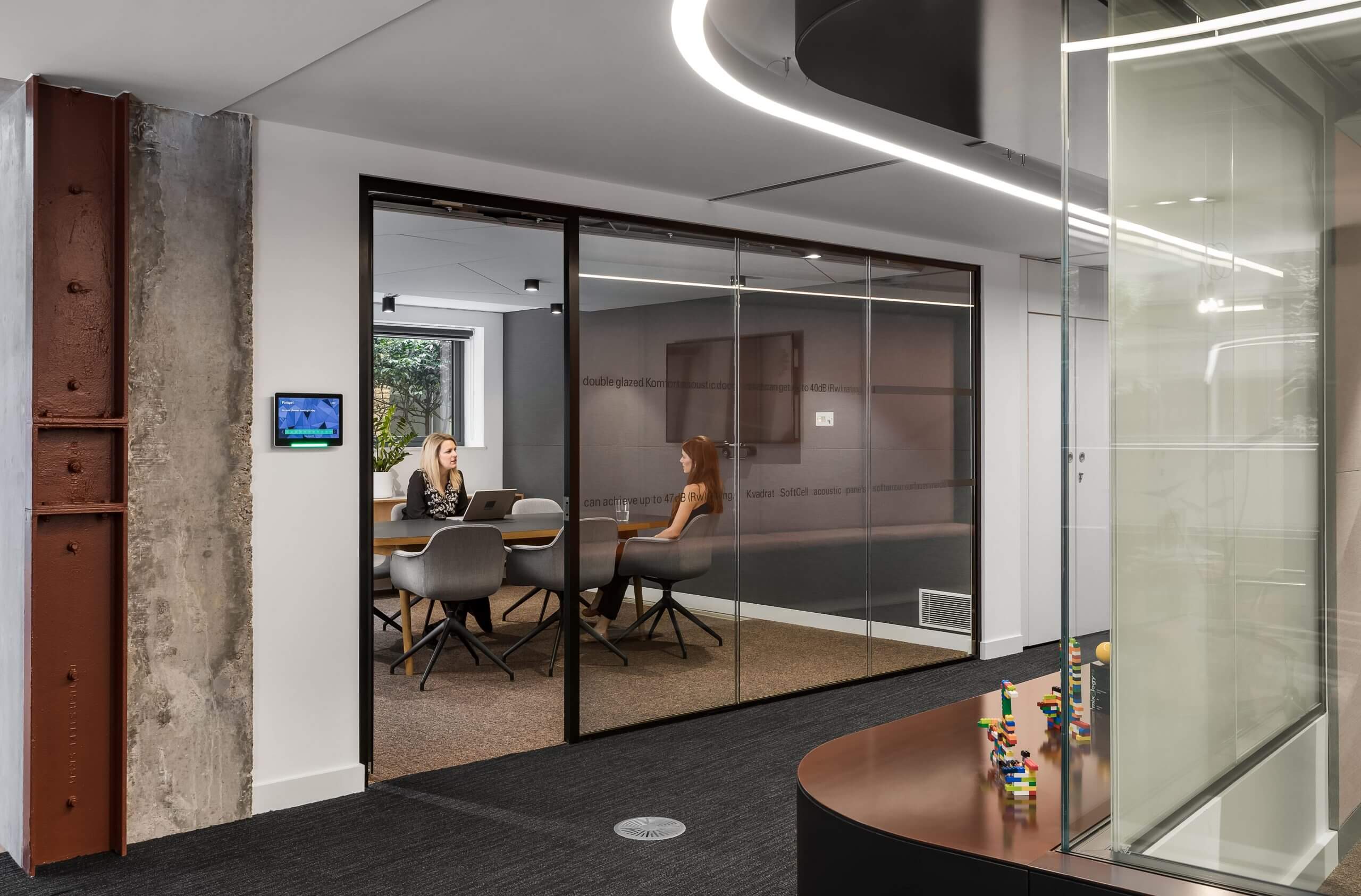

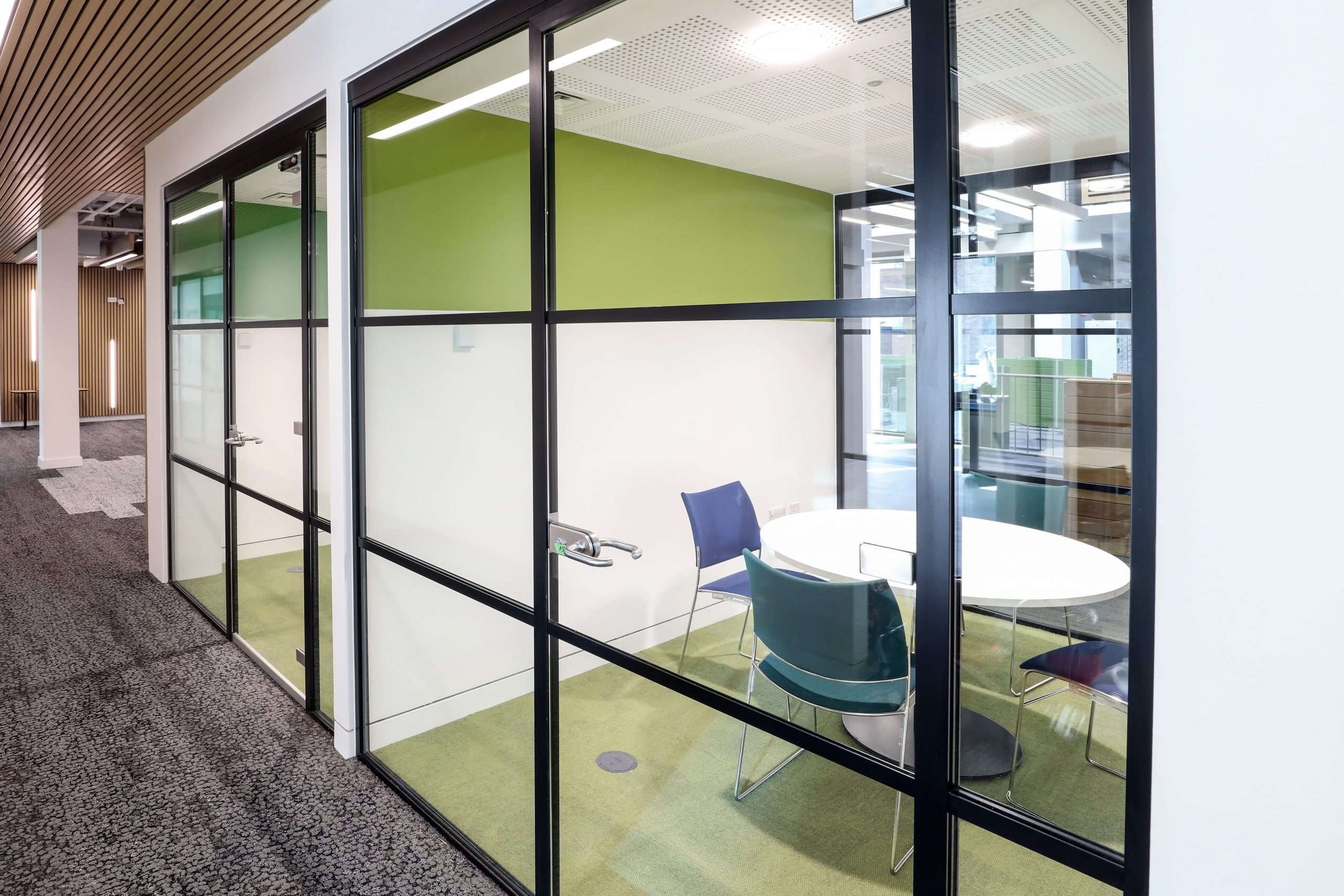

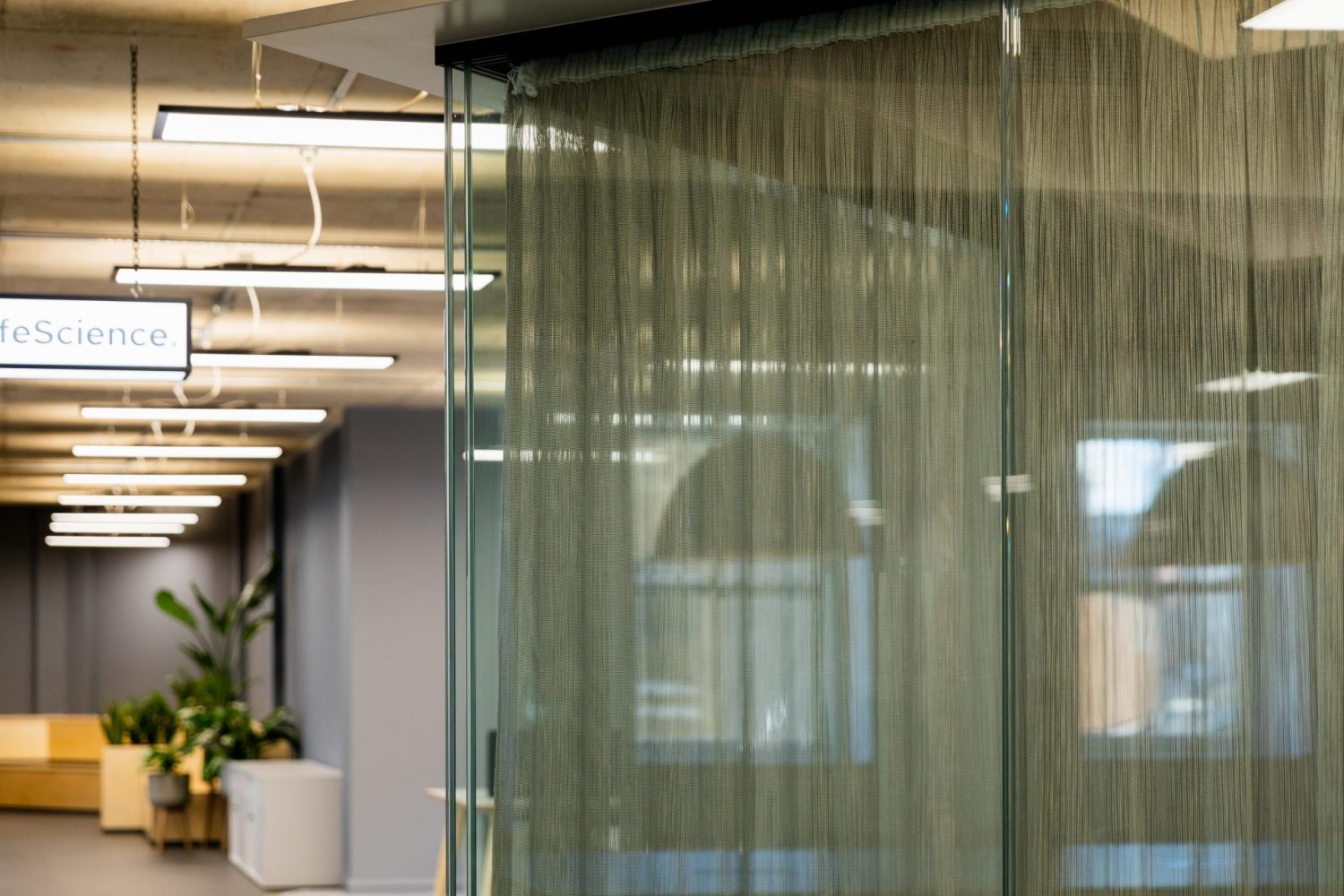

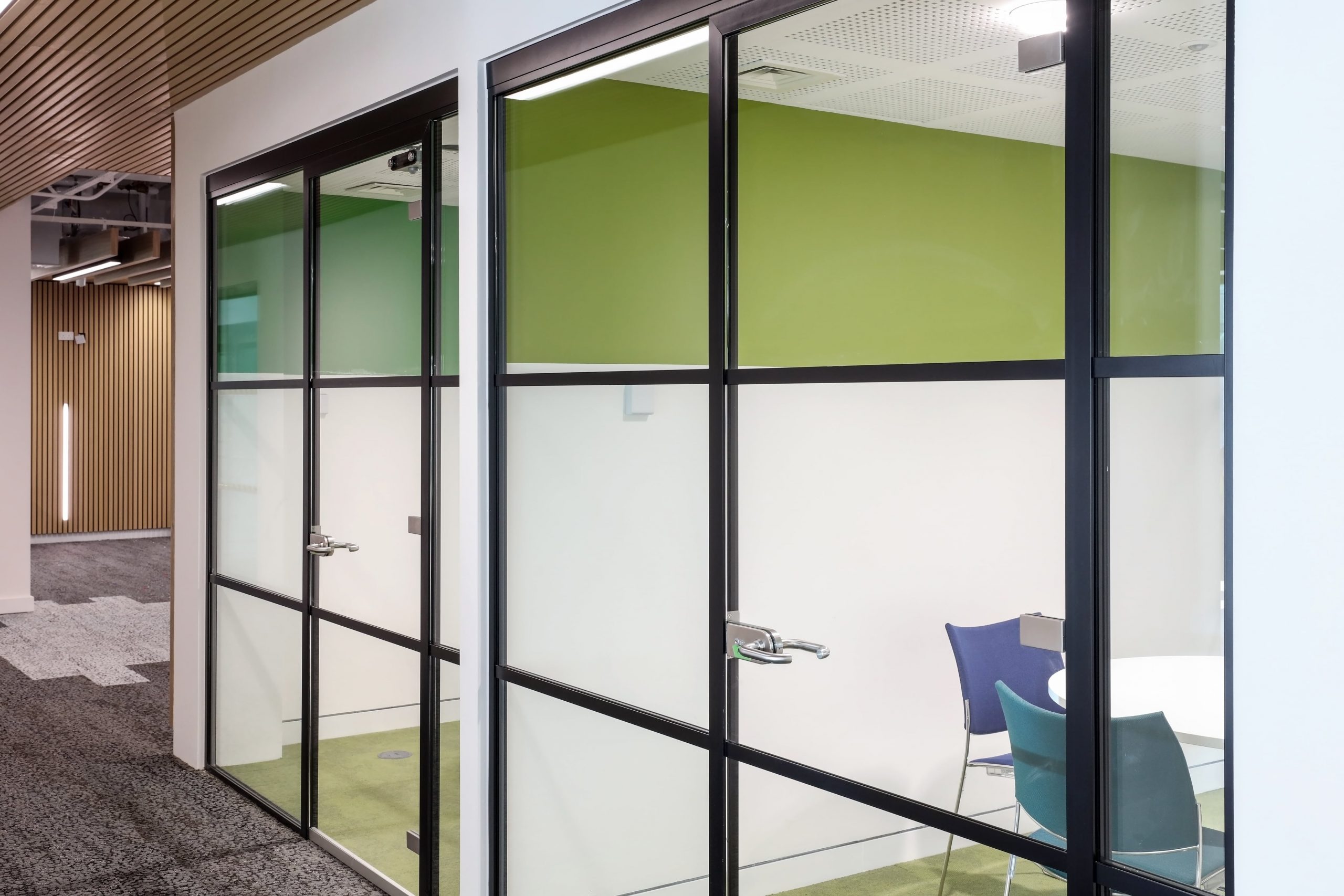

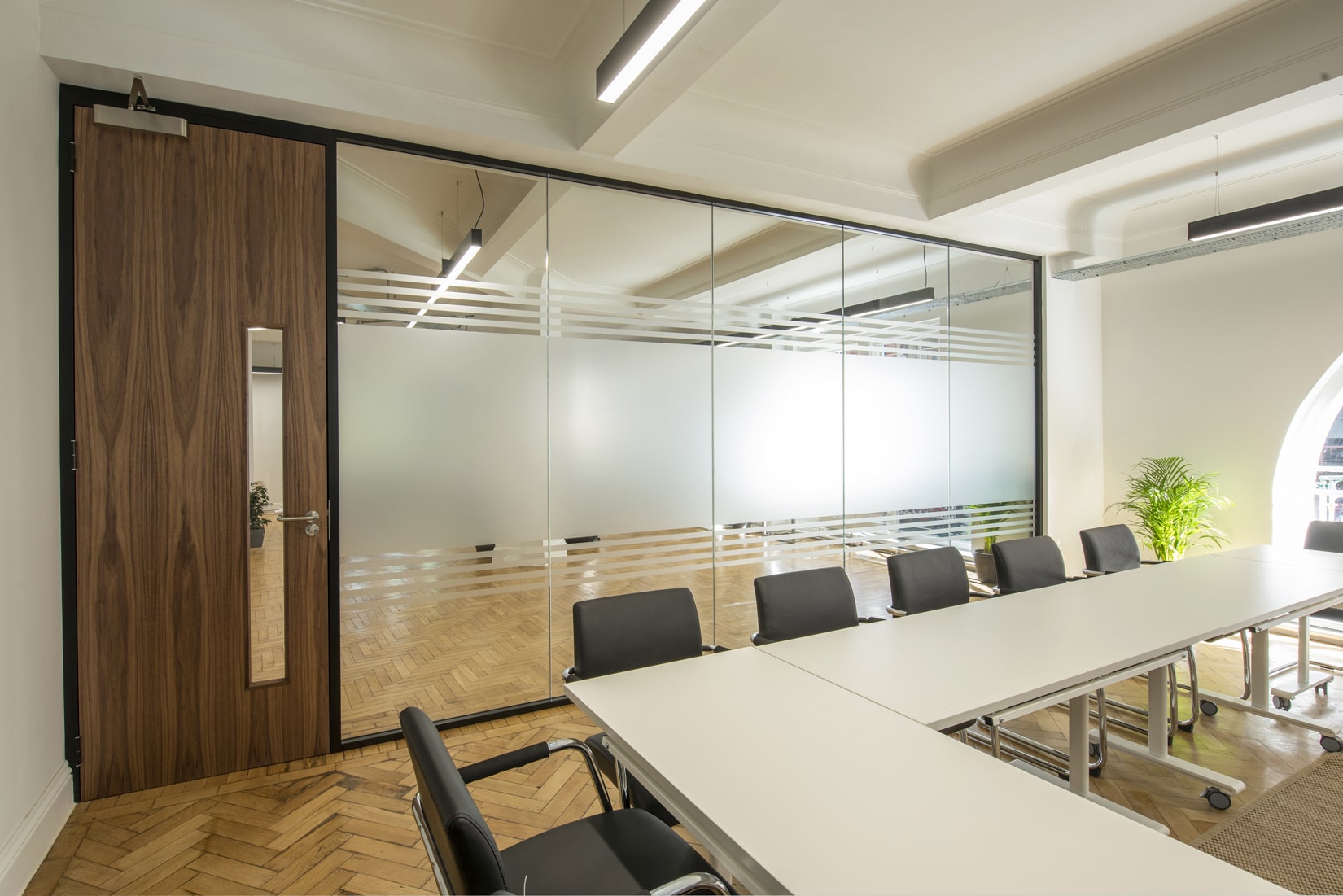

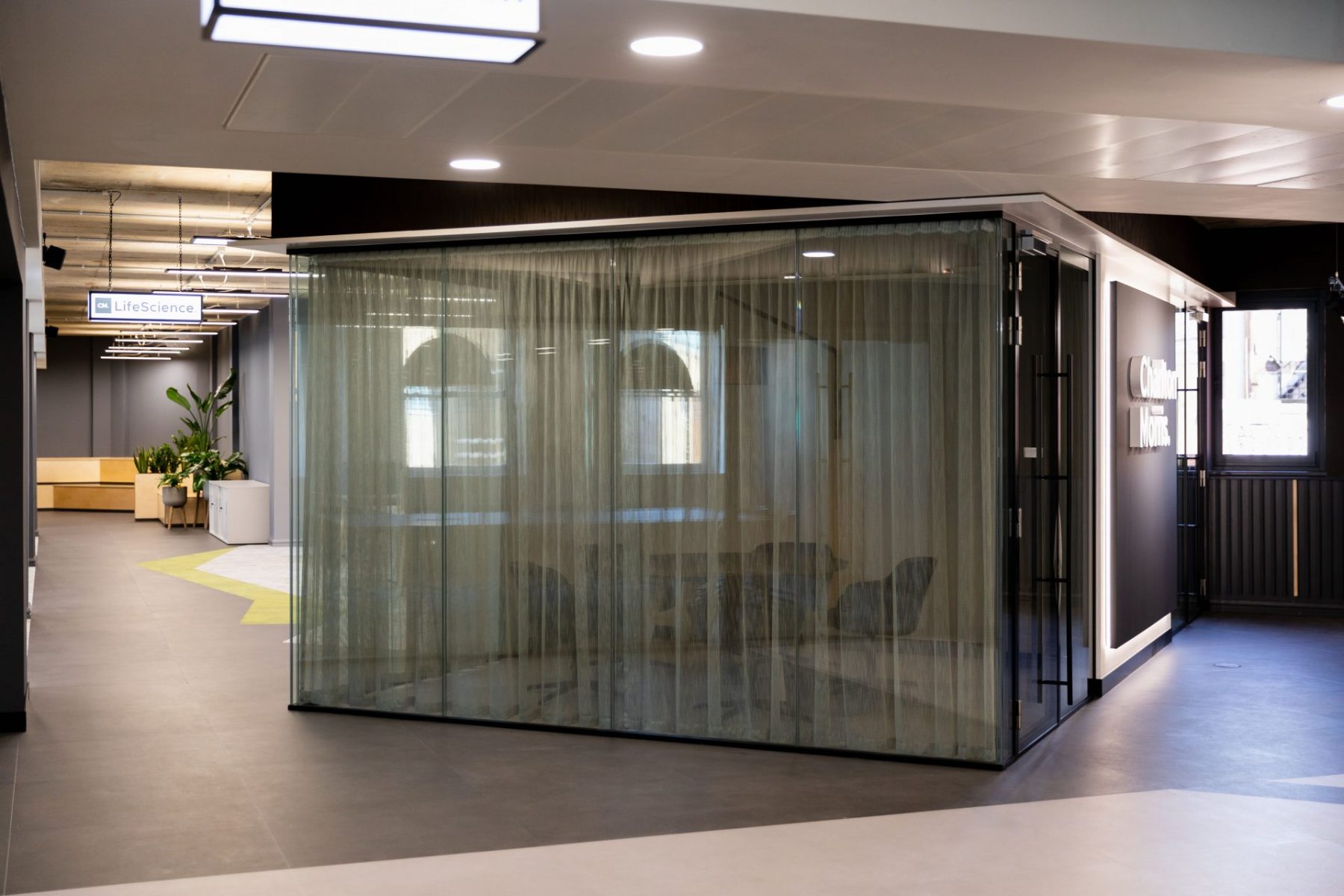

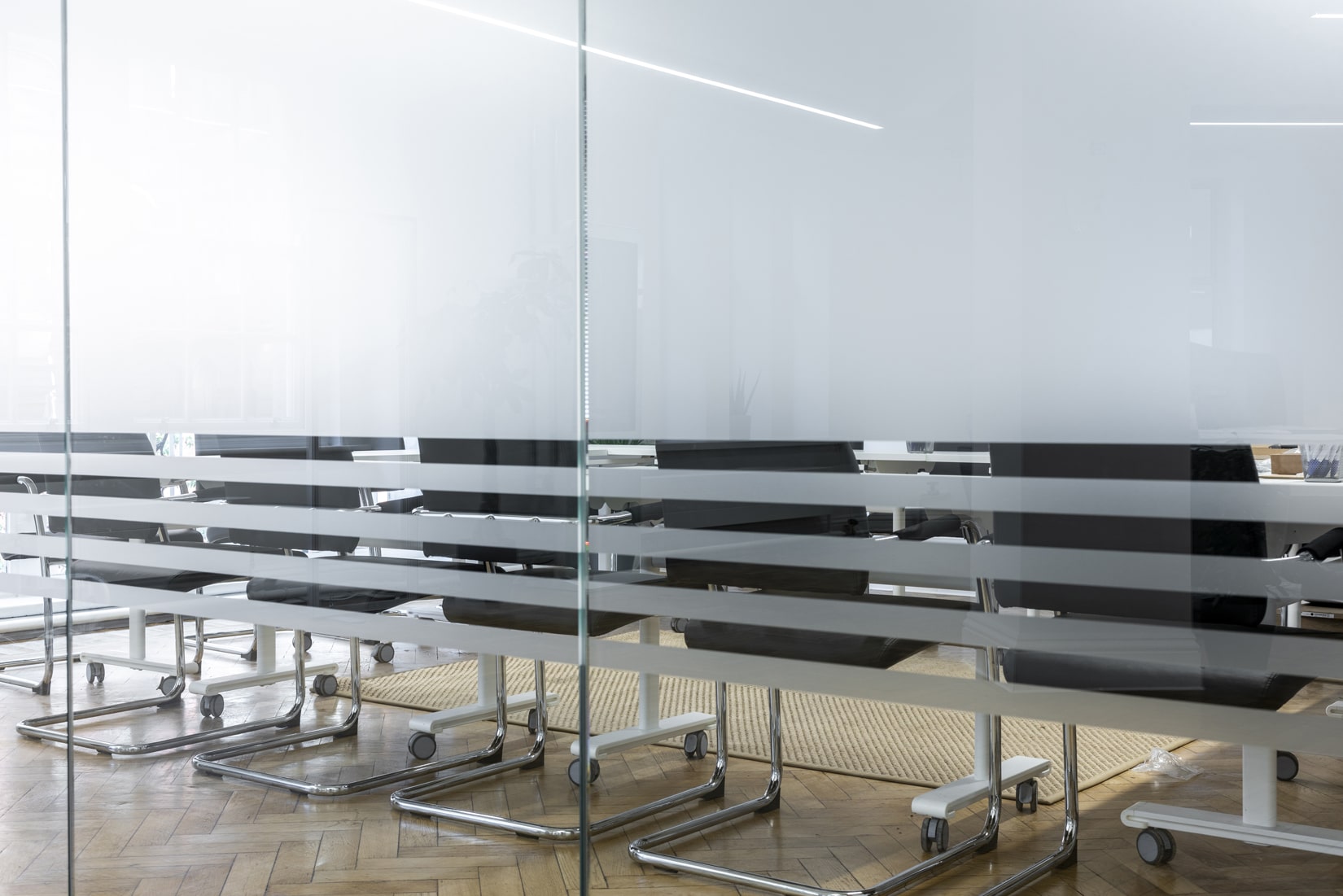

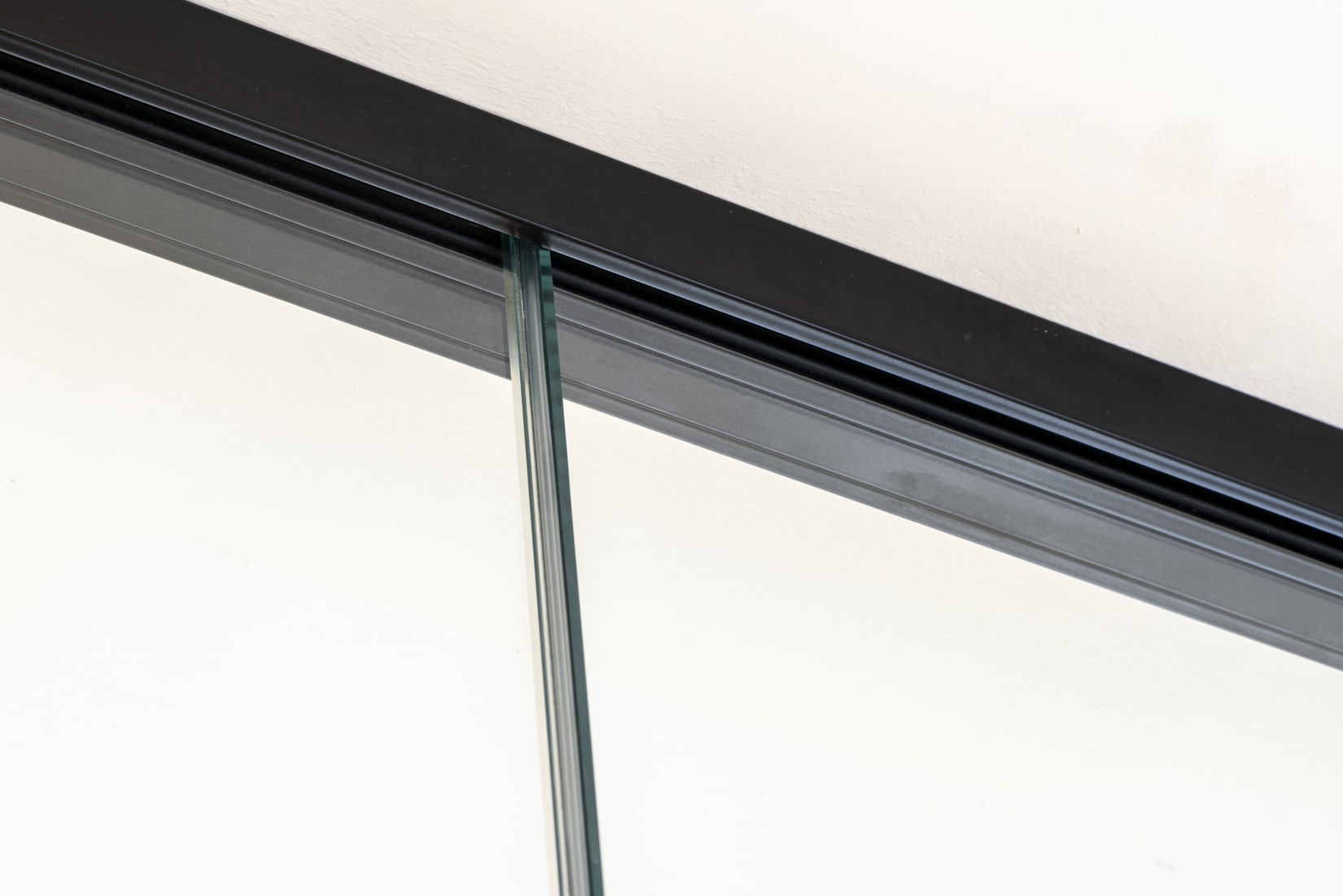

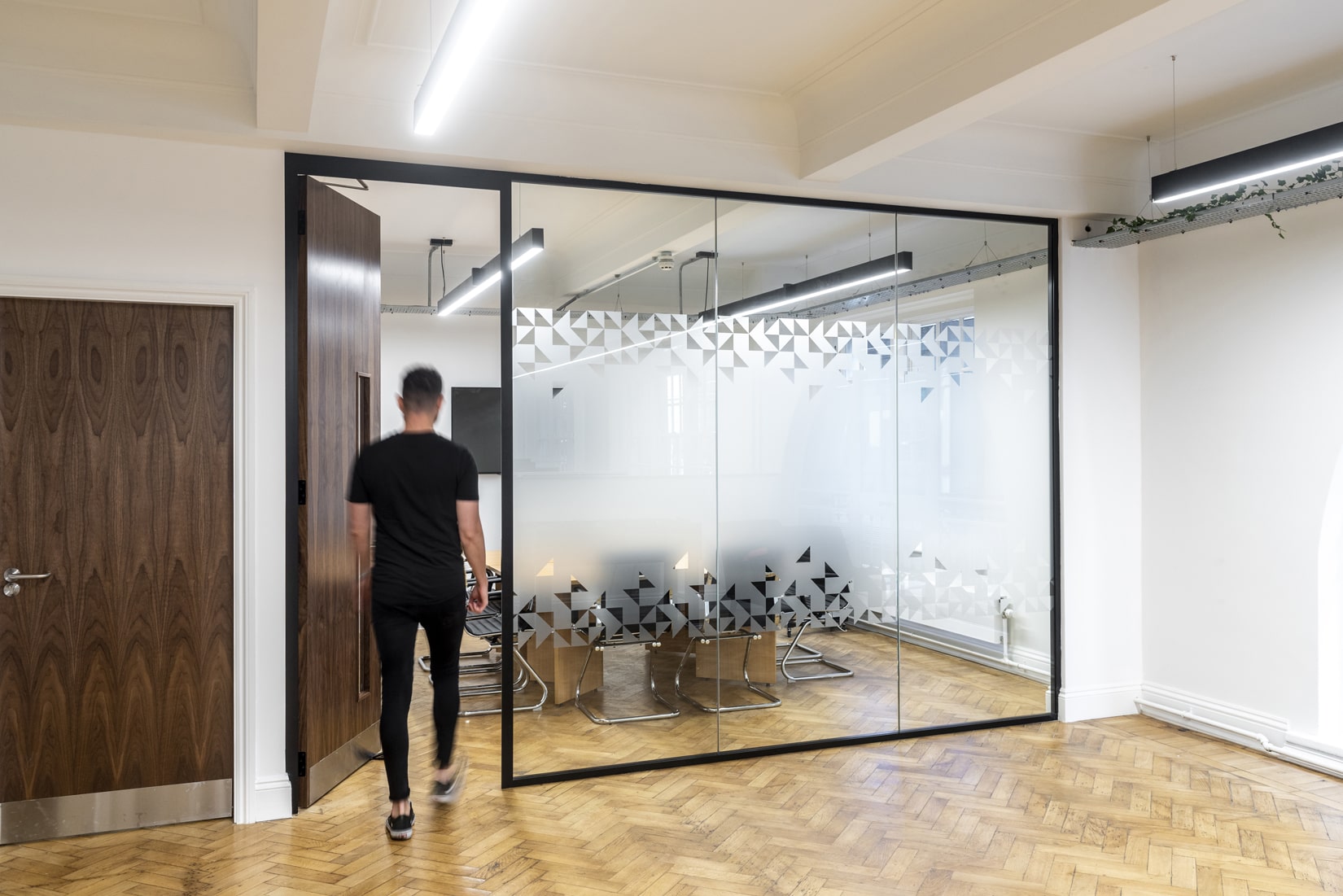

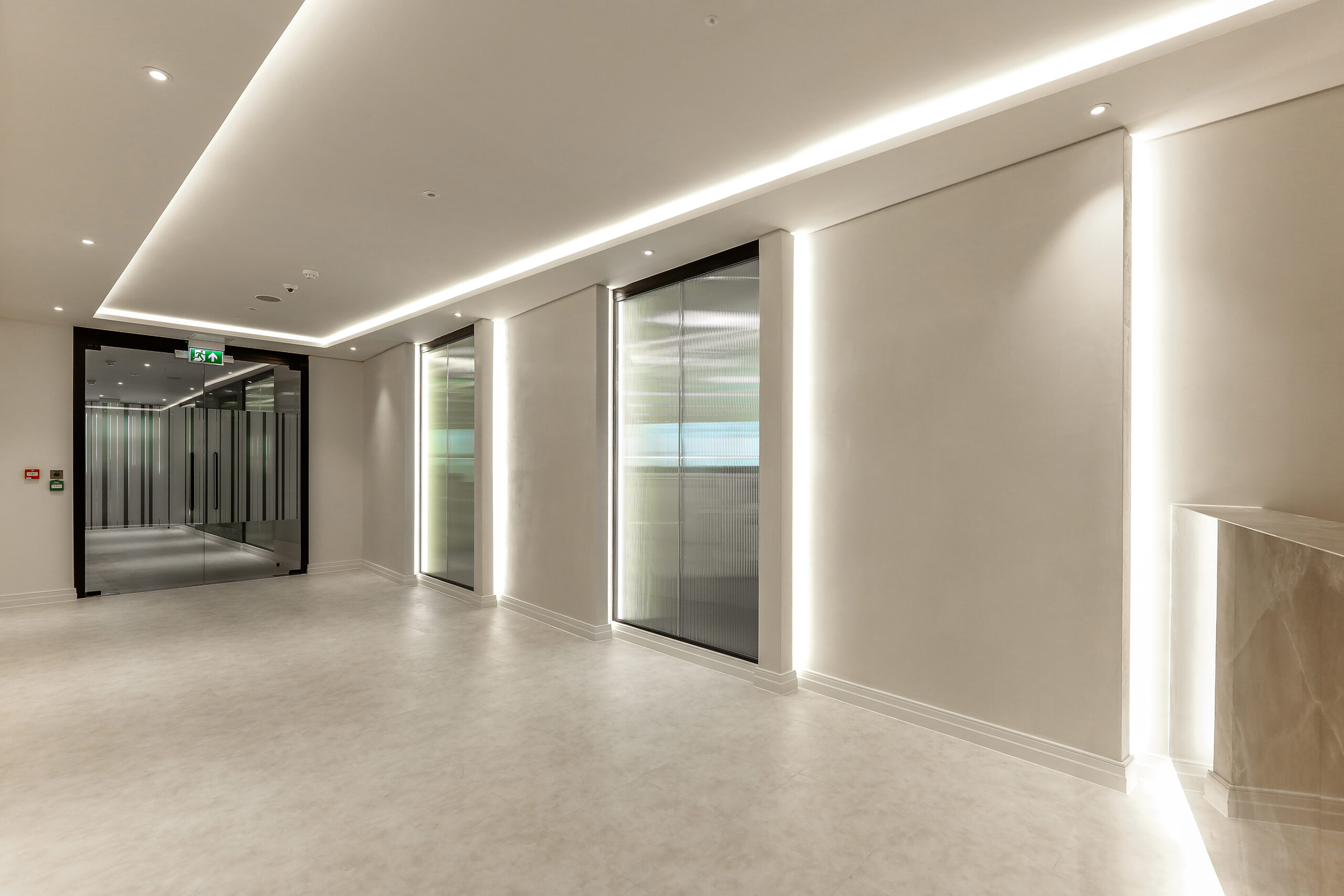

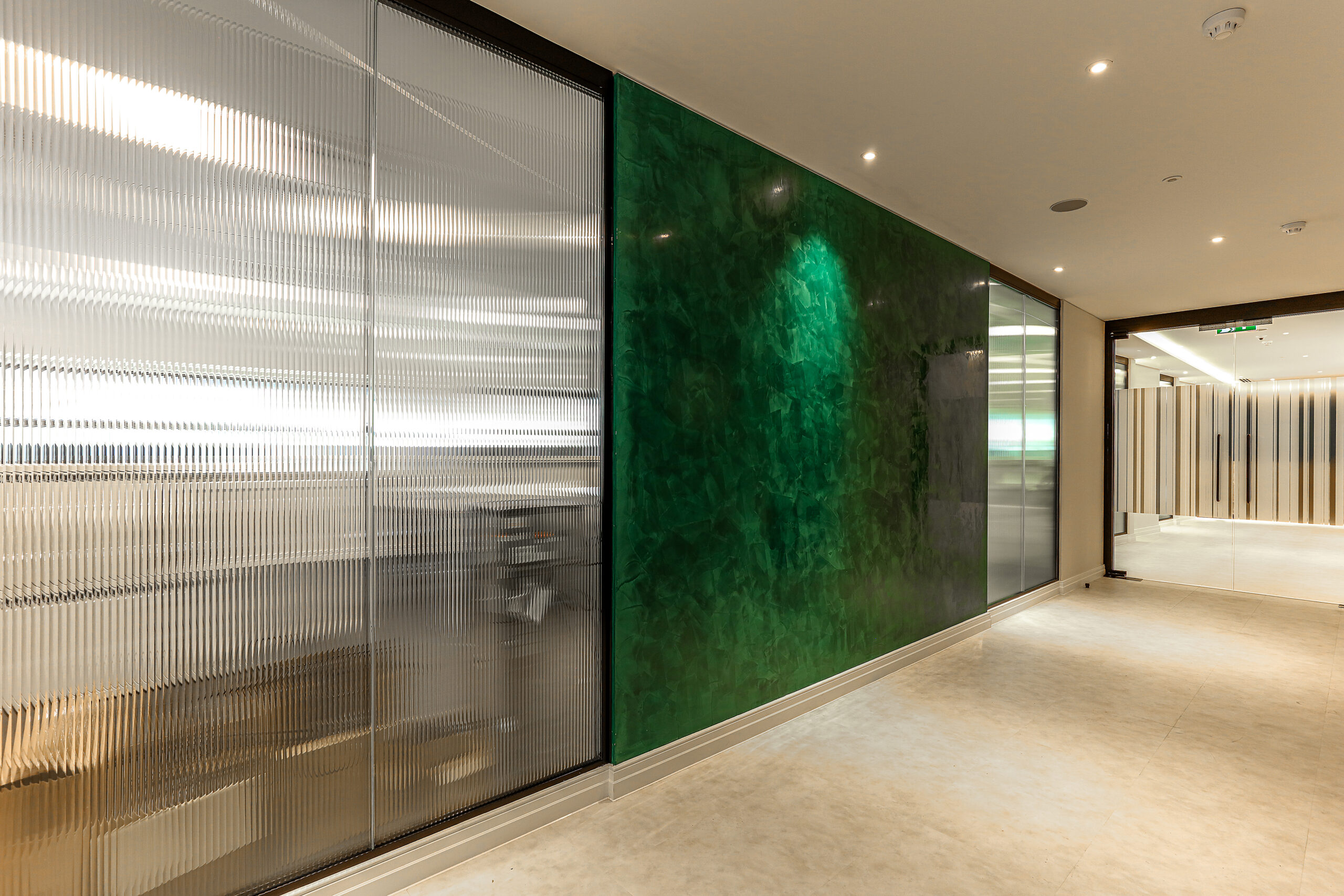

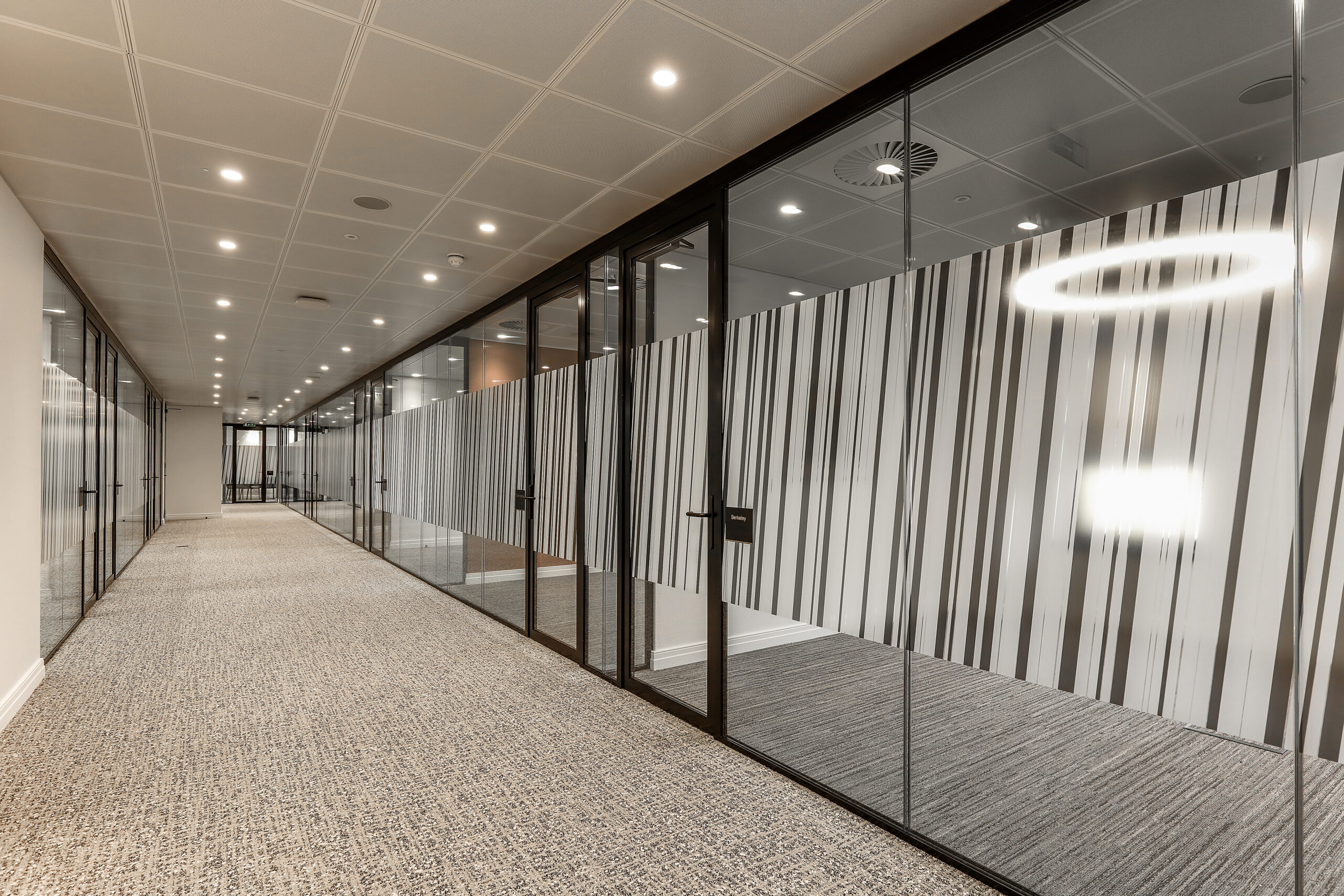

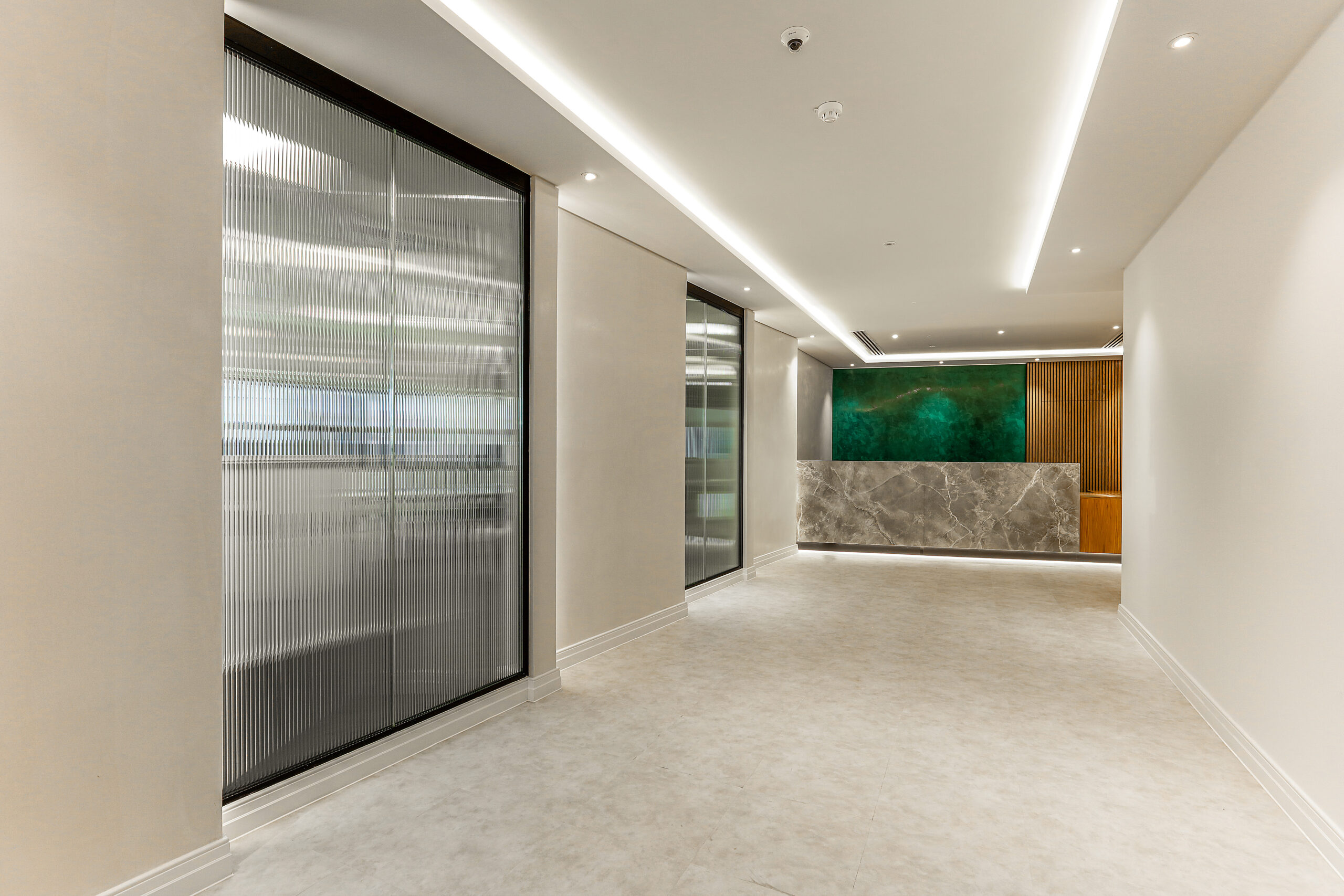

Polar 54 Gallery

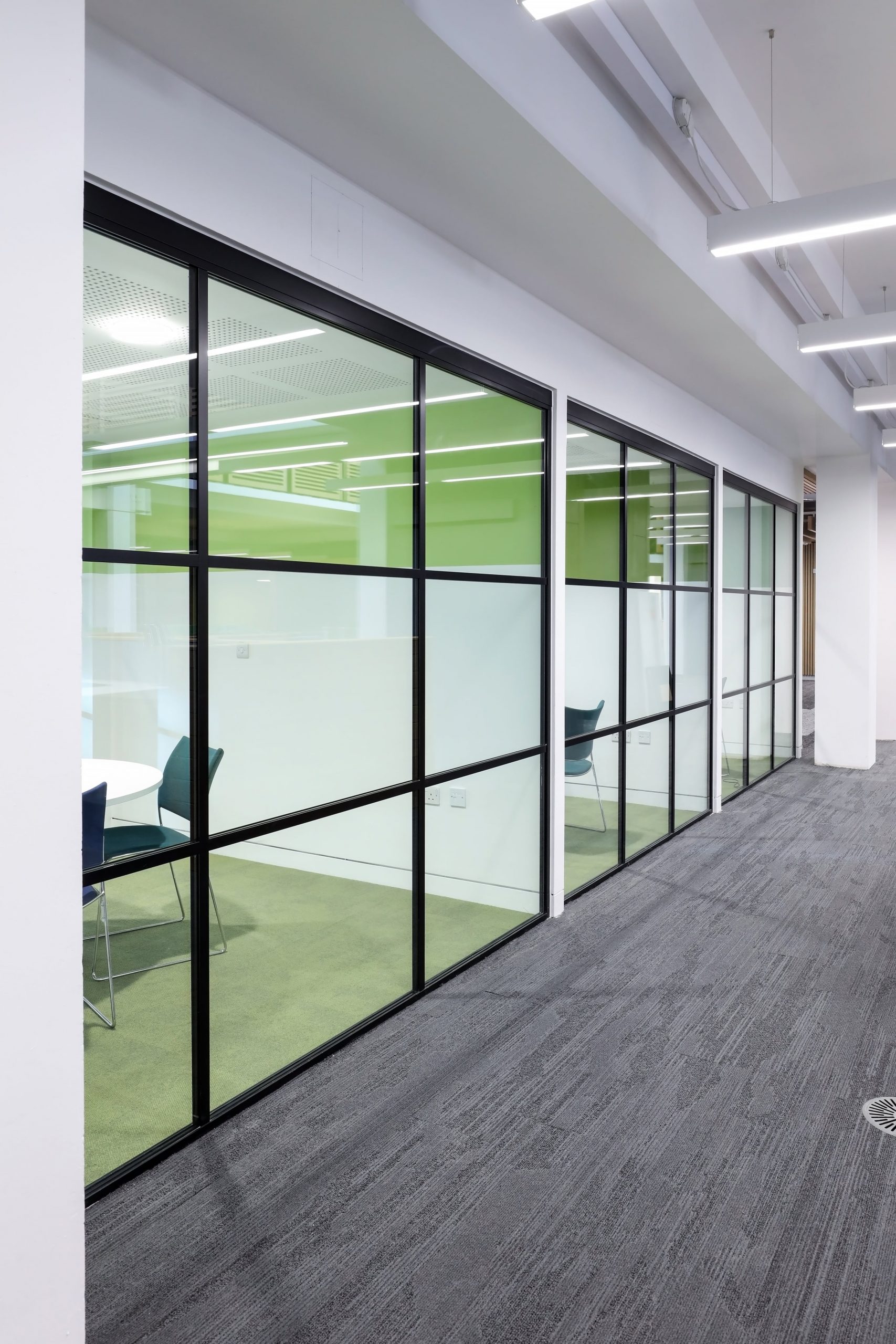

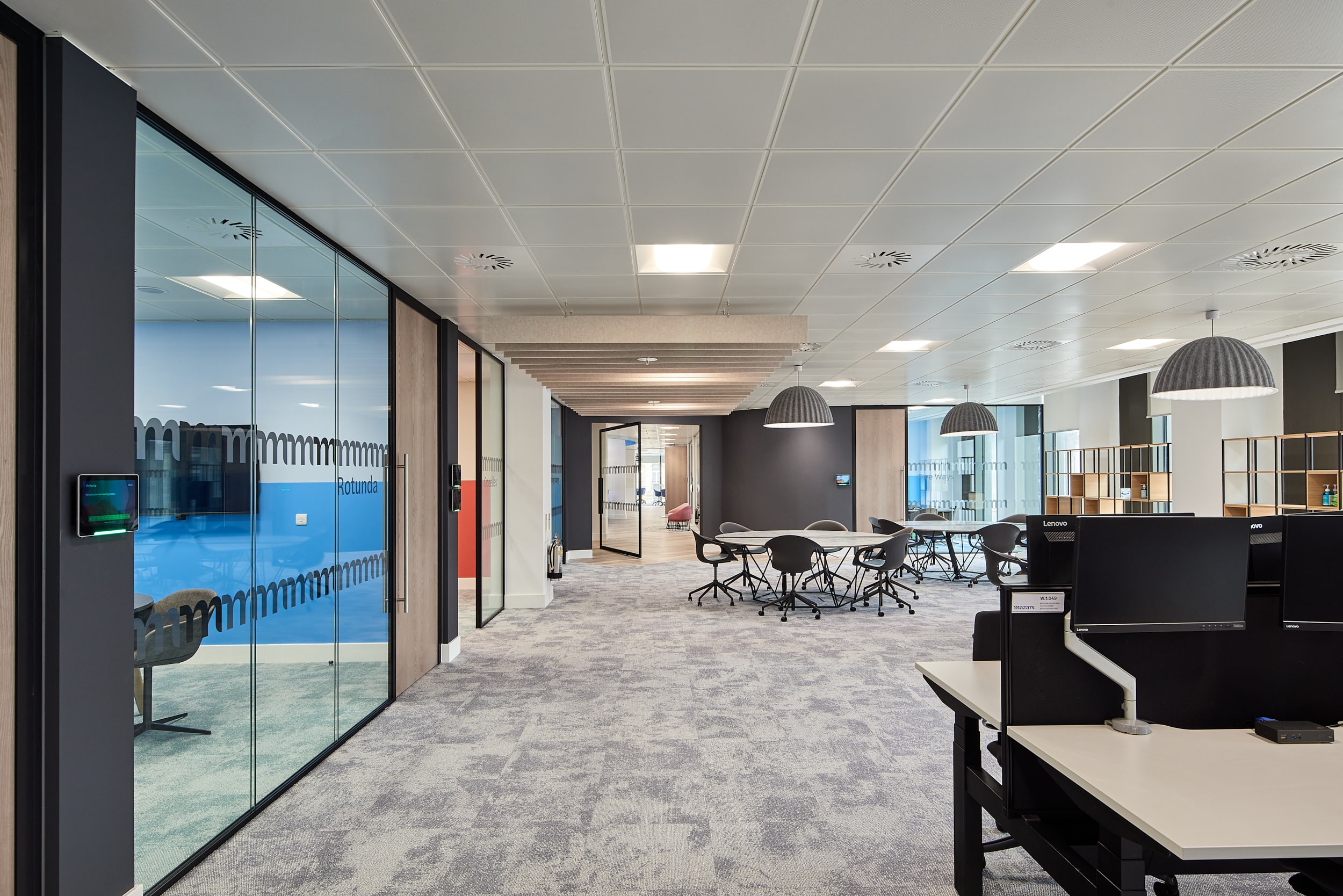

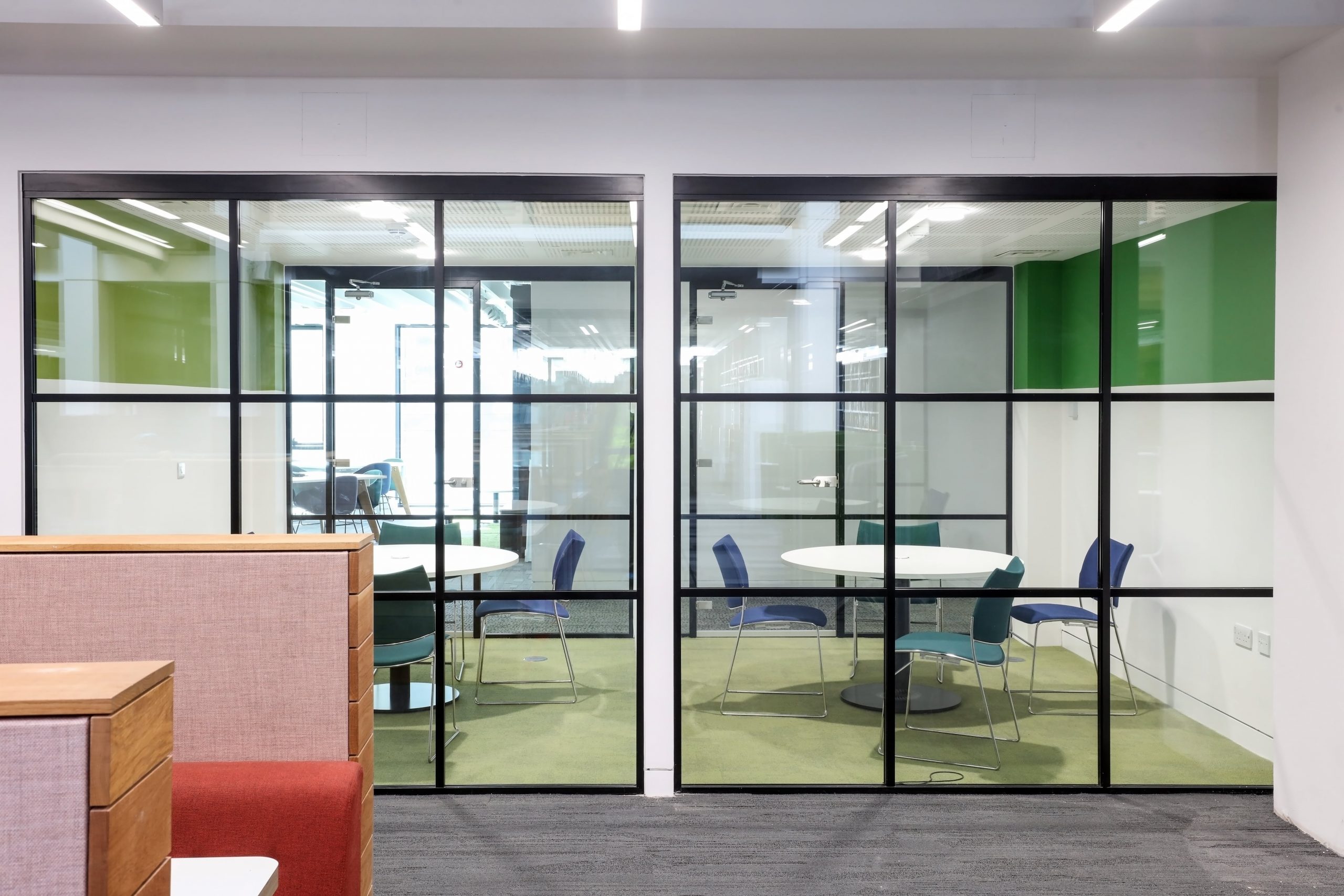

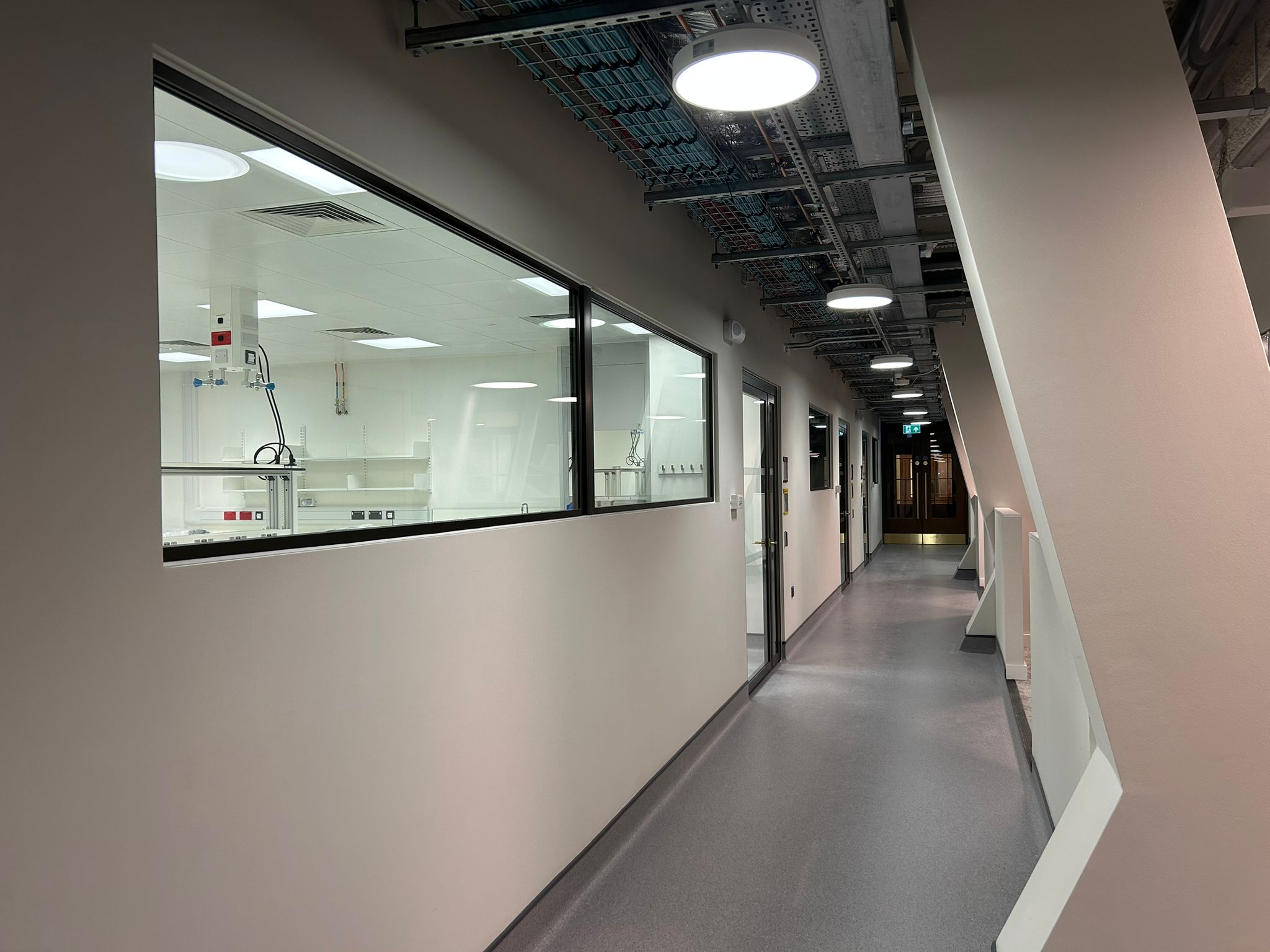

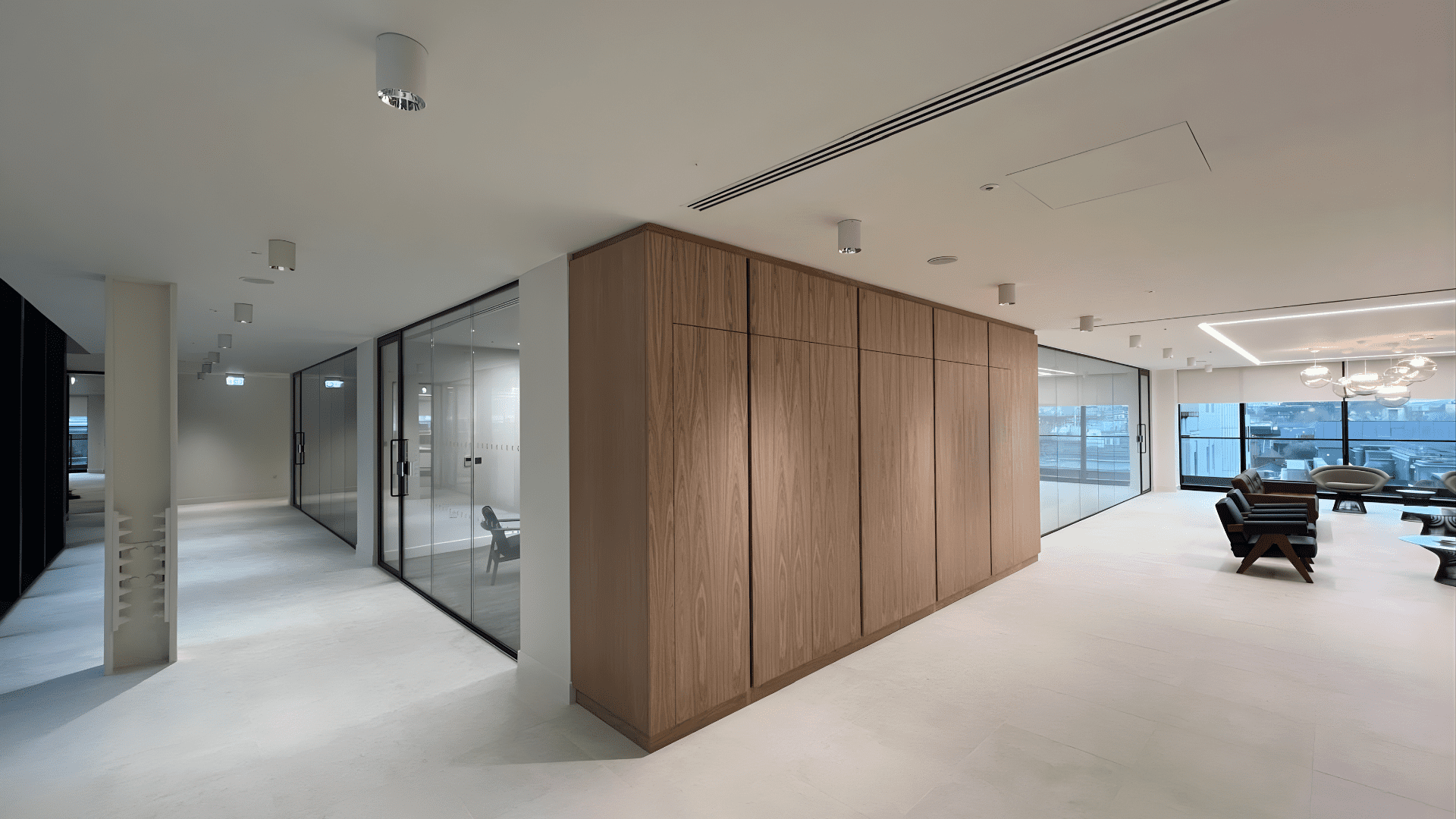

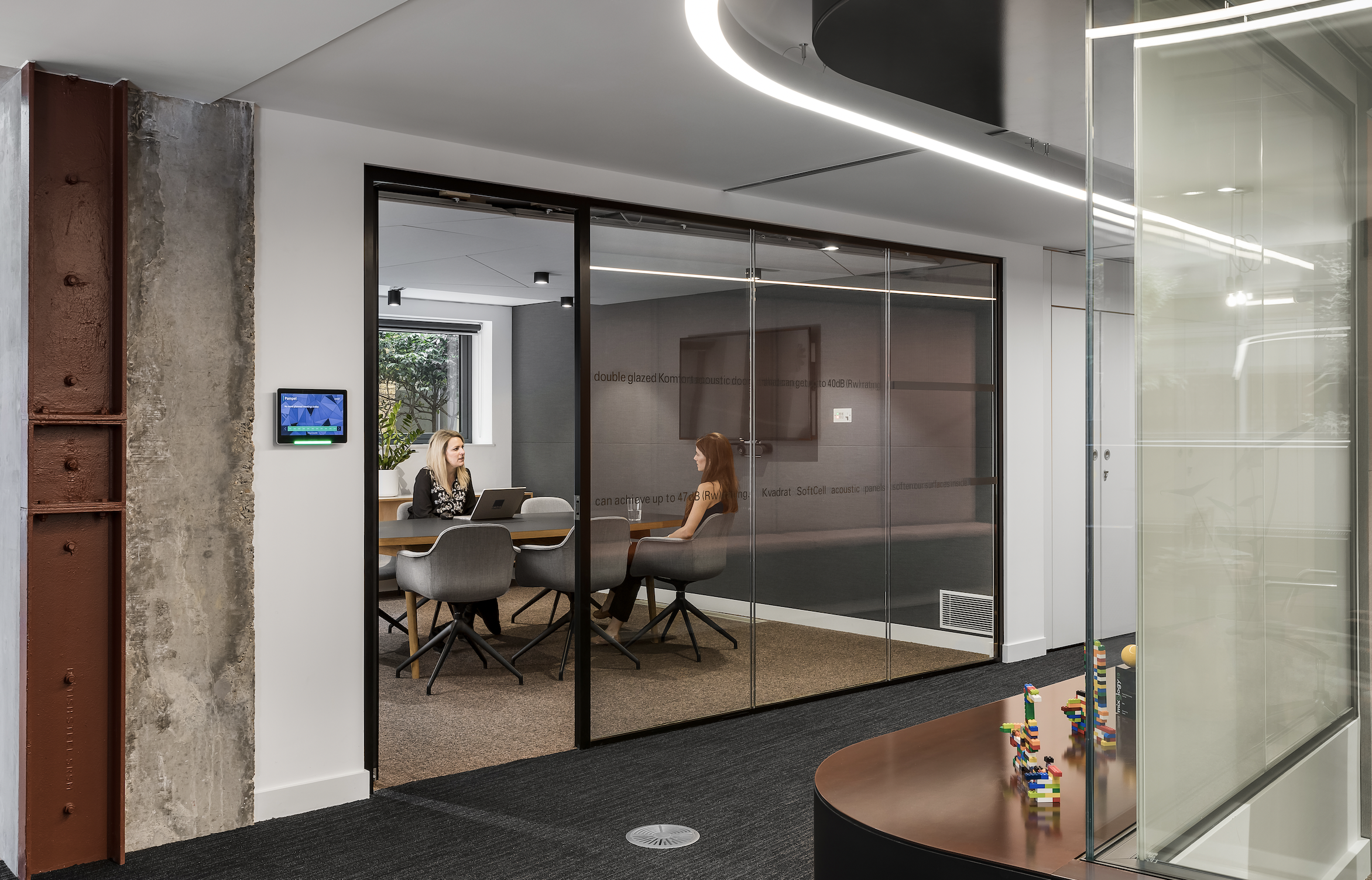

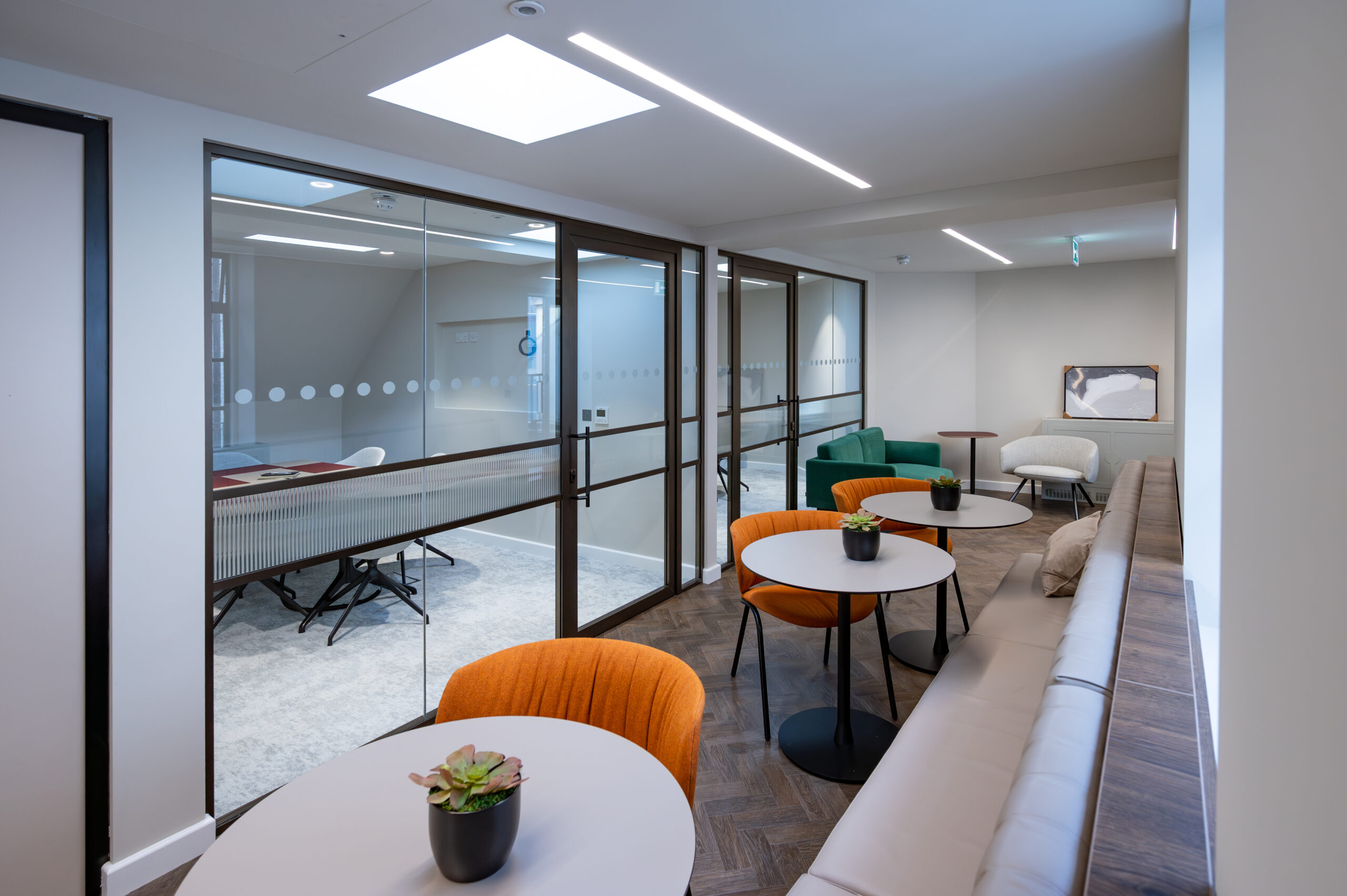

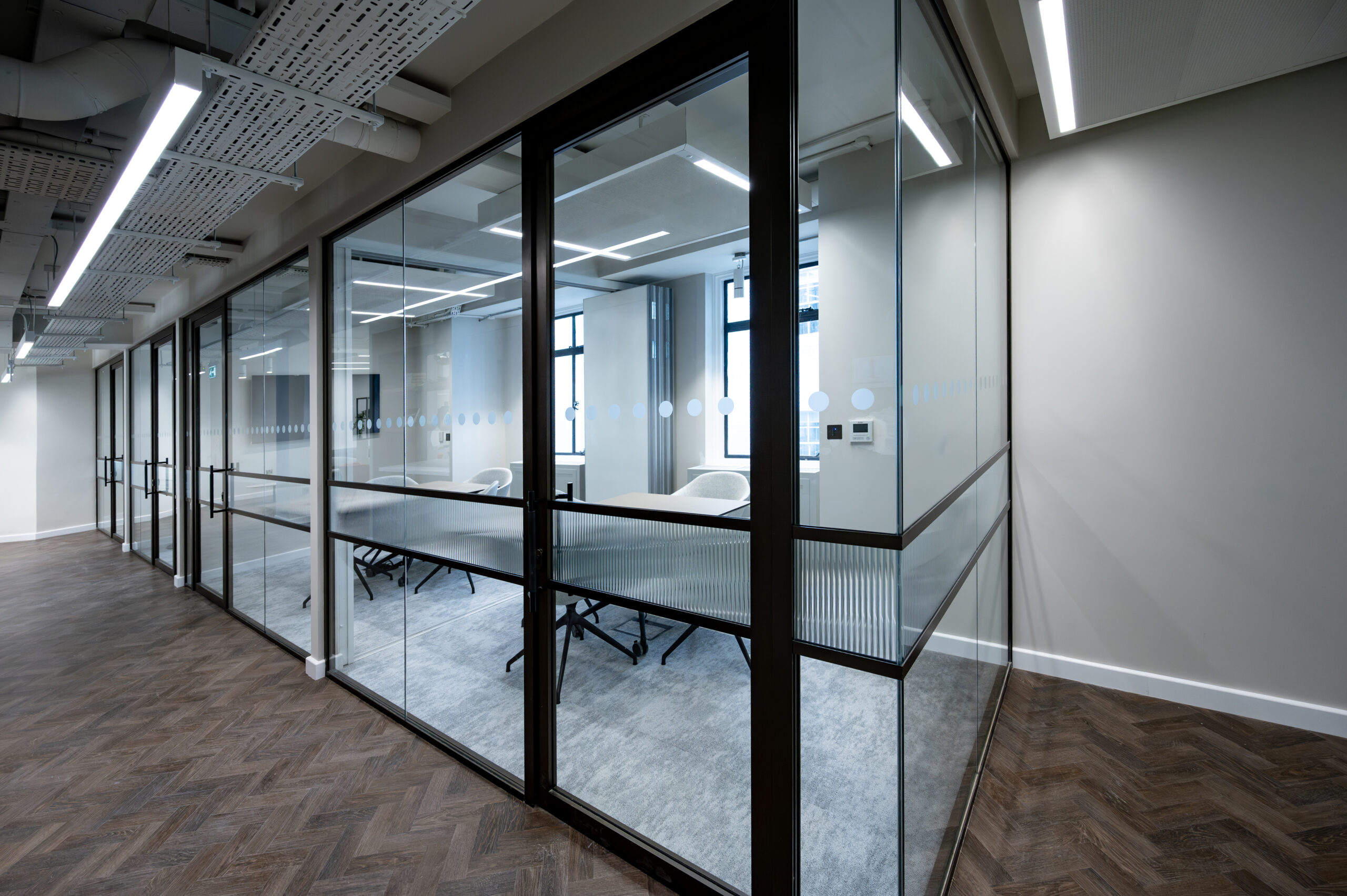

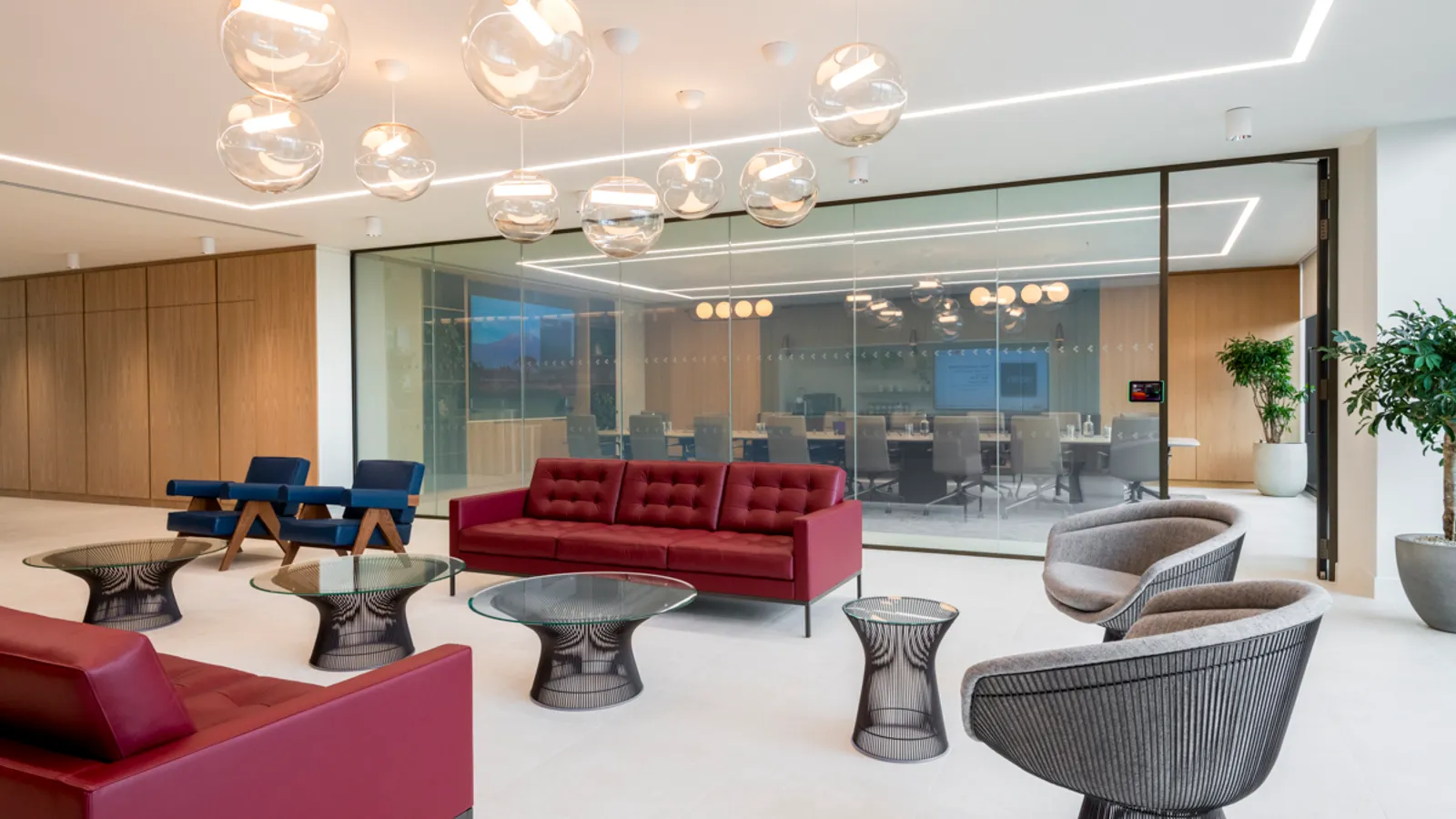

Case Studies using Polar 54 Partitioning
