Polar 101 Double Glazed Partitioning System

Komfort Brochure Download
Datasheet
Technical Downloads

With an intrinsic focus on designing equal frame sight lines, our new Polar range offers an array of stunning, frameless glass office partitioning systems. Equal frame sight lines deliver on aesthetics but also allow each system to be fully complementary of one another and work as one, giving you ultimate flexibility in choice.

Polar 101 is Komfort’s superior double glazed office partition system which achieves our highest acoustic rating for when performance requirements are stringent. This system is available in a range of glass options and can be customised to meet unique requirements.

Introduced to meet the needs of busy working spaces, this system delivers unparalleled performance and beauty in design.

SYSTEM SPECIFICATION

The Polar 101 double glazed partition system is the ultimate choice when acoustic and structural performance requirements are stringent. This system achieves our highest acoustic rating of 54dB (Rw) and can accommodate a range of customisable glass options. The offset profile takes 15mm-17.5mm glass on one side and 10-14.8mm on the other.

Similar to Polar 100, using the snap-in profile Polar 101 can fit a third pane of glass, a mesh panel, an LED screen and more. Polar 101 is compatible with Komfort’s Sonik, glazed and timber doors and can seamlessly be integrated with stud partitioning using Komfire wrap around reducers and wrap around door frame. For an industrial aesthetic, this system is available with a range of Kross Glaze options including internal only and internal with applied bars.

0dB (Rw)
Acoustic rating
0mm
Maximum height
0mm
Maximum module width

Polar 101 Double Glazed Glass Partitioning at a Glance

Technical Downloads

Dimensions:
Screen height – up to 3600mm
Doorset height – up to 3000mm
Track width – 100mm
Track height – 32mm

Fire ratings:
N/A

Acoustics:
Up to 54dB (Rw)

Structure:
Up to BS 6180 – 1.5kN

Deflection head:
+/-25mm

Door options:
10mm & 12mm Glass Doors
44mm & 54mm Timber Doors
44mm & 54mm Sonik Doors

Glass type options:
Side 1 Glass Options:
10mm or 12mm Toughened (25 or 30kg/m2)
13.5mm Toughened Laminated (34kg/m2)
10.8mm, 12.8mm or 14.8mm
Acoustic Laminated (27, 32 or 37kg/m2)
Side 2 Glass Options:
15mm Toughened (38kg/m2)
16.8mm Acoustic Laminated (42kg/m2)
17.5mm Toughened Laminated (44kg/m2)

Weight
(exc. nominal head & base)*:

Toughened glass:
10mm = 25kg/m2
12mm = 30kg/m2

Acoustic lam. glass:
10.8mm = 27kg/m2
12.8mm = 32kg/m2
14.8mm = 37kg/m2
16.8mm = 42kg/m2

Toughened lam.:
13.5mm = 34kg/m2
17.5mm = 43.75kg/m2

Compatible with:

  • Blinds

  • Manifestations

  • Graphics

  • SwitchGlass

  • Kross Glaze

Paint / finishes:

  • Polyester powder coat

  • Satin anodised aluminium

  • Special anodised finish

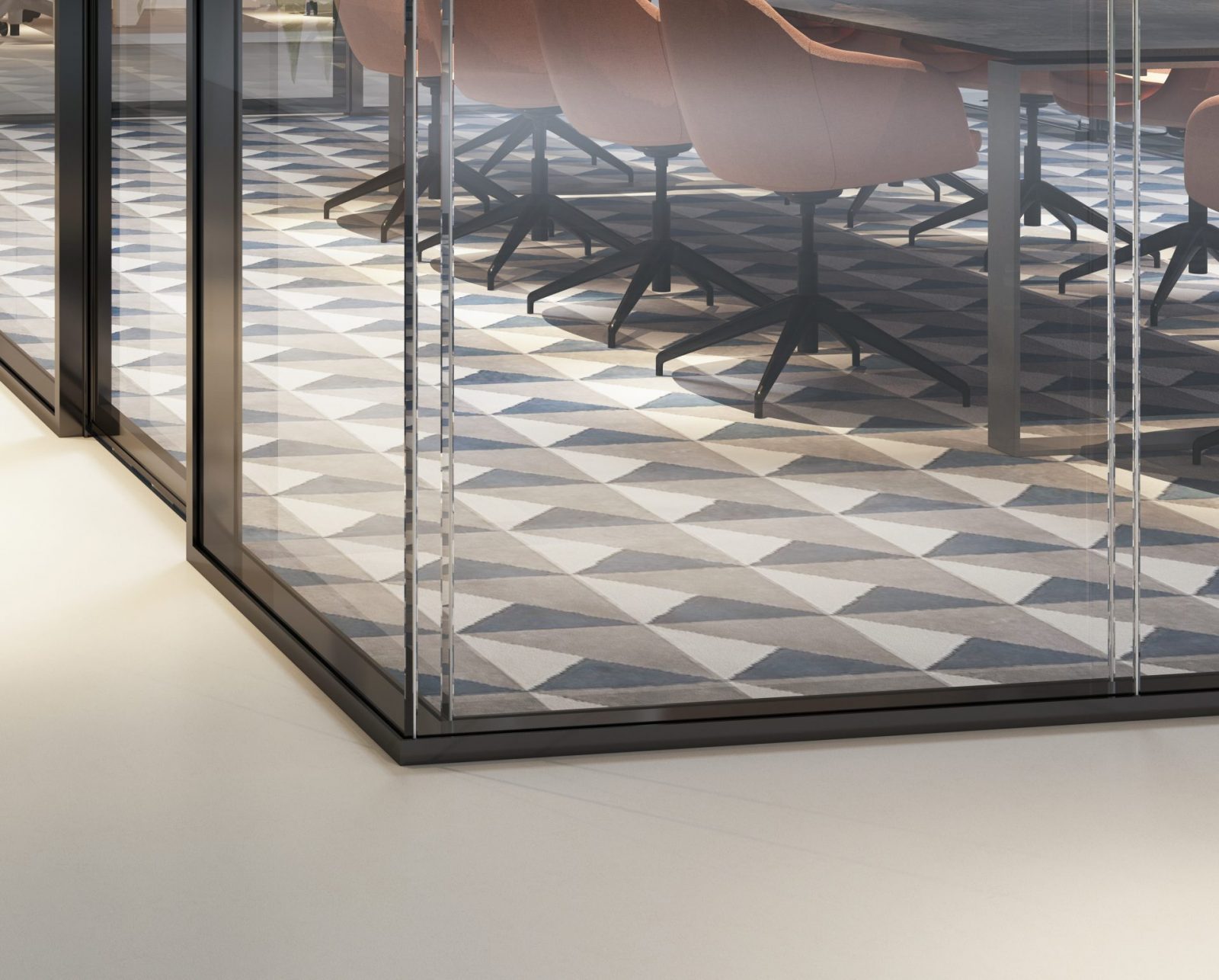

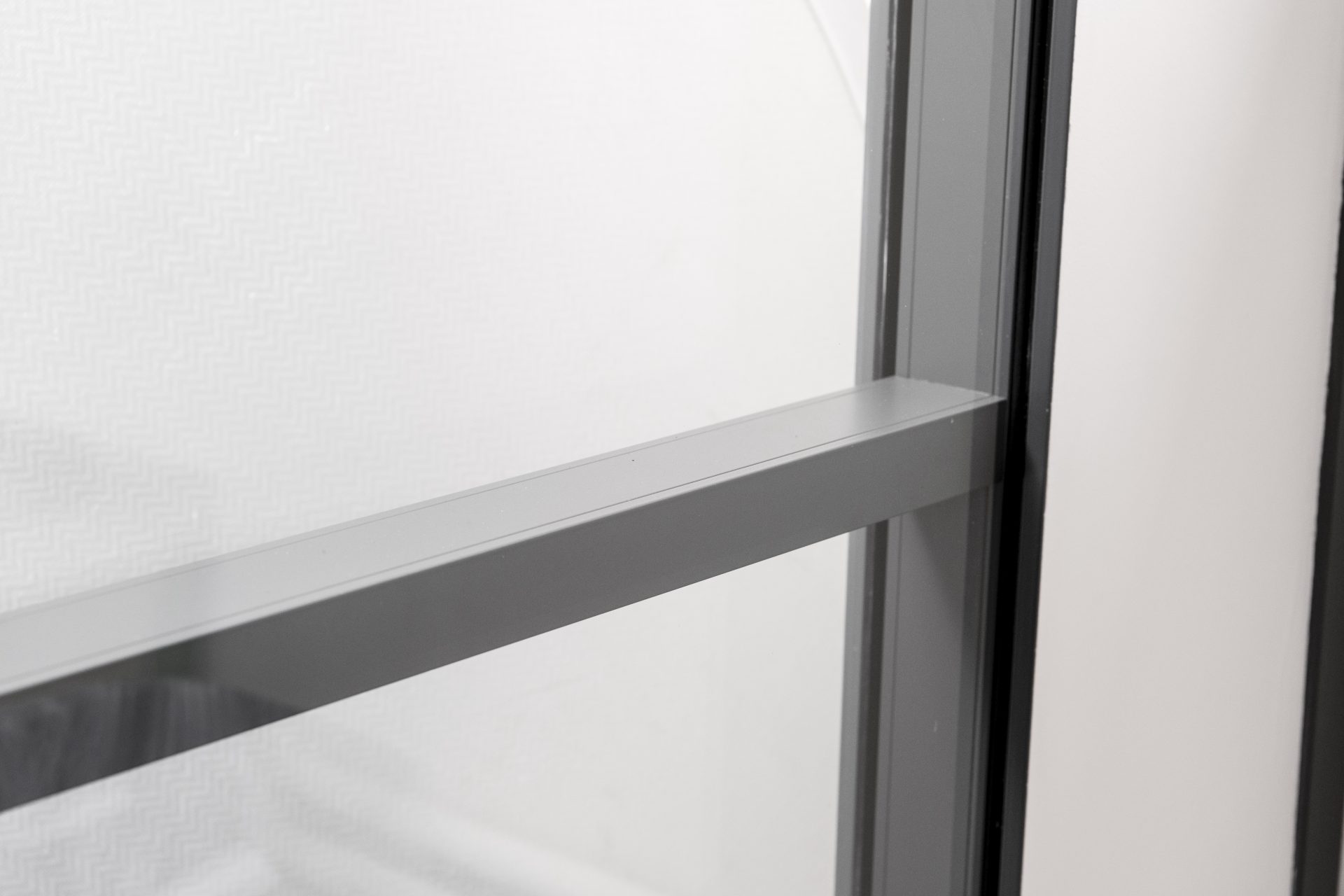

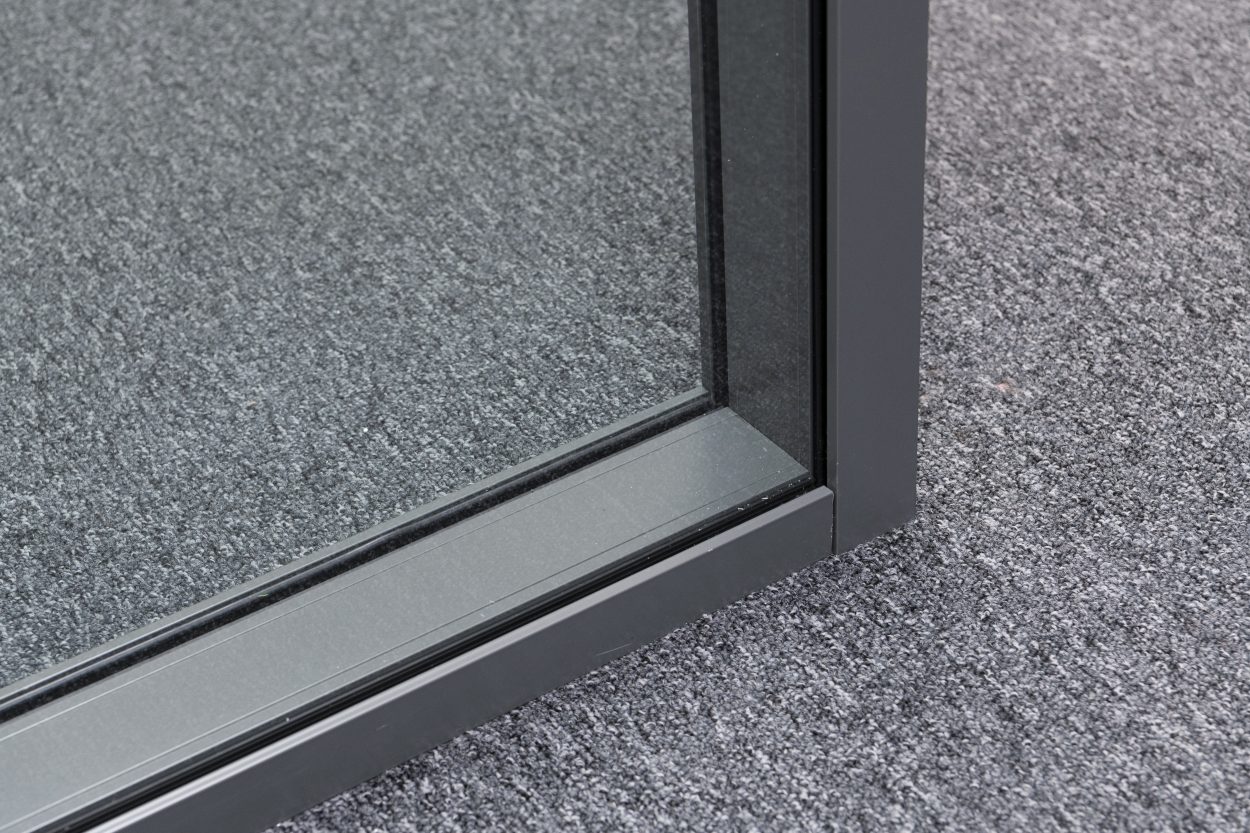

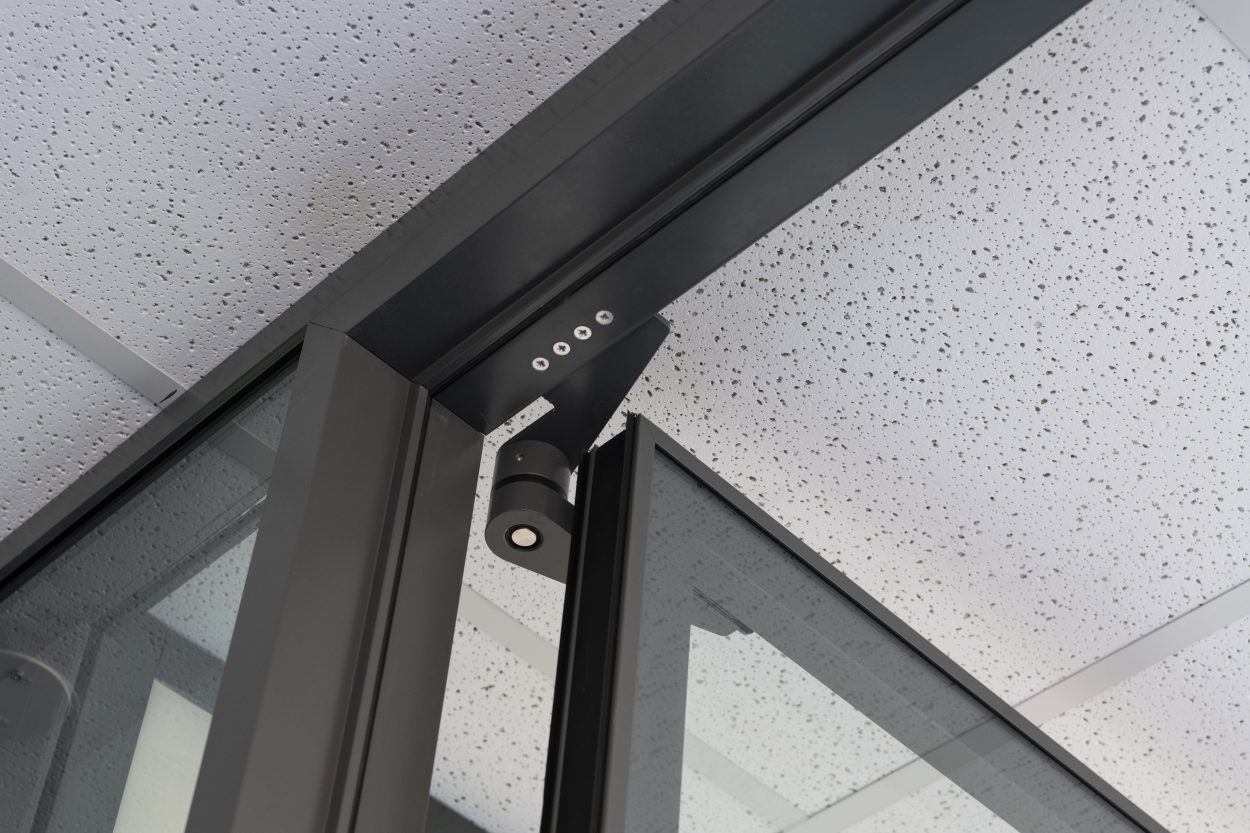

Polar 101 Gallery
