Kross Glaze 600 Partitioning System

Komfort Brochure Download
Technical Downloads

Kross Glaze is Komfort’s industrial style glazing which has led commercial and residential market trends over recent years with its contemporary Art Deco feel. This aesthetic is an intriguing and characterful way of dividing open-plan spaces into beautiful private areas. When balanced with contrasting natural materials, exposed brickwork and biophilic design, our Kross Glaze system comes to life.

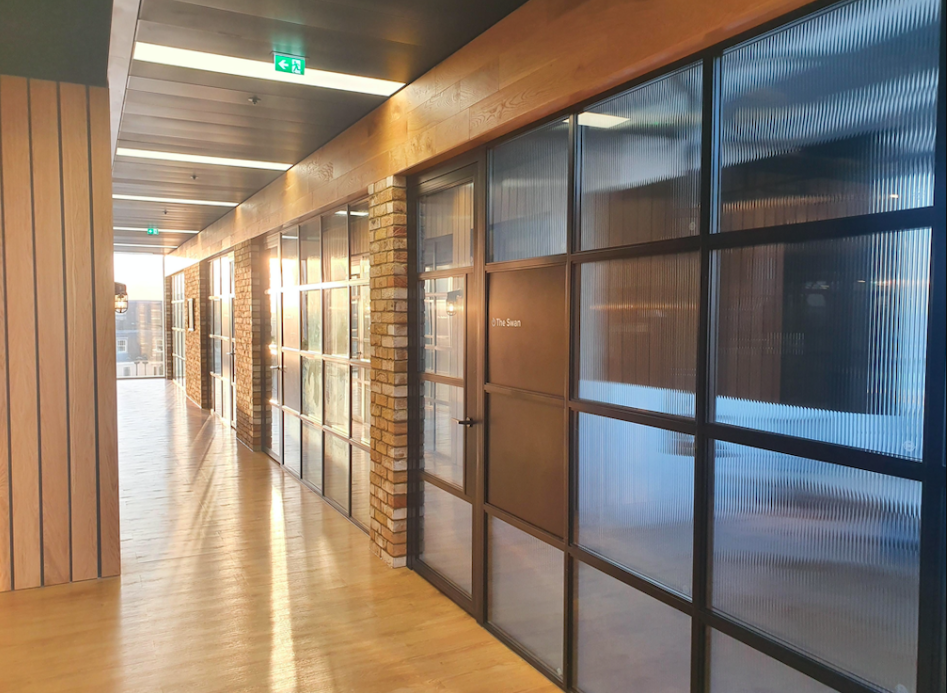

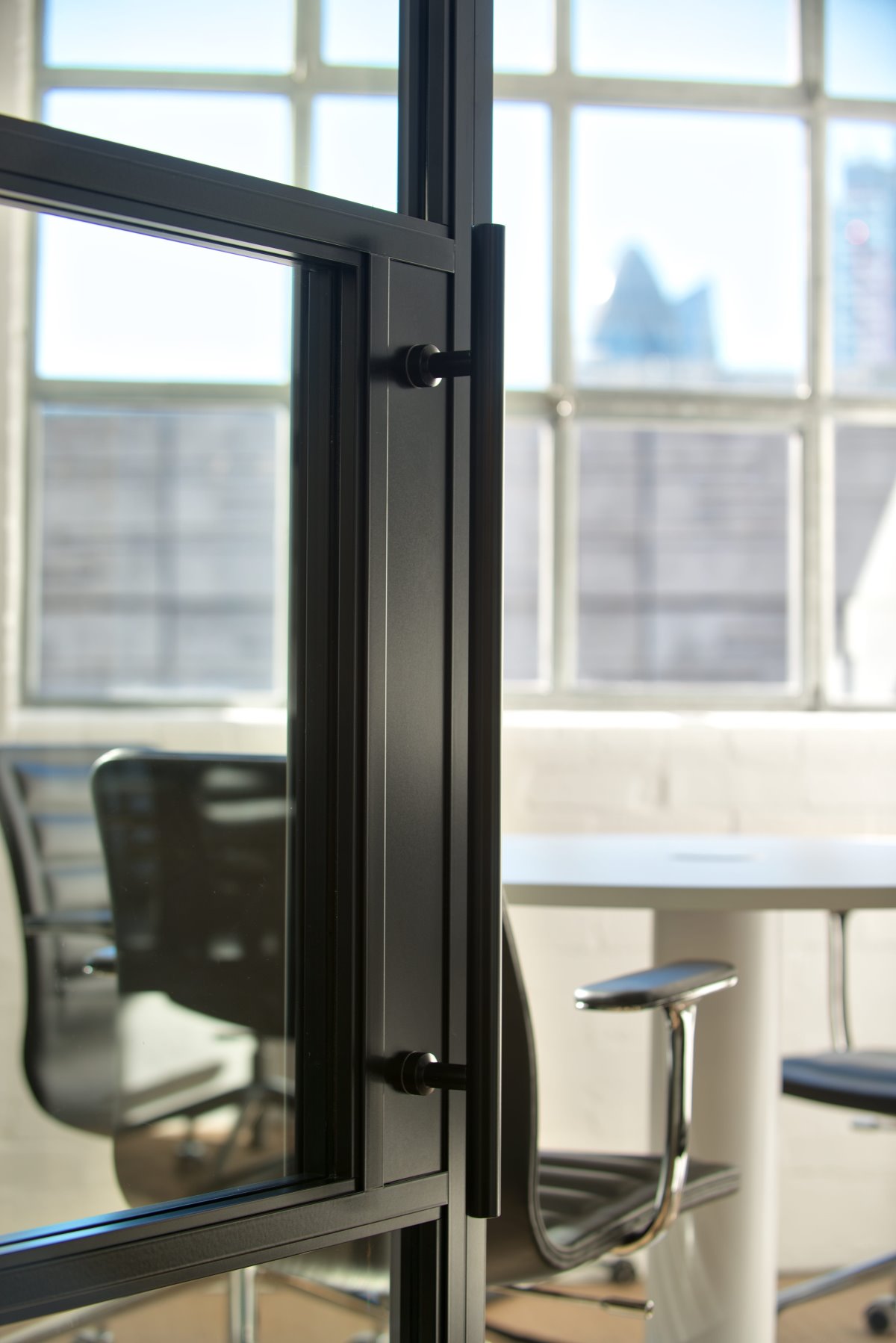

Our Kross Glaze systems allow designers to be creative with both glazing and panes, as well as being available with reeded glass. We offer infills for handles on the door leaf, and within the screen and door. This flexibility can be purely decorative, can serve a functional purpose in the case of tech panels for room booking systems and more.


The Kross Glaze system is available with options for both offset single and double glazing, achieving acoustic ratings of up to 41dB (Rw). This 54mm framed glazing system not only includes screens but has a unique 54mm rebated door designed to accommodate the same glazing chairs and beads, creating a flush aesthetic.

Our Kross Glaze door is available in single and double glazed options.

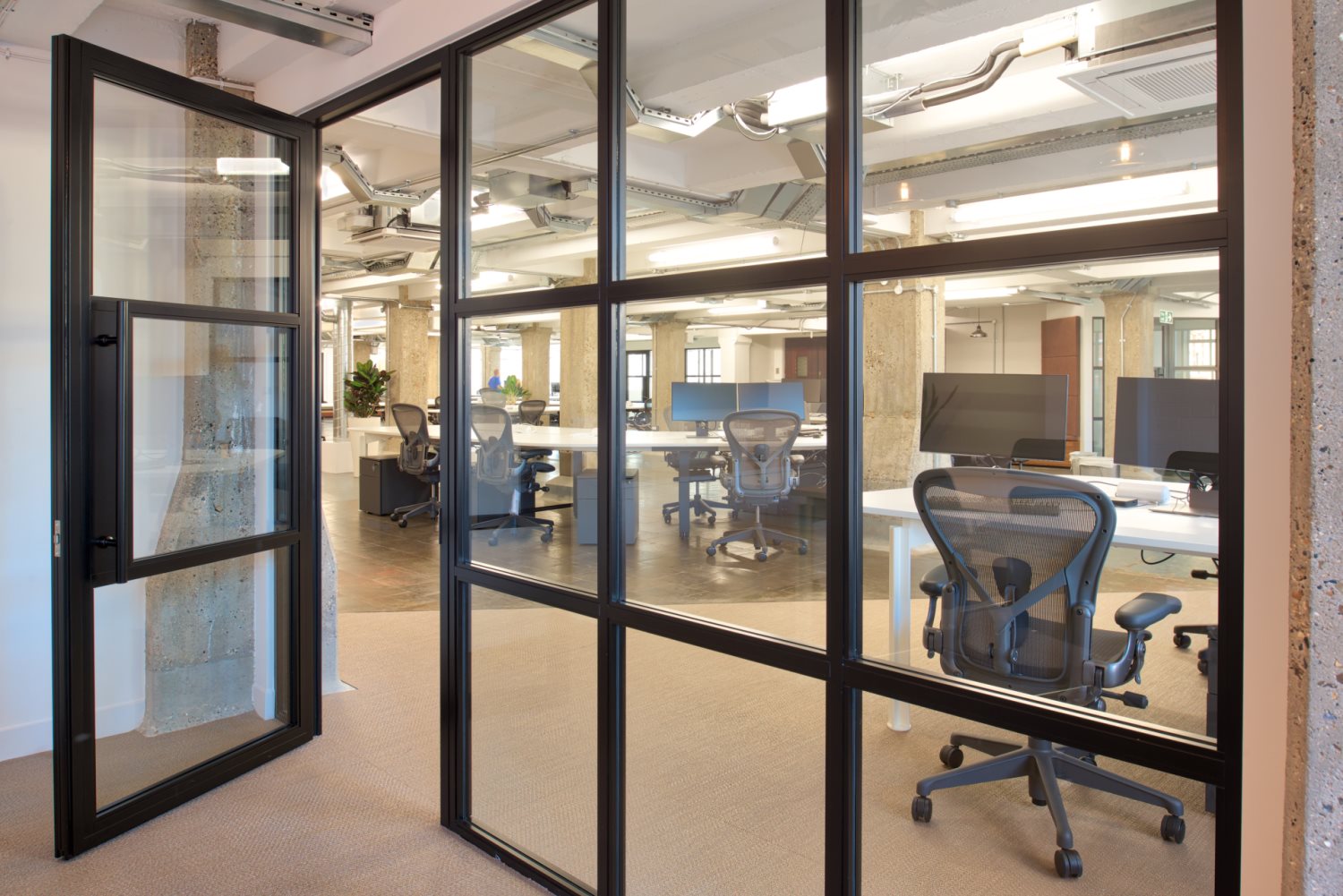

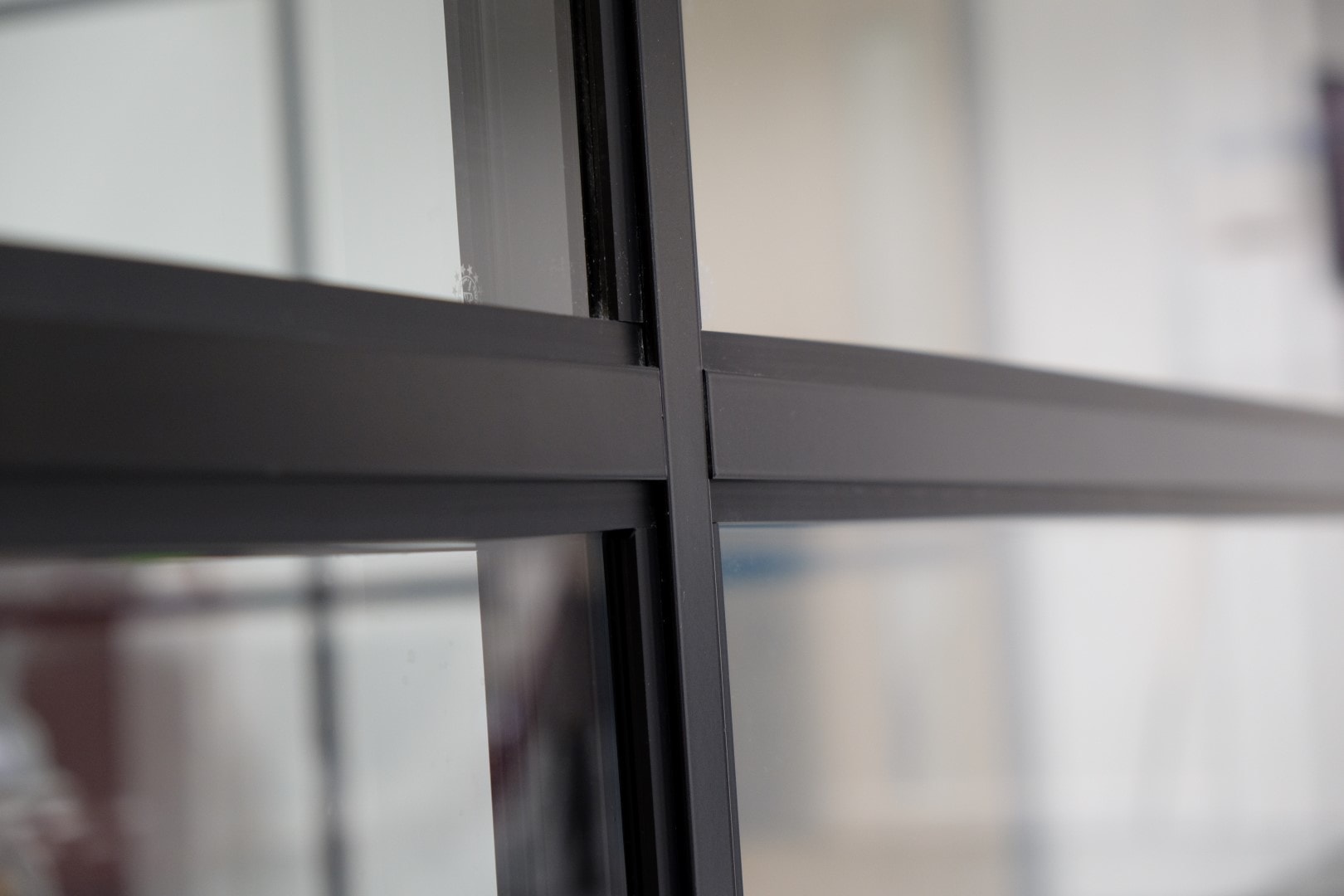

Kross Glaze doors are available with lift off hinges or offset pivots on floor springs. All doors within this system must be full height to allow for optimal continuation of the transoms and glazing from screen to door. Kross Glaze screens are constructed up to a maximum height of 3000mm with horizontal transoms to divide the glazing between the uprights; these can be configured as equal splits or staggered, allowing designers to be creative with their construction.

Aluminium components for the screen and door are powder coated using our standard colour options. All special colour options can be manufactured to any RAL or BS colour code, please ask for availability.

0dB (Rw)
Acoustic rating
Screen maximum height
Maximum module width

Kross Glaze 600 Partitioning at a Glance

Dimensions for screen:
Screen max. height – up to 3000mm
Min. pane height – 450mm
Min. pane width – 450mm*
Doors must always be full height

Fire ratings:

Single Glazed screens – up to 38dB (Rw)
Double Glazed screens – up to 41dB (Rw)
Single Glazed doors – up to 33dB (Rw)
Double Glazed doors – up to 36dB (Rw)

Light duty

Deflection head:

Door options:
Kross Glaze doors
Timber doors

Screen glass type options:
Single Glazed – 6.8, 10.8, 12.8mm Acoustic Lam
Double Glazed – 6.4 and 6.8mm Acoustic Lam.

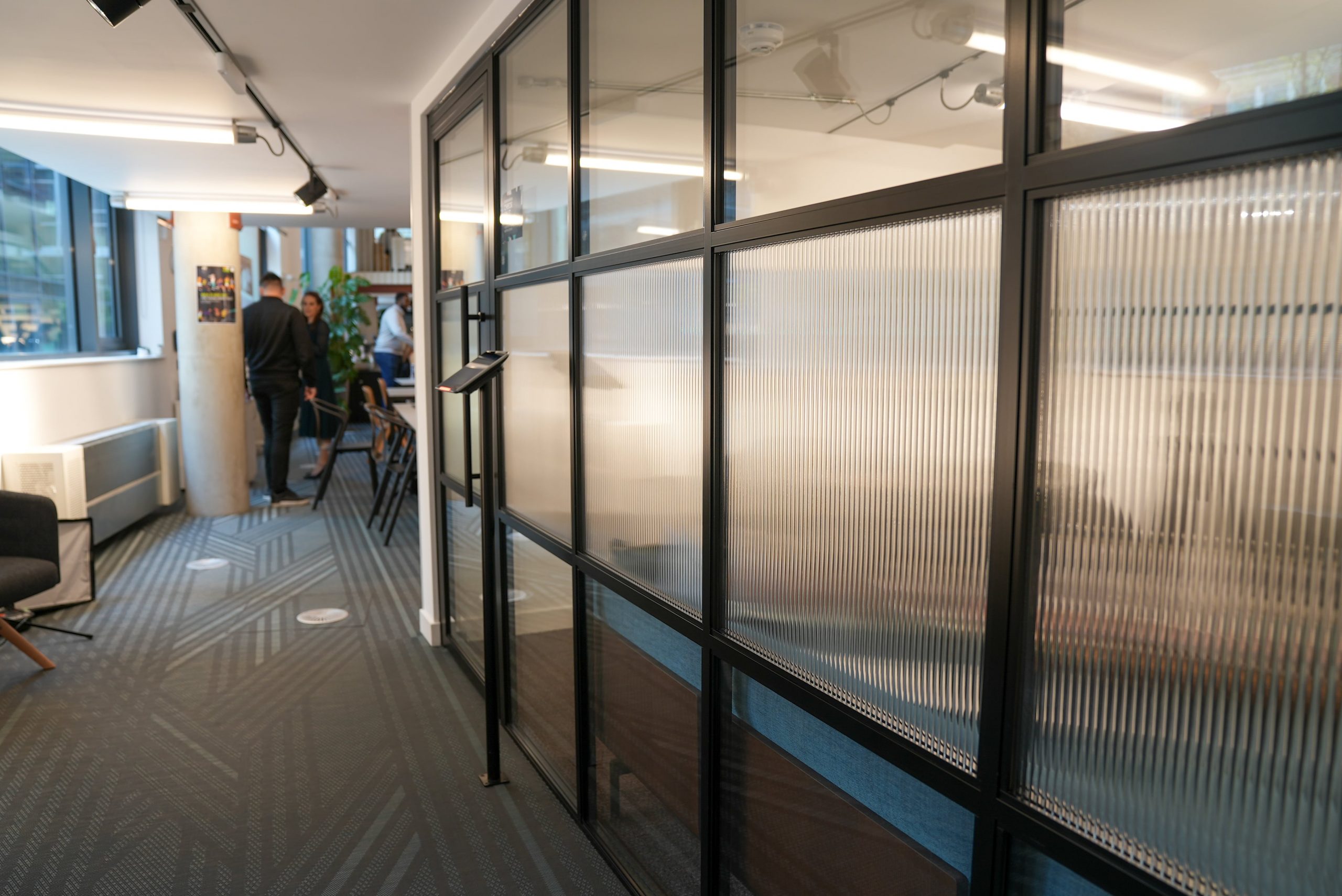

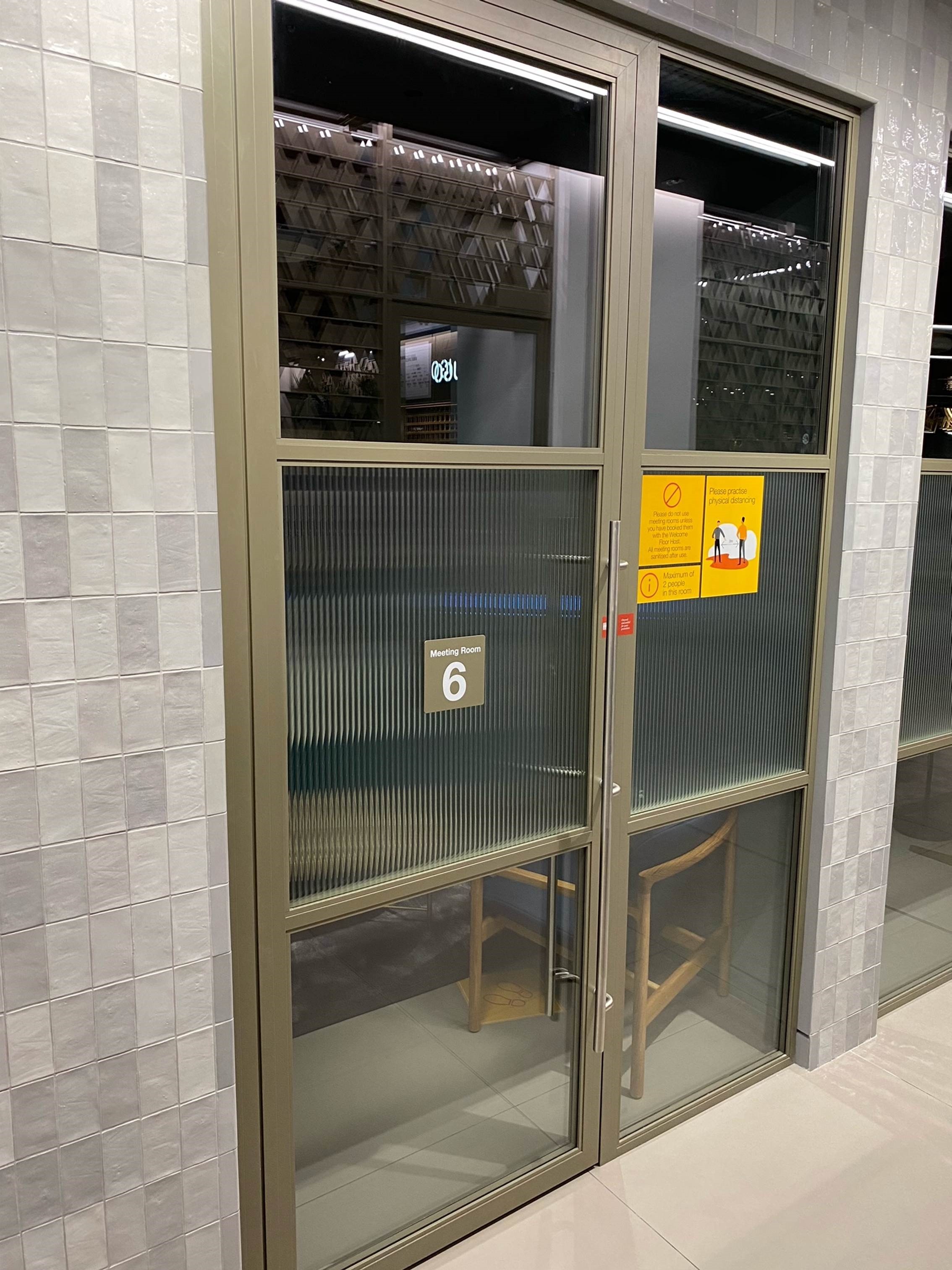

Reeded glass available on special request

Compatible with:

  • Blinds

  • Manifestations

  • Graphics

  • SwitchGlass

Paint / finishes:

  • Polyester powder coat

  • Satin anodised aluminium

  • Special anodised finish

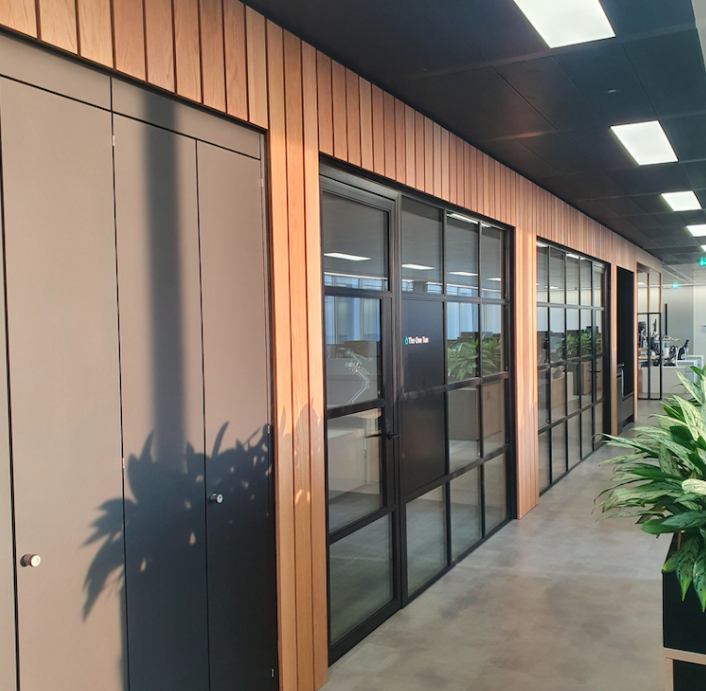

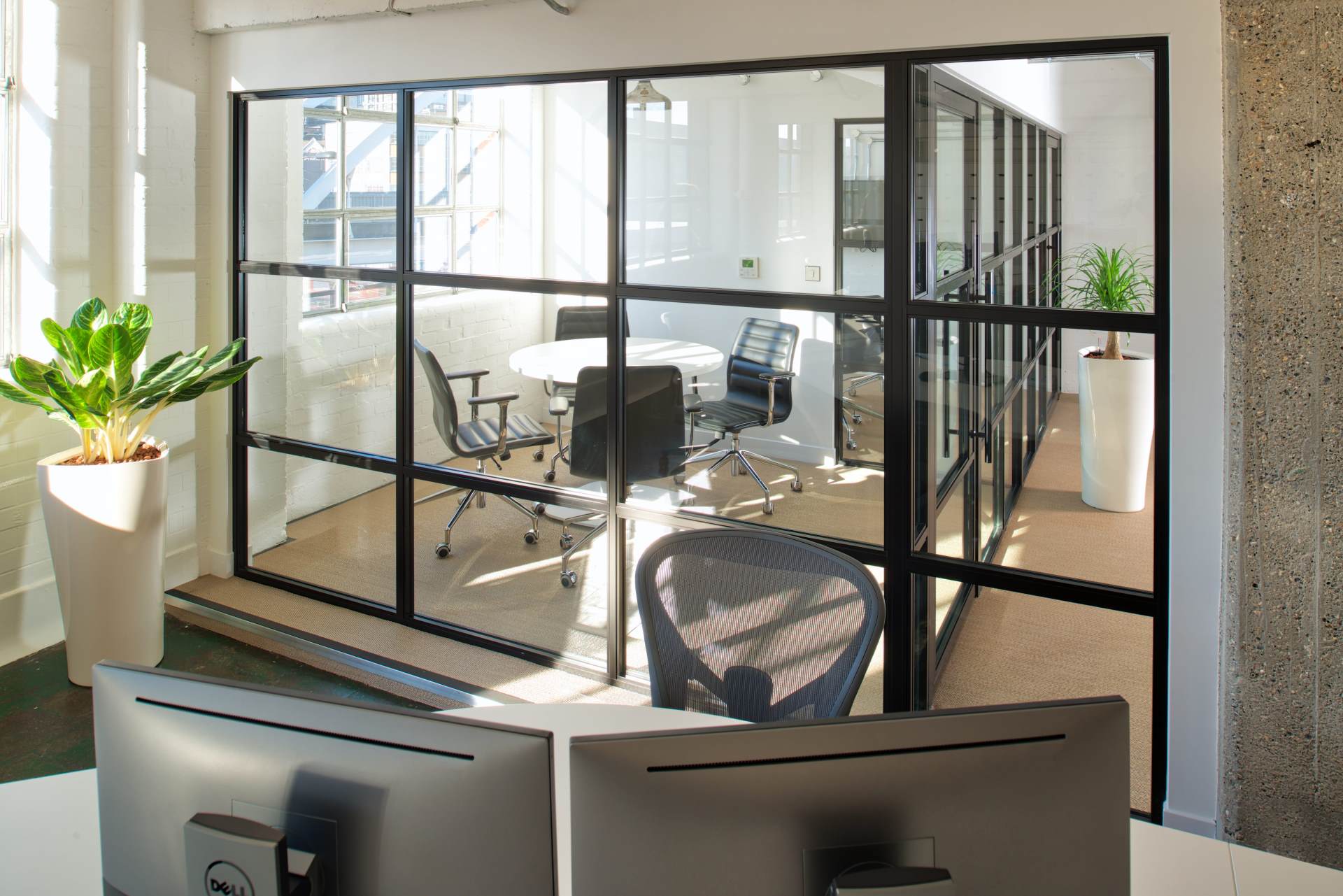

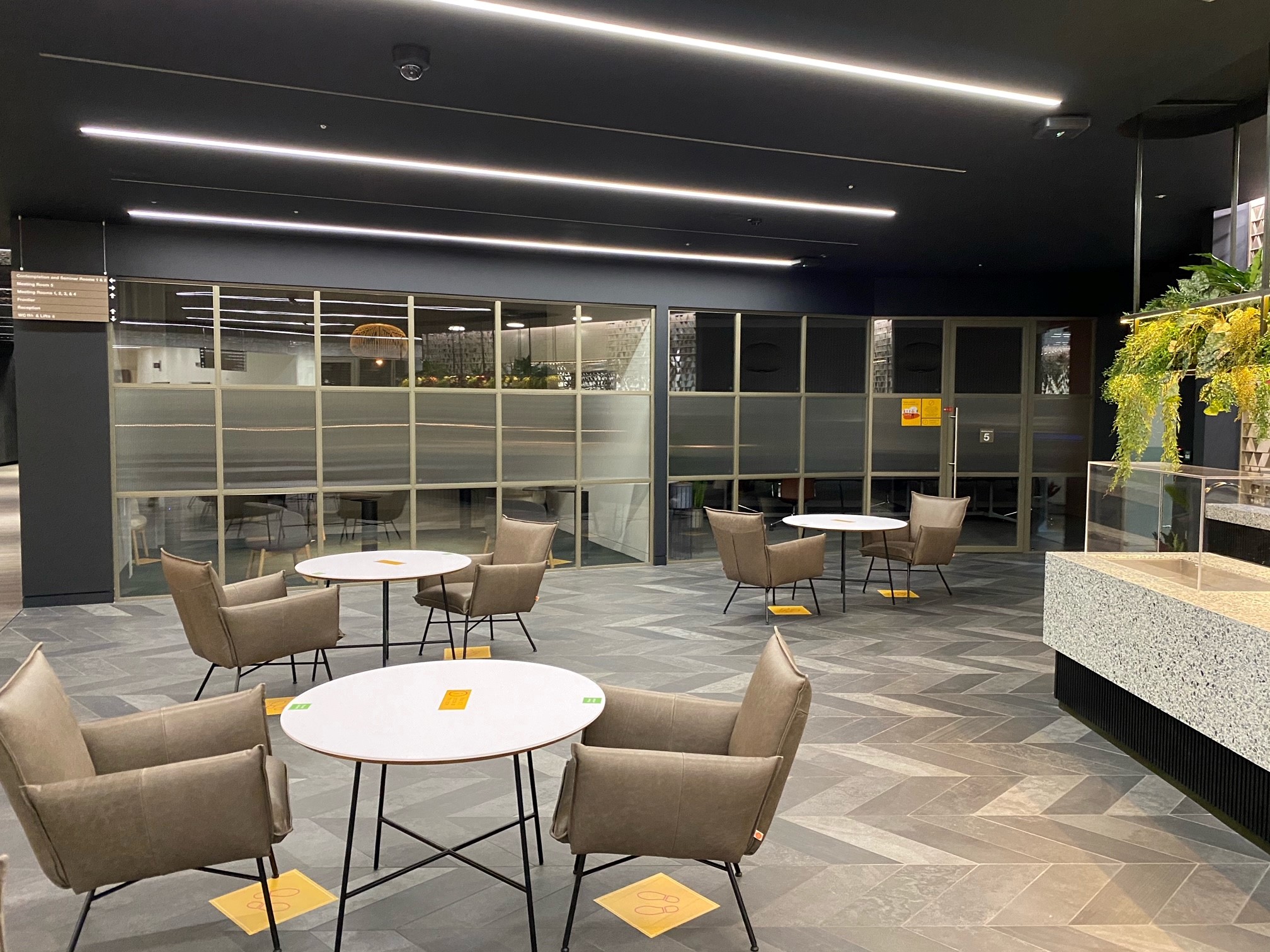

Kross Glaze 600 Gallery
