Sonik 70S Slimline Sliding Single Glazed Acoustic Door

Sonik 70S is Komfort’s 28mm offset or pocket sliding acoustic glazed door, designed to be integrated within Komfort’s Polar 30 and Polar 100 partitioning systems and for the ease of installation and future product maintenance. Ensuring acoustic insulation is maintained by an automatic drop-down seal and specially designed glazing gaskets. The top hung doors can be specified as a single or double sets with soft-close functionality as standard.

0dB (Rw)
Acoustic rating
0mm
Maximum height
0mm
Maximum door width

Sonik 70S Door at a Glance

Dimensions:
Maximum height – up to 3000mm
Maximum width – *up to 1300mm

Fire ratings:
N/A

Acoustics:
Up to 35dB (Rw)

Deflection head:
No deflection

Door type options:
Single or double door set

Profile Dimensions:
70x28mm

Max. Door Weight:
Up to 130 kg (no/m2) including ironmongery

Compatible with:

  • Blinds

  • Manifestations

  • Graphics

  • SwitchGlass

  • Kross Glaze Bars

  • Integration with Polar

Paint / finishes:

  • Polyester powder coat

  • Satin anodised aluminium

  • Special anodised finish

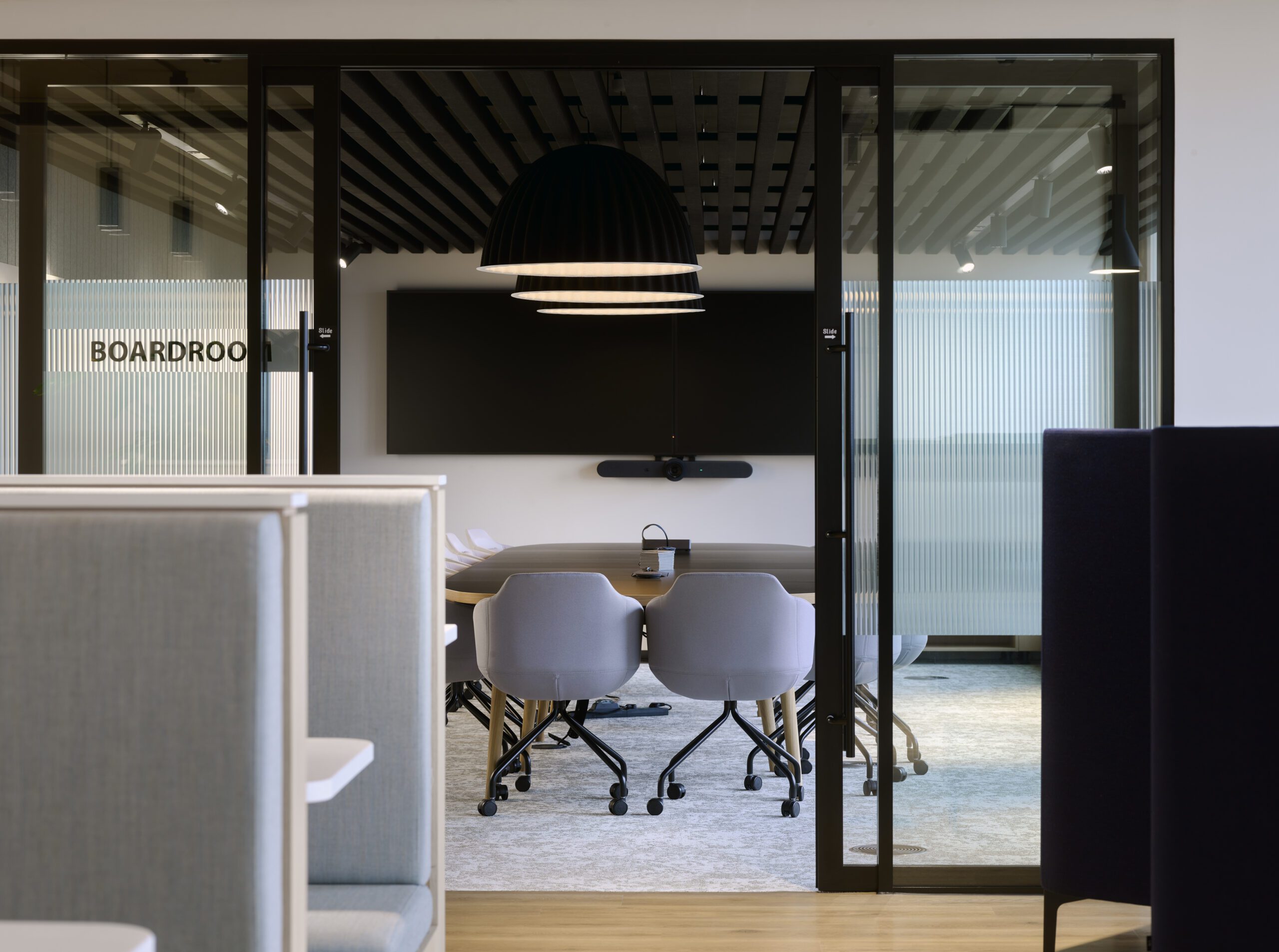

Sonik Acoustic Glass Door Gallery
