Komfire 75 Fire Rated Office Partitioning System

Komfire is Komfort’s steel stud and plasterboard construction system, surrounded by an aluminium framework. Durable and simple to install and maintain, this system offers a distinct angular style and incorporates acoustic and fire performance.

Komfire 75 is Komfort’s 75mm square edge framed partition system which is compatible with Komfort’s Sonik, glazed and timber door. This system is available in a solid, single and double glazed structure with pre-assembled window frame options.

Komfire 75 sets the standard of partition form and function, achieving acoustic ratings of up to 43dB (Rw) and a fire rating of up to 30/0 for the glazed system.

Komfire has three variations: Komfire 75, 100 and 100+.

Komfire 75 Partitioning at a Glance

Dimensions:
Solid height – up to 4300mm
Glazed height – up to 3000mm

Fire ratings:
Solid – up to 30/30
Glazed – up to 30/0

Acoustics:
Solid – up to 43dB(Rw),
Single glazed – up to 36dB (Rw)
Double glazed – up to 41dB (Rw)

Structure:
Solid – up to medium duty
Glazed – up to severe duty

Door options:
Timber doors
Sonik glazed doors
Single glazed doors

Doorframe options:
Aluminium doorframe
Timber doorframe

Glass type options:
Toughened – 6mm
Laminated – 6.4mm
Acoustic – 6.8mm
Fire – 6mm

Weight
(inc. nominal head & base)*:

Solid – up to 24 kg/m2
Glazed – up to 39 kg/m2

Compatible with:

  • Blinds

  • Manifestations

  • Graphics

  • SwitchGlass

Paint / finishes:

  • Polyester powder coat

  • Satin anodised aluminium

  • Special anodised finish

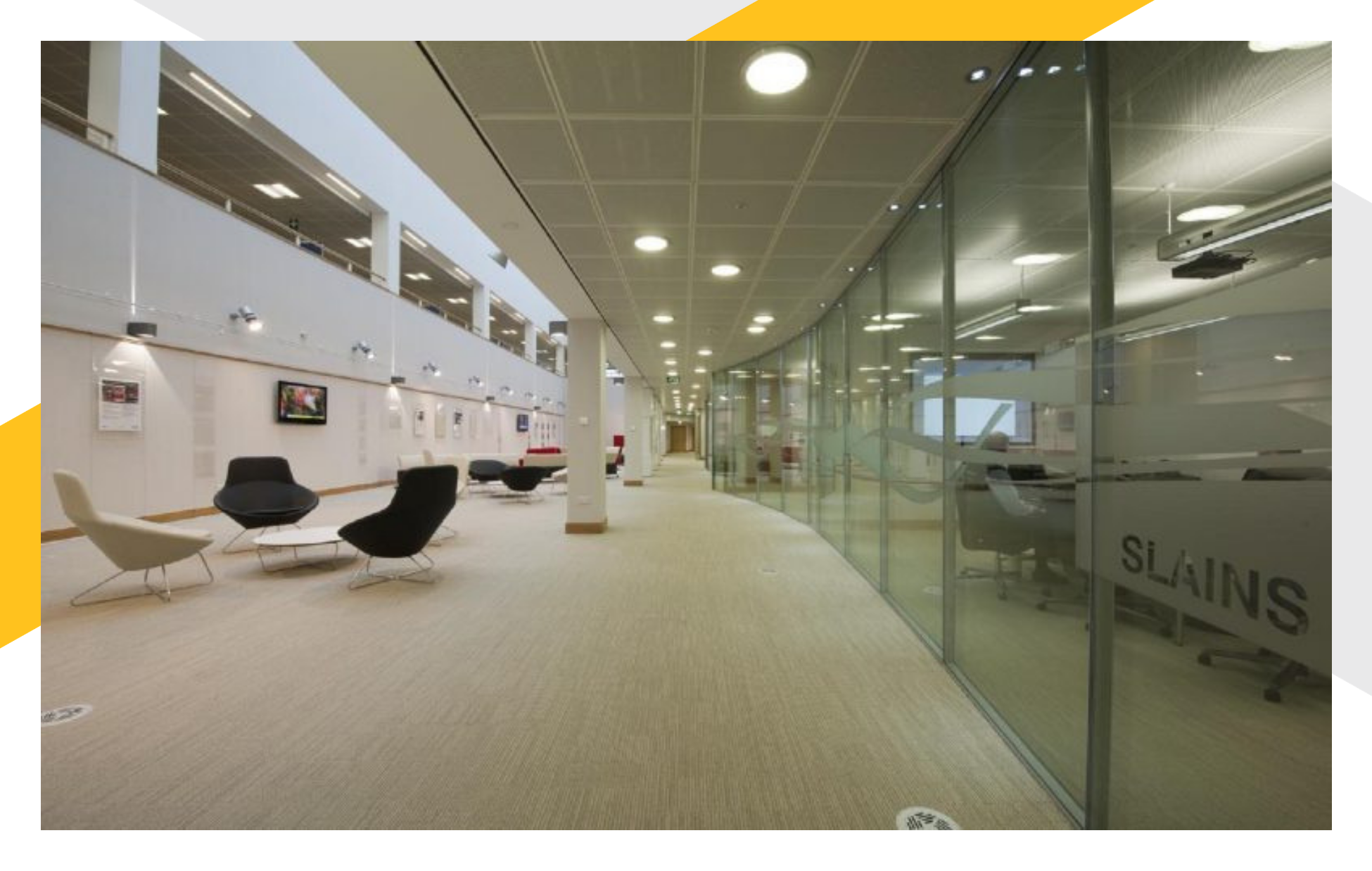

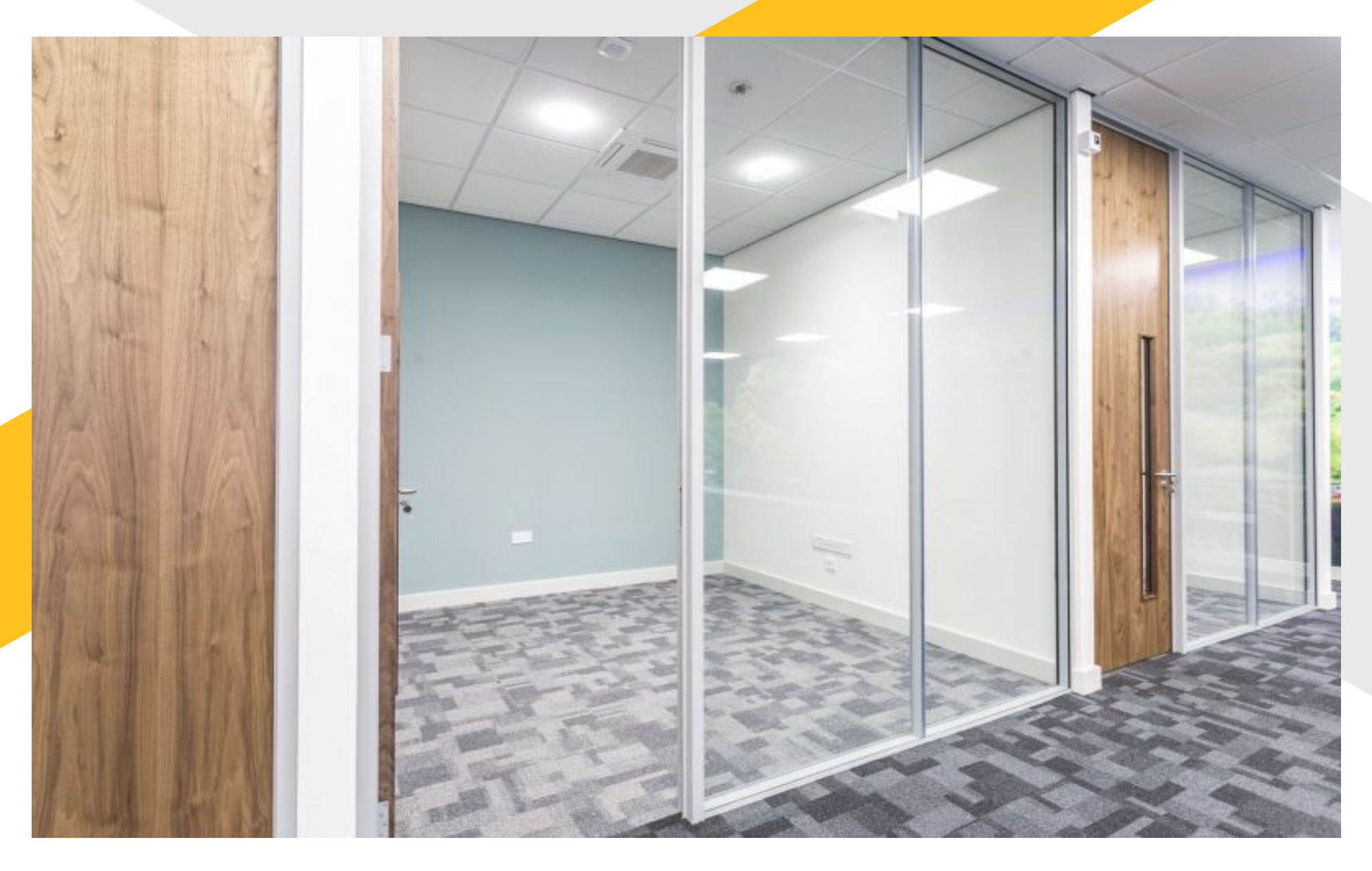

Komfire 75 Gallery

Case Studies Using Komfire 75 Partitioning
