Komfire 100 Fire Rated Partitioning Systems
Komfire is a steel stud and plasterboard construction surrounded by an aluminium framework, which offers a distinct angular style and incorporates acoustic performance.
System specifications
Komfire 100
Komfire 100 is a solid and glazed partitioning system, offering a single or double boarded steel stud system surrounded by aluminium trackwork with pre-assembled single or double glazed aluminium window frames.
Ideal for any busy environment, this system allows for the creation of spaces such as private meeting rooms, boardrooms, quiet areas and more, allowing an abundance of light to fill the space to naturally brighten any room.
Komfire 100FR
Komfire 100FR offers 100mm solid modules either single boarded with 75mm studs to 30/0 or 30/30 or doubled boarded with 50mm steel studs rated to 60/0 or 60/60 depending on configuration and up to 50dB (Rw) acoustic performance.
Glazed modules are available as offset single glazed Komfort 6mm Fire Glass or alternatively as a doubled glazed configuration with Komfort 6mm Fire Glass and 6.4mm laminated glass rated to 30/0. All glazed modules have steel stud mullions.
Komfire 100 Partitioning at a Glance
Dimensions:
Solid height – up to 4200mm
Doorset height – up to 3000mm
Acoustics:
Solid – up to 52dB (Rw)
Glazed – up to 42dB (Rw)
Door options:
10-12mm Glass doors
44mm Timber doors
44mm Sonik doors
Structure:
Up to Medium Duty
Glass type options:
Single glazed 6.4mm Laminated or 6.8mm Acoustic Laminated
Double glazed 6.4mm Laminated & 6.8mm Acoustic Laminated
Solid options:
Single or double boarded 12.5mm plasterboard
Single or double boarded 12.5mm SoundBloc
Compatible with:
Paint / finishes:
Komfire 100FR Partitioning at a Glance
Dimensions:
Solid height – up to 4000mm
Glazed height – up to 3000mm
Doorset height – up to 3000mm
Acoustics:
Solid – up to 50dB (Rw)
Glazed – up to 41dB (Rw)
Structural Performance:
Heavy Duty up to 3000mm
Fire Performance:
Solid up to 60/60*
Glazed up to 30/0
Doorset options:
44mm Fire Rated Timber Doors
Glass type options:
Offset Single Glazed Komfort 6mm Fire Glass
Double Glazed Komfort 6mm Fire Glass & 6.4mm Laminated
Solid options:
Single Boarded 12.5mm Plasterboard with 75mm Stud
Double Boarded 12.5mm Plasterboard with 50mm Stud
Compatible with:
Paint / finishes:

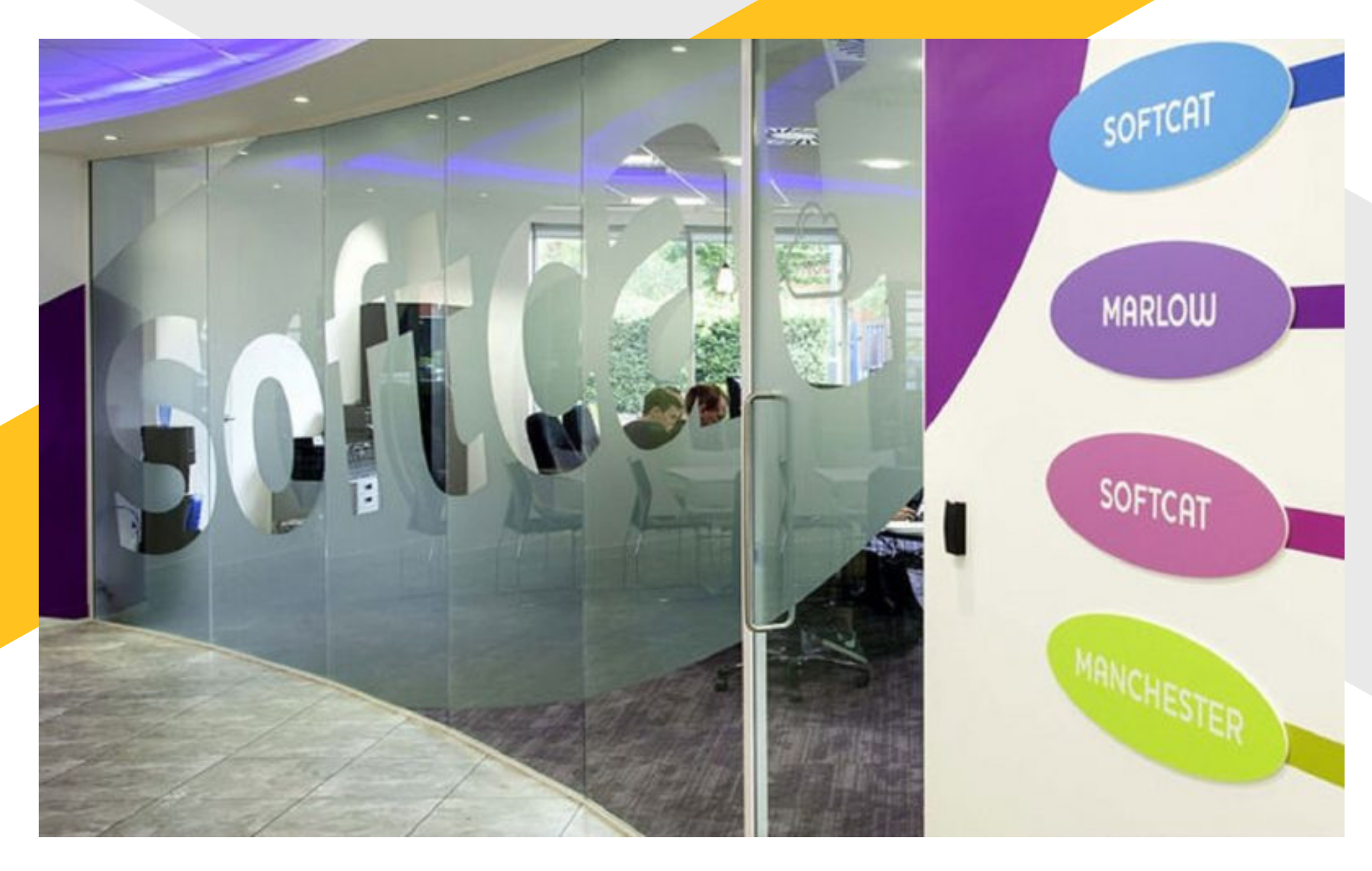

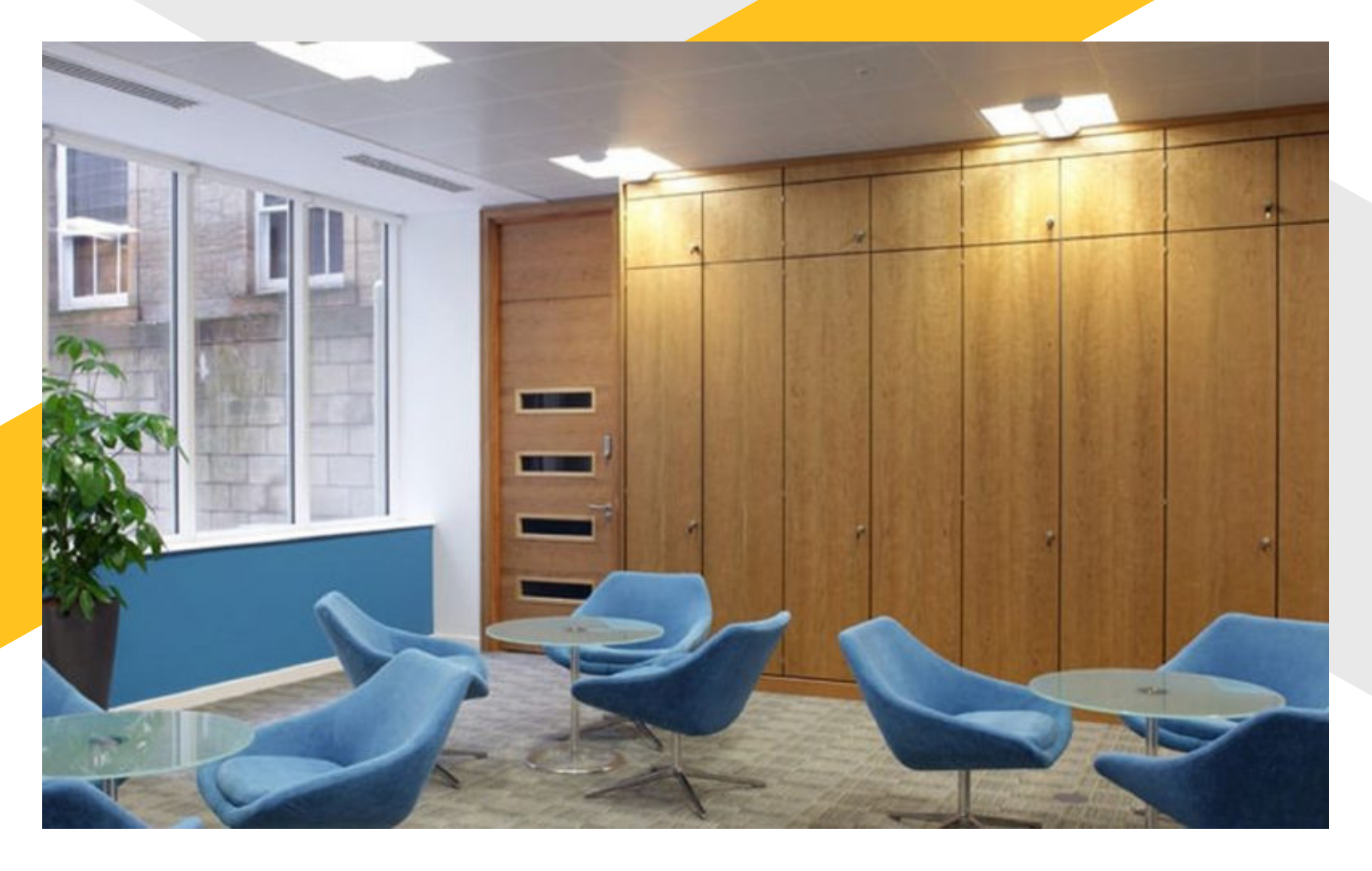

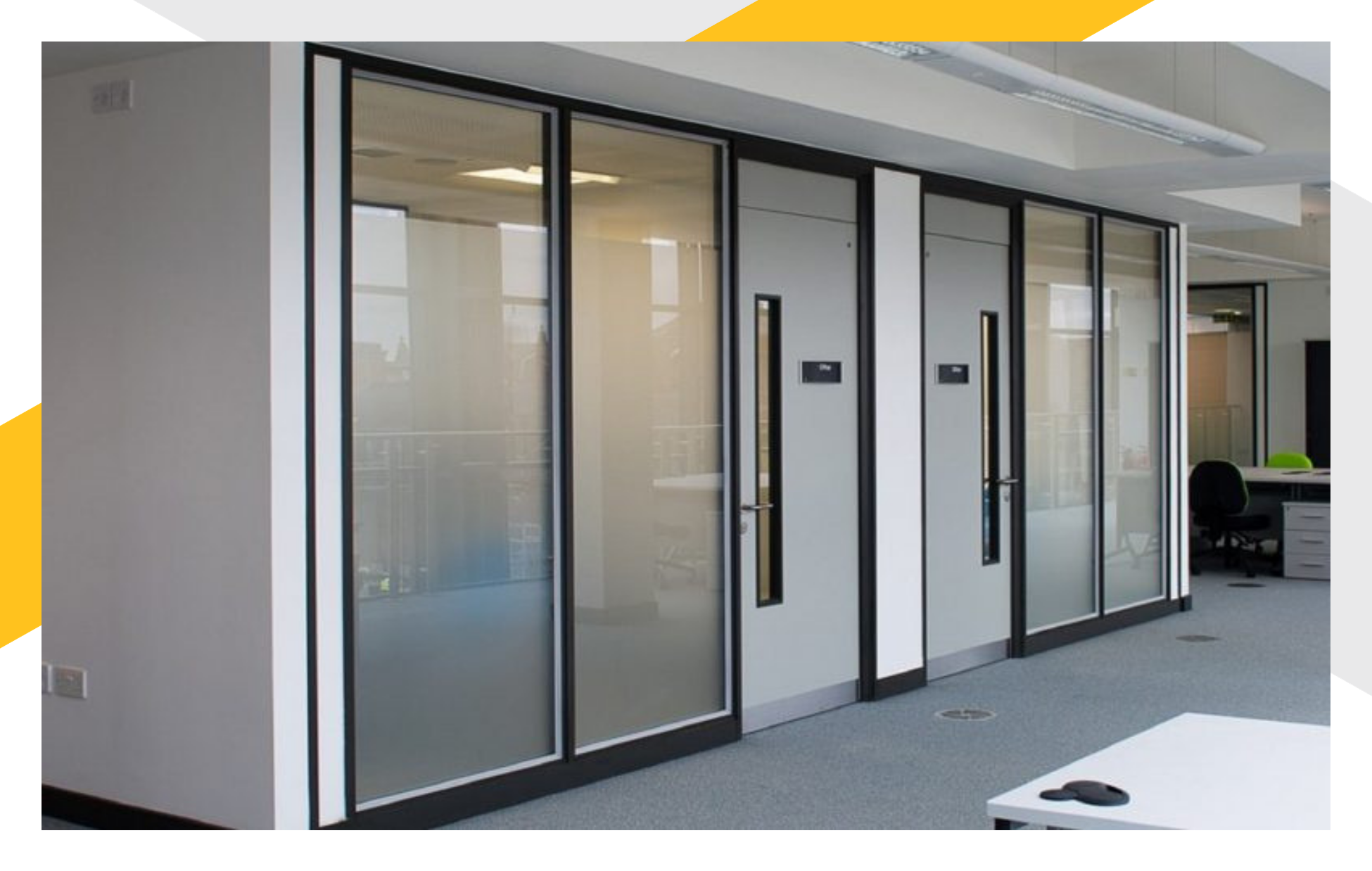

Komfire 100 Gallery
